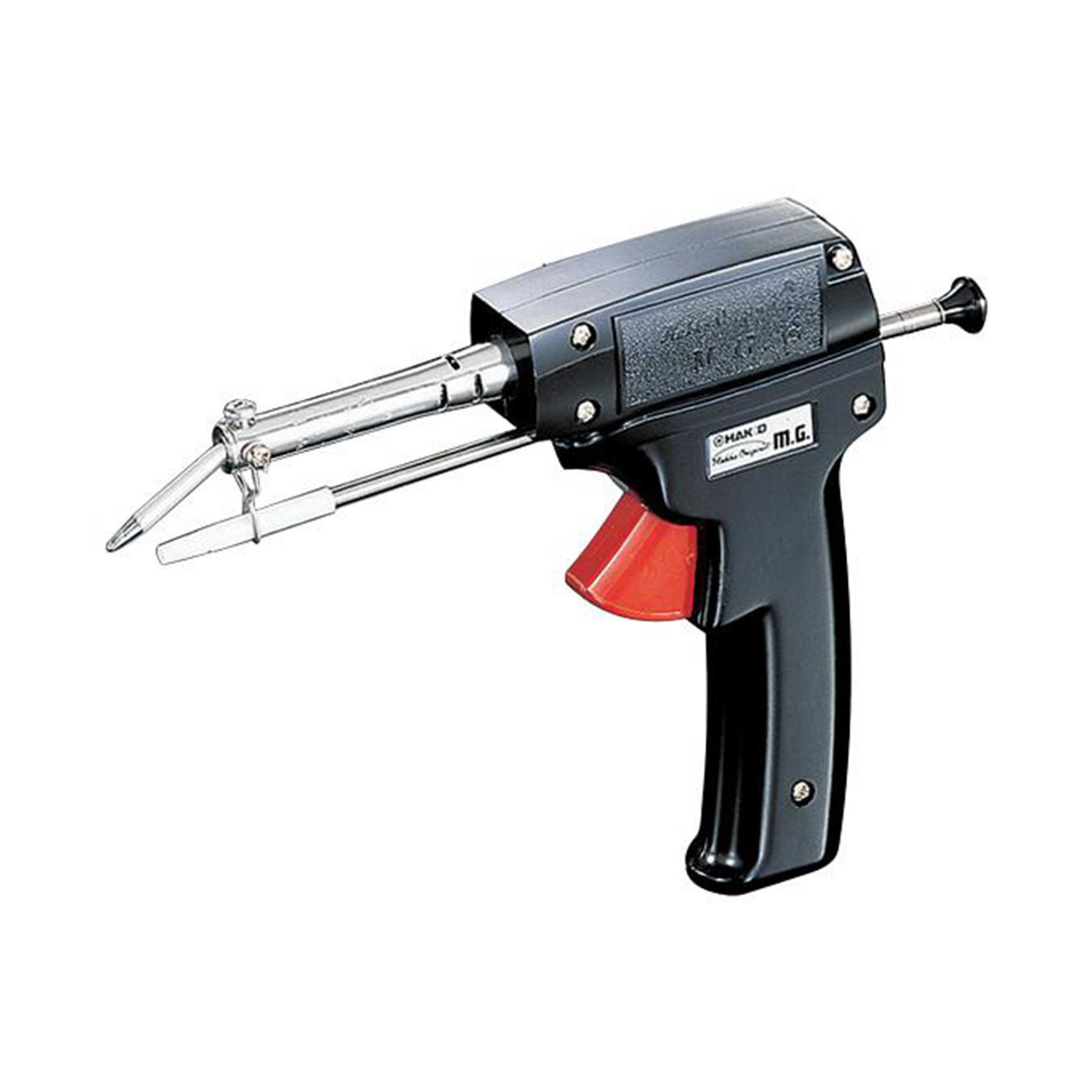

583GP-V23 Soldering Gun 230V [Discontinued]

583GP-V23 Soldering Gun 230V [Discontinued]

  • Soldering iron with manual solder feed (gun type) that can work without a temperature control unit to permit one-handed operation
  • Light-weight body allows extended soldering work without unnecessary fatigue
  • Built-in solder feed mechanism in the body allows users to make fine adjustments
  • Soldering tip: 582-T-4 Shape-B

The amount of solder wire feed is adjustable with a range of approximately 3mm (min.) to 8mm (max.).
The amount of solder wire feed can be adjusted only by loosening or tightening the screw mounted on the solder feed adjuster.

  • Power consumption: 40W
  • Heating element: Nichrome heater
  • Standard tip: Φ4 mm (No 582-T-4)
  • Dimensions: 197 x 149 mm
  • Weight: 266g
  • Packing list: Unit, Guide nozzle, Instruction manual

Soldering tip: 582-T-4 Shape-B

Iron Holder: 607 (with cleaning sponge)

Heating Element:

  • 583-H: 100V (not available in SEA)
  • 583-H-V22: 220V (not available in SEA)
  • 583-H-V23: 230V

Guide Nozzle:

  • 582-N-2.3 (2.3mm)
  • 582-N-1.6 (1.6mm)
