Hakko Soldering Tip Cleaning

In electronics manufacturing and repair, the soldering tip is a key instrument. Neglecting tip maintenance is one of the leading causes of production line or product defects and inflated operating costs.

Why clean soldering tips?

Oxidation Barriers: Modern lead-free solders require higher operational temperatures, which rapidly accelerates oxidation. This creates a black, non-wetting layer of iron oxide on the tip, acting as an insulator that blocks heat transfer to the PCB joint.
Cold Solder Joints: When oxide scales block heat flow, operators often overcompensate by increasing the station temperature. This creates a vicious cycle: high heat > formation of oxides > higher heat used. High heat thermal-shocks the board, degrades components, and causes weak, brittle cold joints.
Maximizing ROI: Soldering tips are high-consumption assets. Implementing a strict cleaning protocol using premium accessories drastically extends tip lifecycles, maintaining line uptime and directly lowering your factory's consumables budget.

Types of tip cleaning tools

Core Hakko Solution	Primary Function	Operational Advantage
Hakko 599B Brass Sponge	Suitable for daily, repeated cleaning. Specially formulated soft brass removes excess solder and surface debris without thermal shock or scratches.	Waterless cleaning preserves tip temperature; leaves a thin solder film to prevent instant oxidation.

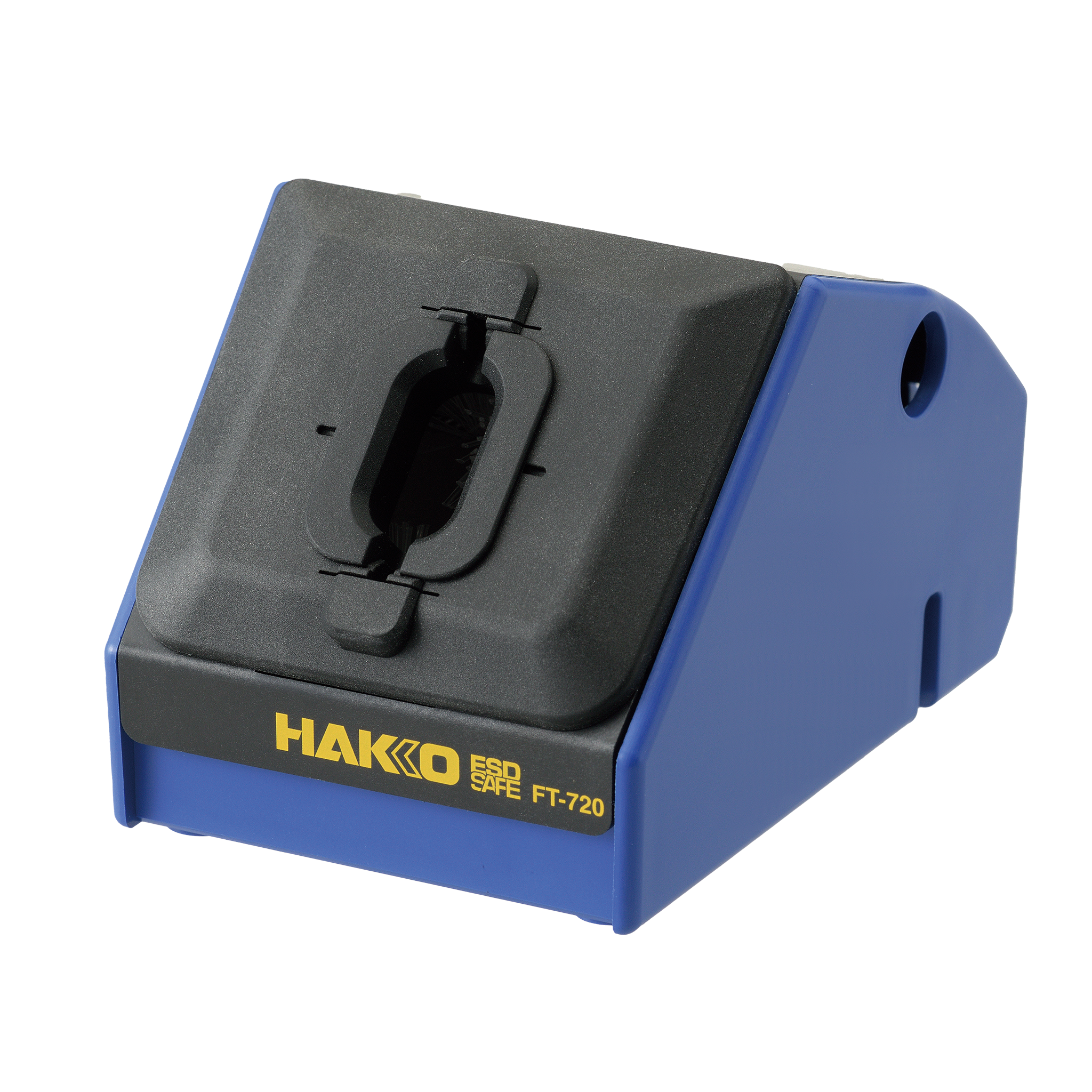

Hakko FT-720 Automatic Tip Cleaner	Designed for instant, heavy cleaning. Rapidly scrubs heavy oxide layers via rotating dual-brush modules.	Fully automated, sensor-driven operation. Cleans tips in under 2 seconds without dropping tip temperature.
Hakko FS-100 Chemical Paste	To supplement cleaning and restore tip surfaces. Resurfaces severely oxidized, blackened tips that no longer wet.	Lead-free, flux-infused tinning paste. Restores optimal heat transfer to "dead" tips without harsh acids.

Should I use a brass sponge or traditional wet sponge for soldering tip cleaning?

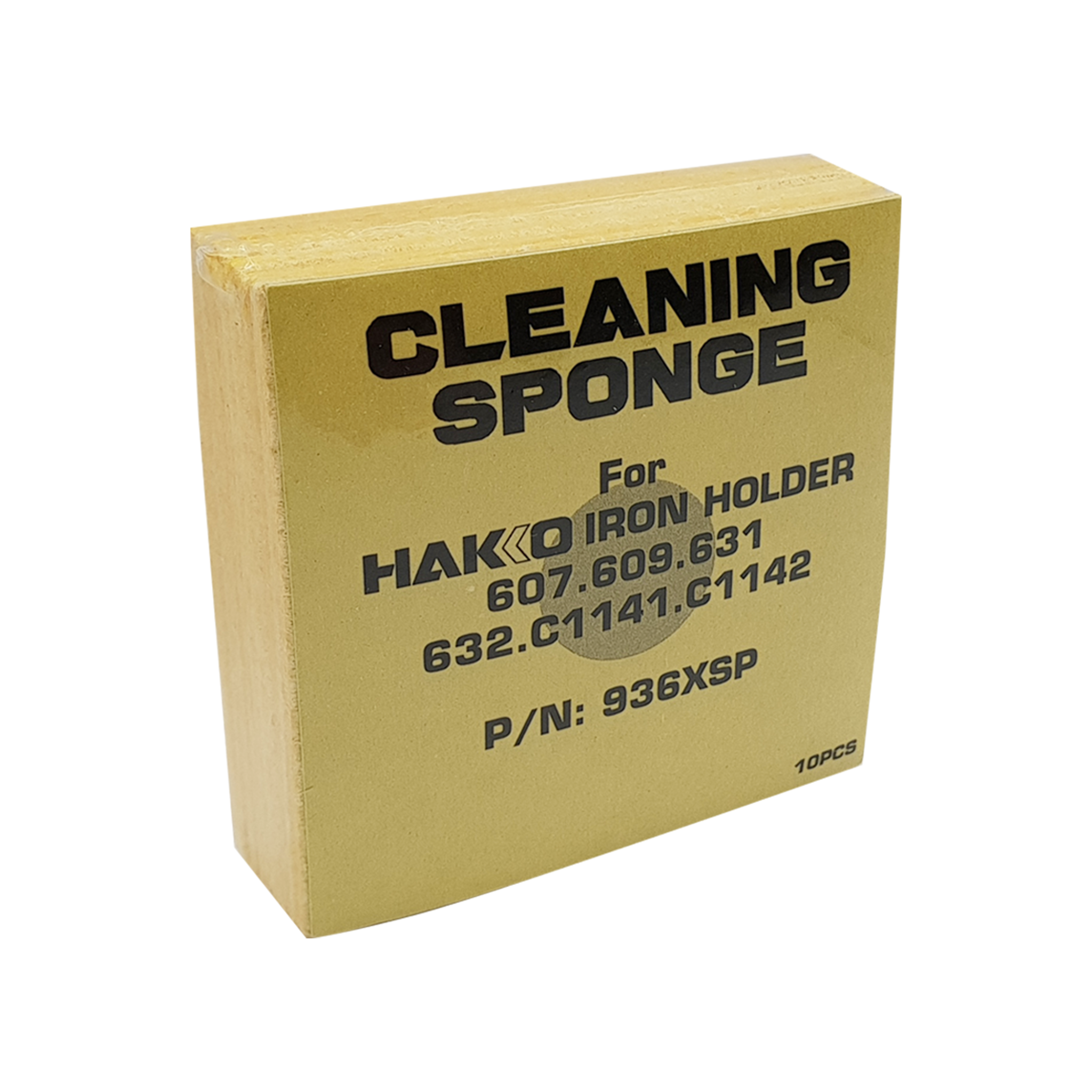

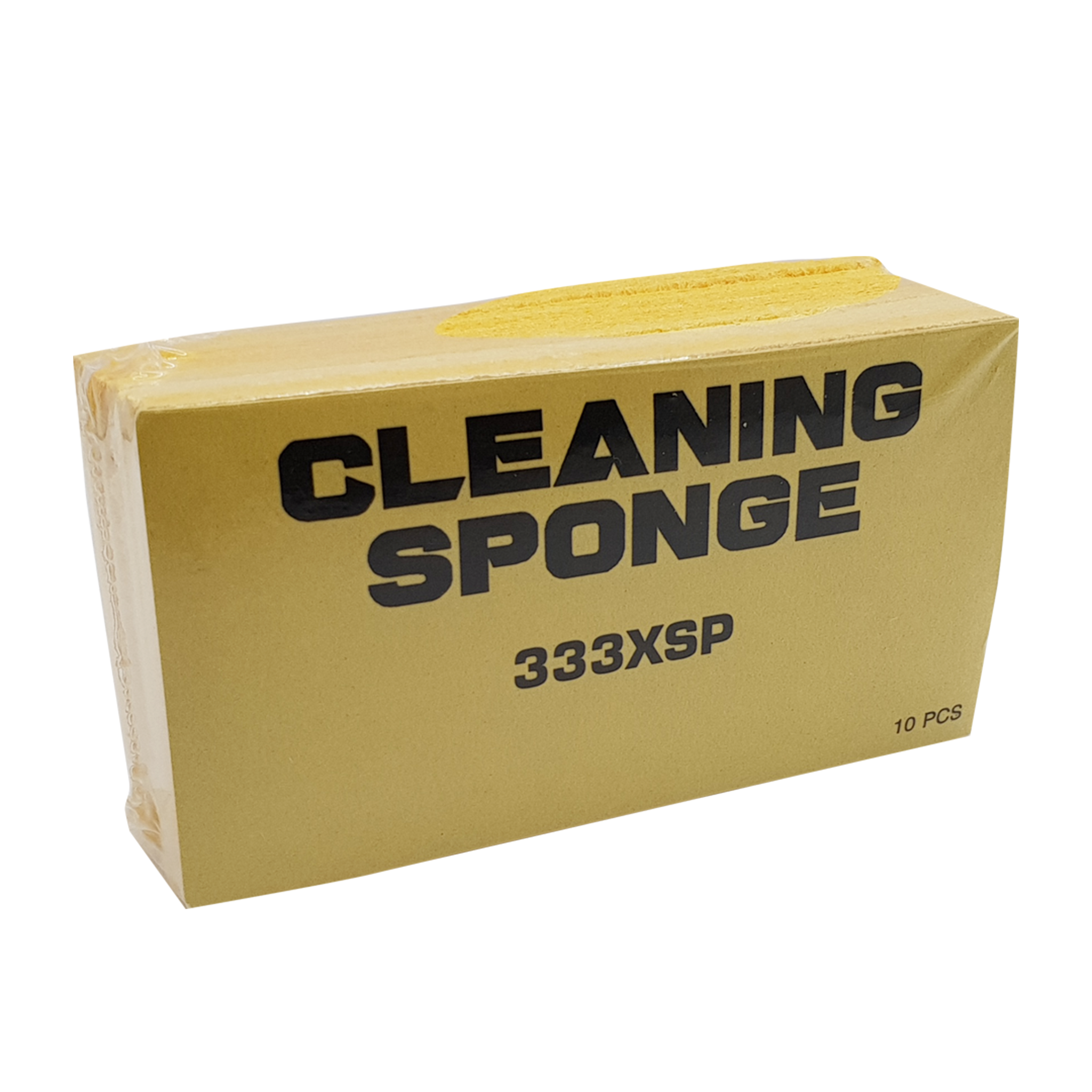

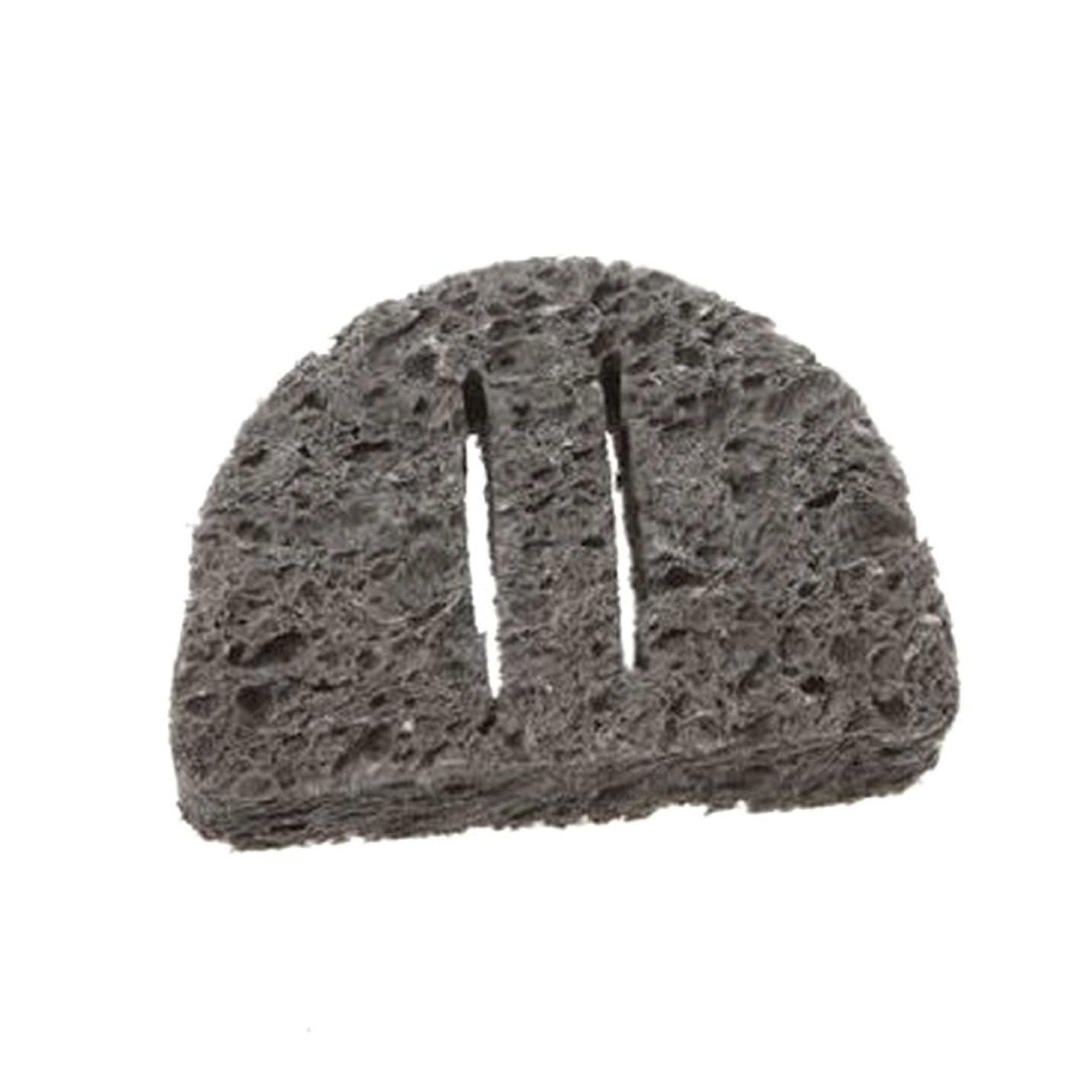

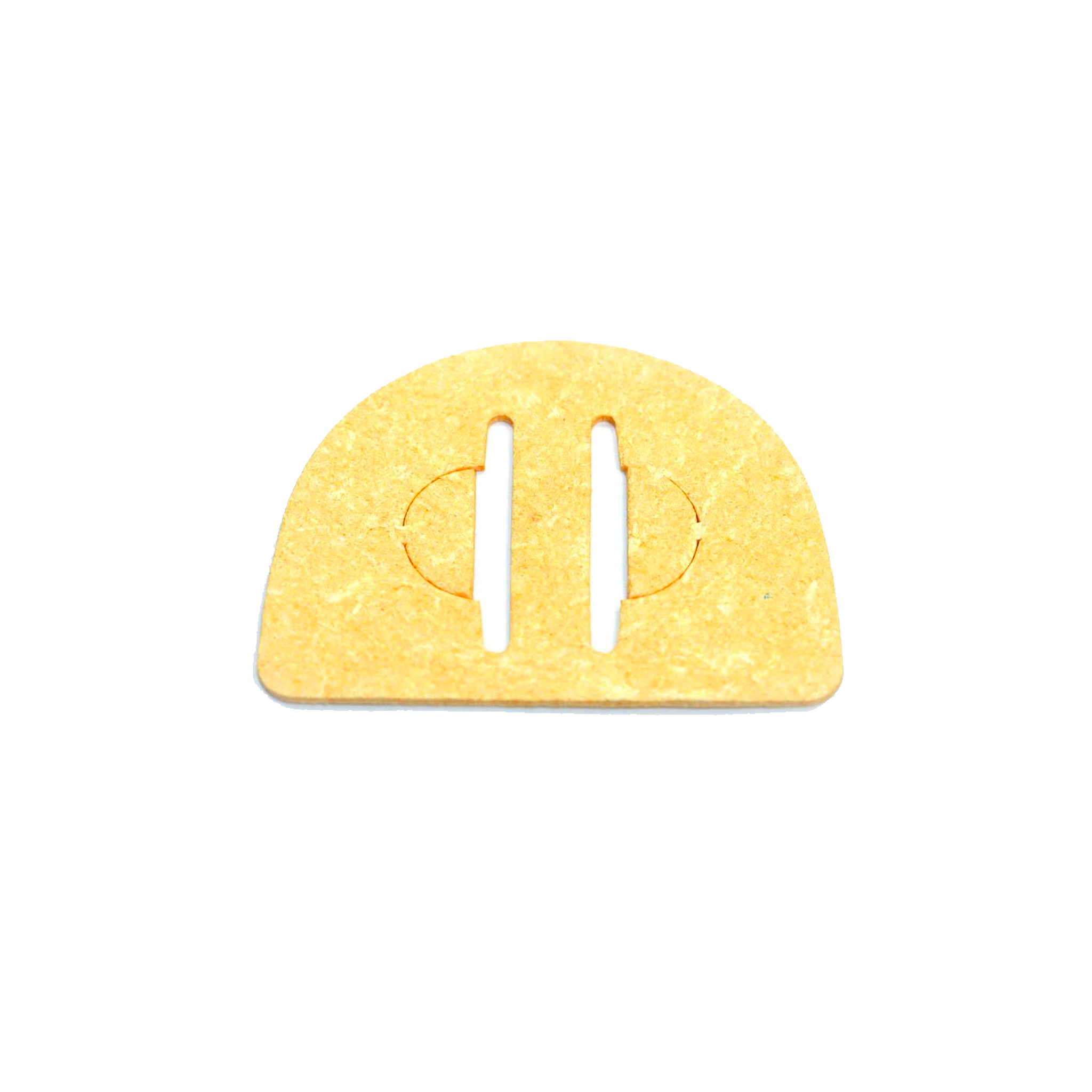

Traditional Cellulose Tip Cleaning Sponge

Cellulose sponges have been the go-to tool for tip cleaning due to its affordable, quick and easy method of cleaning soldering tips. It is also considered to be less abrasive than regular brass sponges. However, cleaning using a wet or damp sponge can cause thermal shock: the water rapidly drops the tip's temperature every time it is wiped. This constant, extreme temperature cycling causes microscopic cracks in the tip's iron plating, drastically shortening its lifespan.

With a sponge, the user is also required to sufficiently, but not overly, wet the sponge prior to use, which may seem as troublesome to some.

Hakko 599B Brass Tip Cleaning Sponge

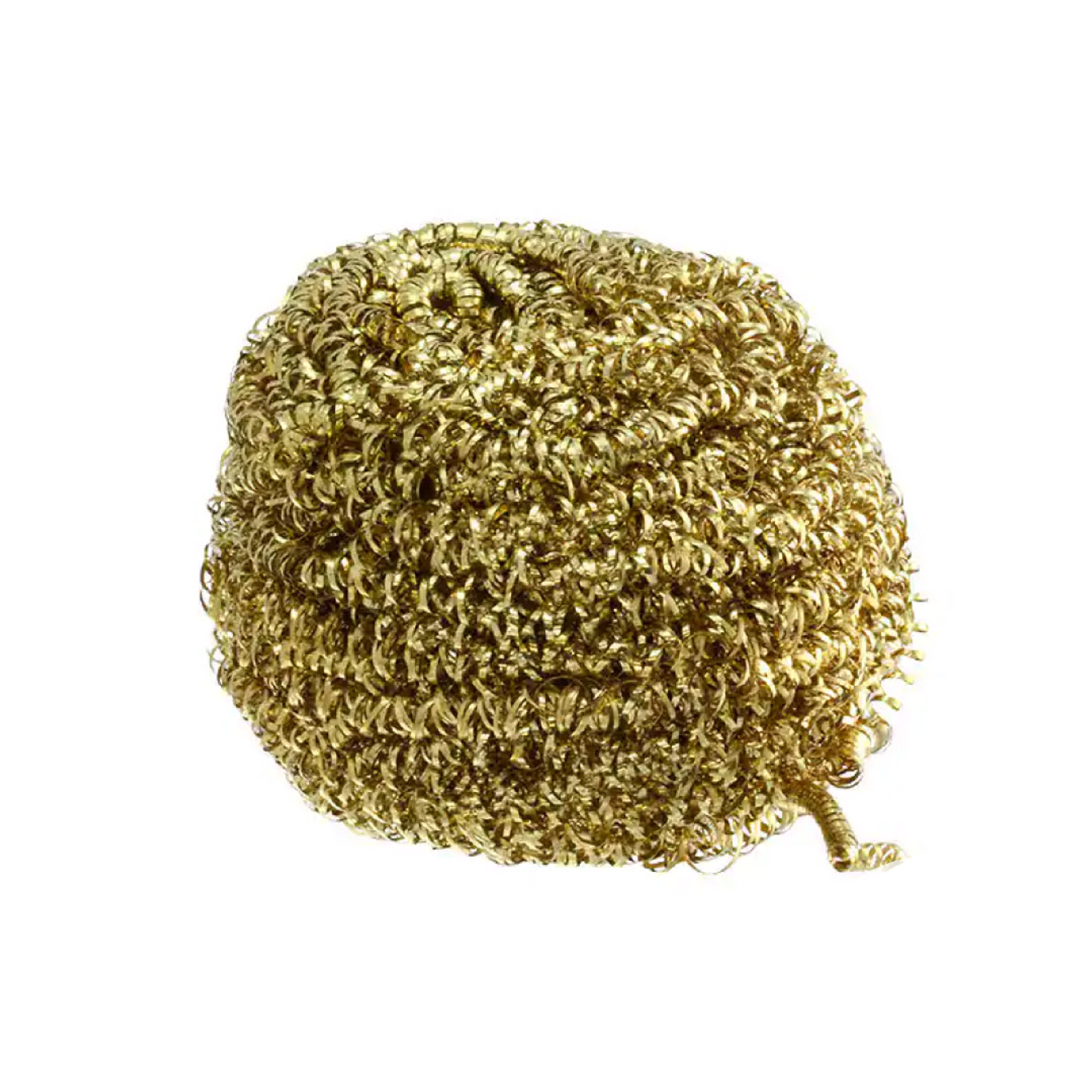

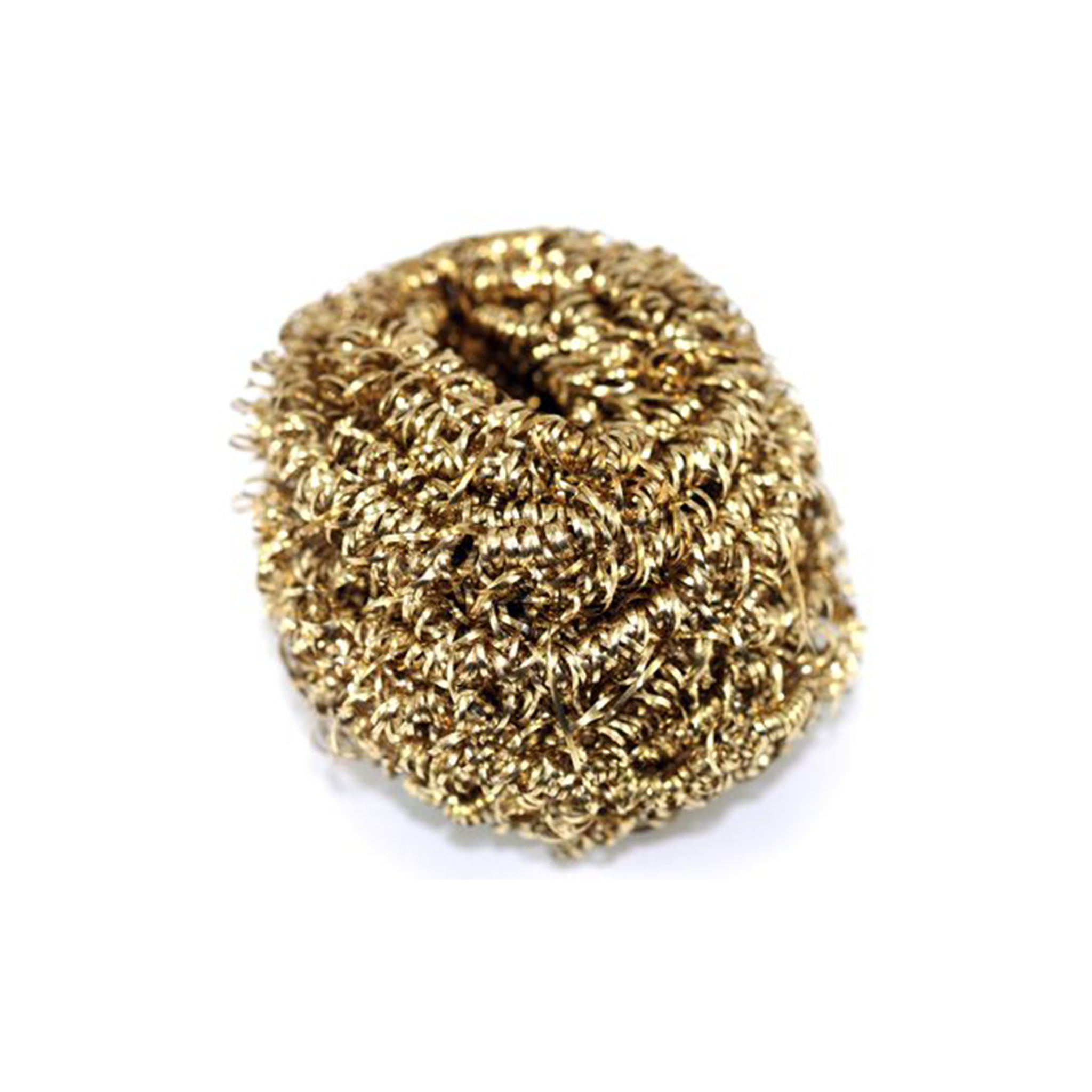

Hakko's brass wire sponges like the Hakko 599B Coiled Brass Sponge or A1561 are carefully formulated to be soft and non-abrasive on soldering tips, removing the issue of traditional brass sponges leaving scratches on soldering tips. This high-quality, flux-coated sponge removes debris effectively while leaving a microscopic film of solder behind, all without causing significant drop in tip temperature. Thus preserving the tip’s thermal stability and preventing immediate oxidation.

It has the added benefit of not requiring any water to clean.
