BGA Rework Stations: High-Precision Component Repair and Reballing

In high-density electronics manufacturing and advanced PCB rework, repairing Ball Grid Array (BGA) components requires absolute thermal control and perfect alignment. Seamark (Zhuomao) is a global leader in high-end BGA rework systems, offering fully certified solutions (ISO9001, RoHS, CE, and FDA) trusted by specialized research centers and high-volume production facilities.

From smart optical alignment stations to fully automated inline reballing and detinning machines, the Seamark lineup provides the precise heat profiling, mechanical accuracy, and consistency needed to replace complex chips safely without risking thermal damage to adjacent board components.

Why Choose Seamark BGA Rework Systems?

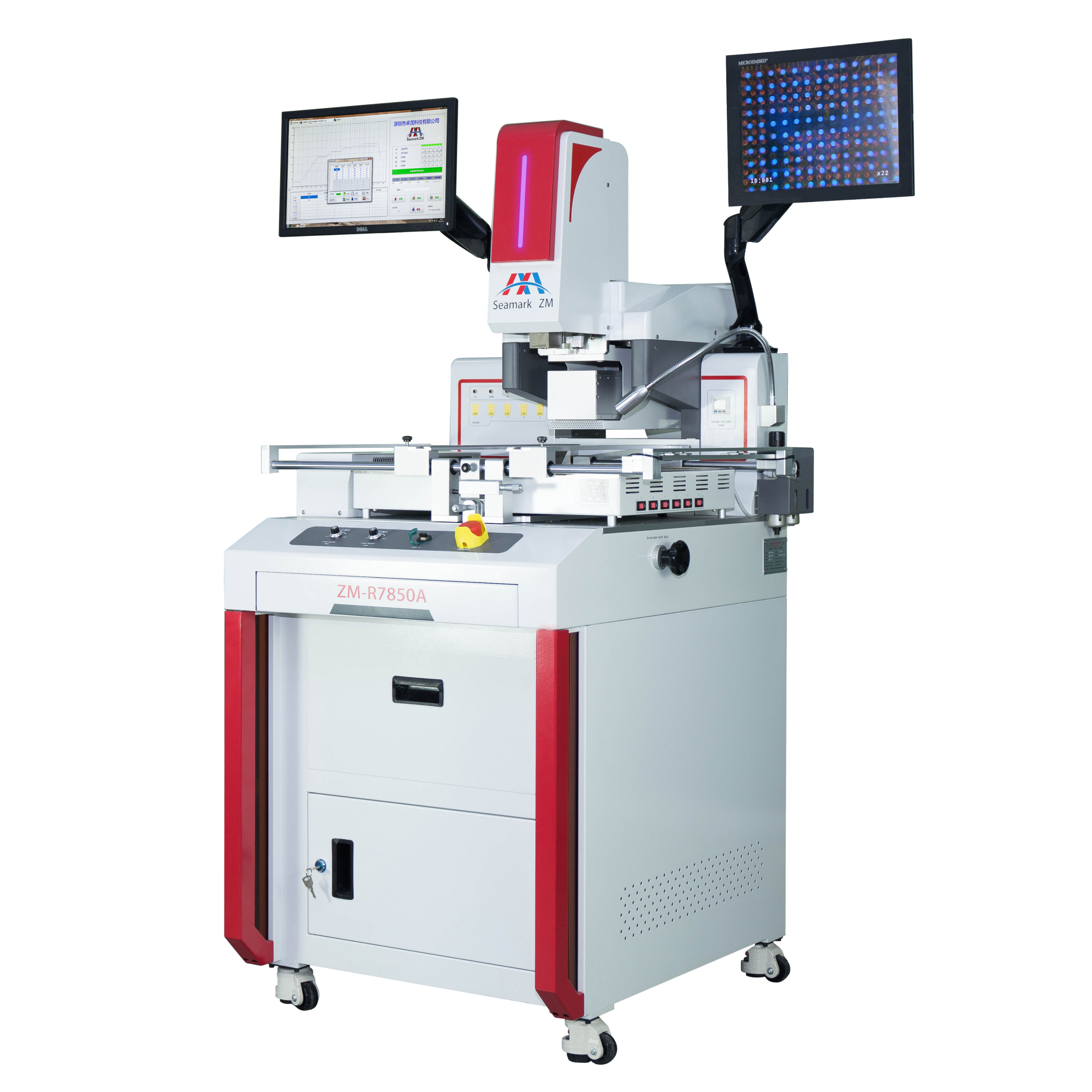

1. Smart Optical Alignment and Vision Inspection

Manually placing a high-pin-count BGA component by eye is nearly impossible. Seamark stations utilize advanced prism-based optical alignment cameras. This technology overlays images of the circuit board pads and the BGA solder balls on a high-definition monitor, allowing operators to achieve microscopic alignment accuracy before the component is placed and reflowed.

2. Precise Multi-Zone Thermal Profiling

Lead-free BGA alloys require uniform, strict temperature controls to prevent board warping or uneven joint connections. Seamark units use independently controlled top hot-air, bottom hot-air, and large-area infrared (IR) pre-heaters. By managing multiple heating zones, the system safely mimics a multi-zone production reflow oven right at the rework bench.

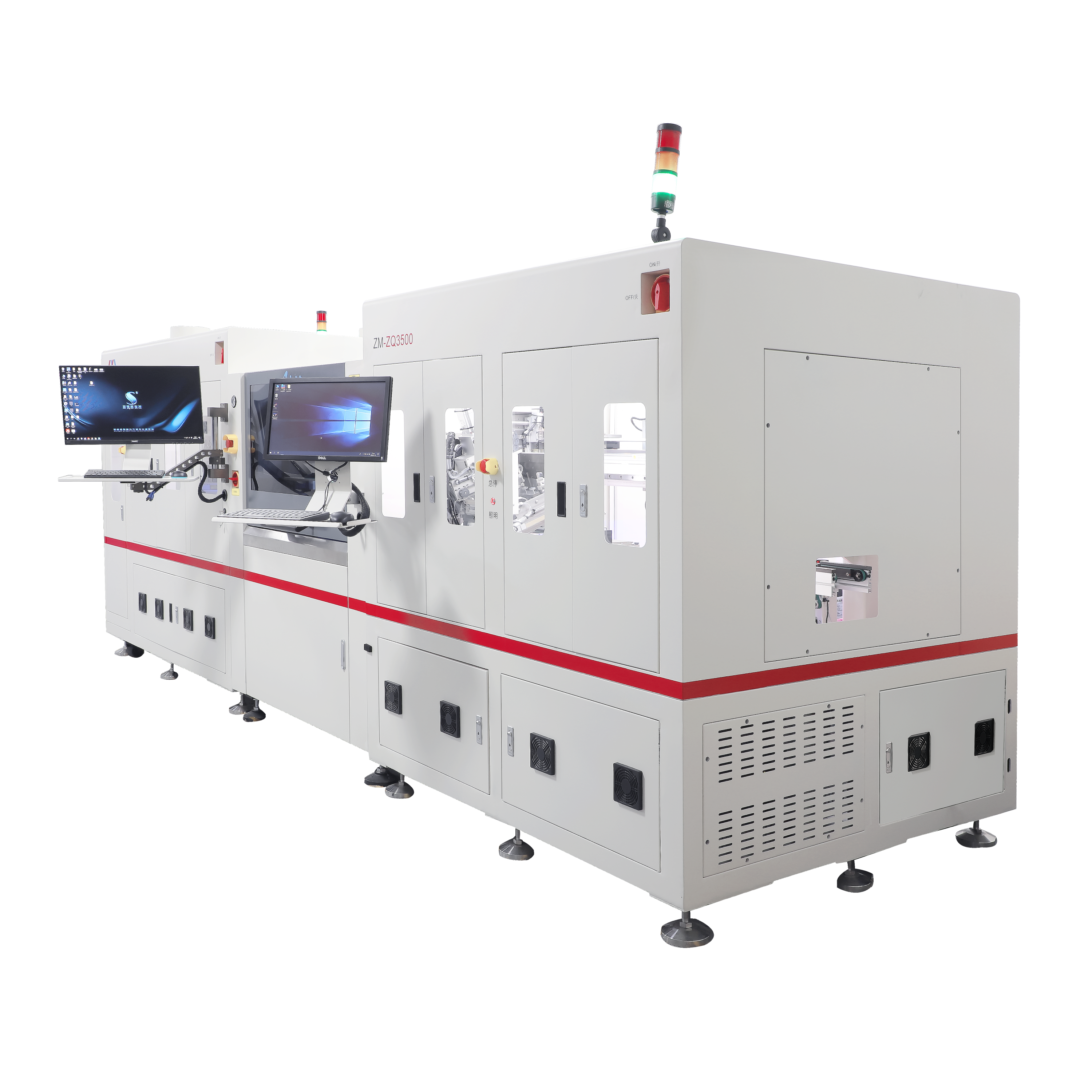

3. Automated Cleaning, Detinning, and Reballing

Preparing a circuit pad for a fresh component can be a time-consuming bottleneck. Seamark’s automated systems handle the entire cleaning cycle smoothly. They quickly remove leftover solder (detinning) and automatically place fresh, uniform solder spheres back onto the component (reballing), massively speeding up salvage and repair cycle times.
