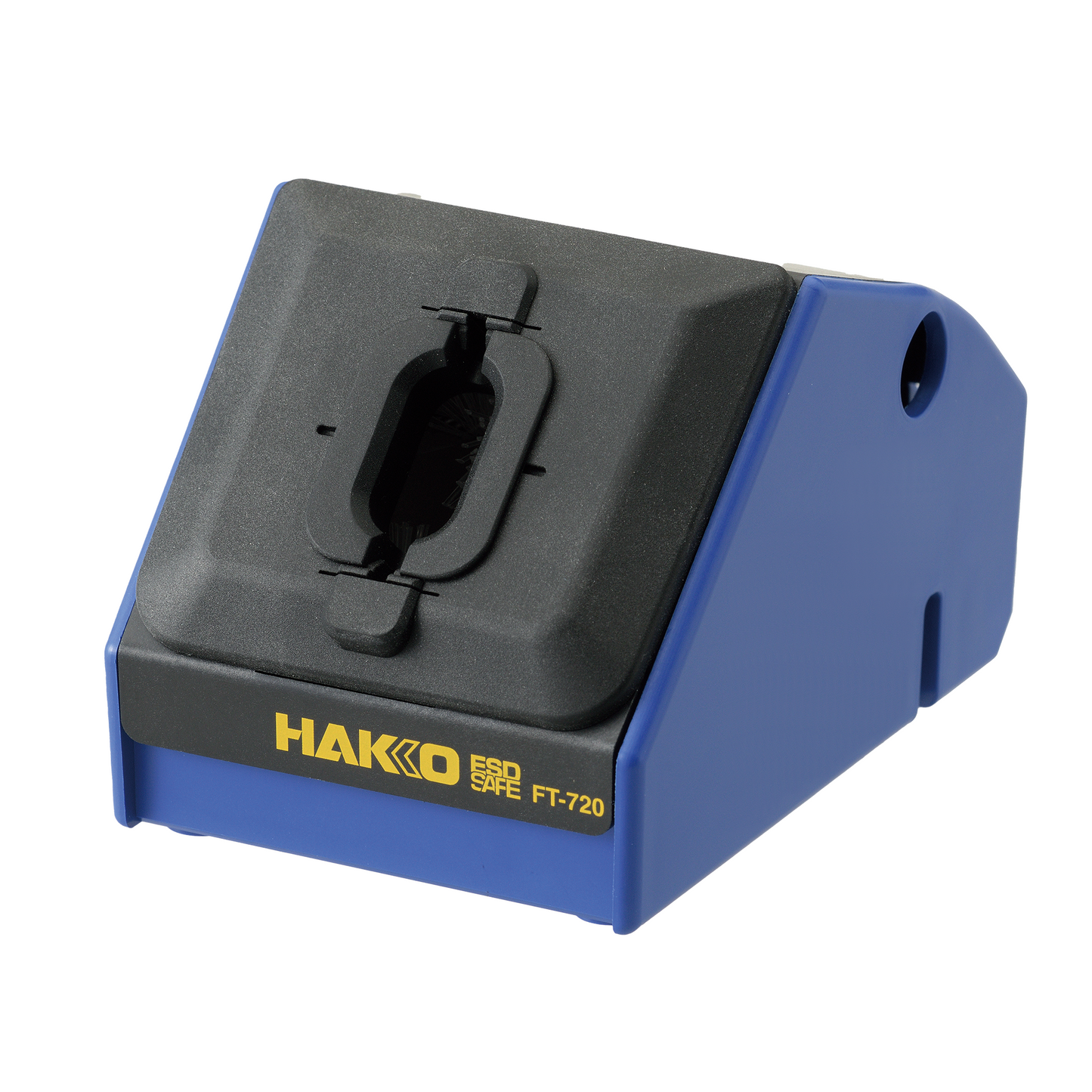

FT-720 Tip Cleaner
FT-720 Tip Cleaner
Reduce time for tip cleaning and increase efficiency in soldering process with the FT-720 Automated Tip Cleaner. Simply insert your soldering tip (also possible with a guide assembly attachment) into the tip cleaner and watch it clean!

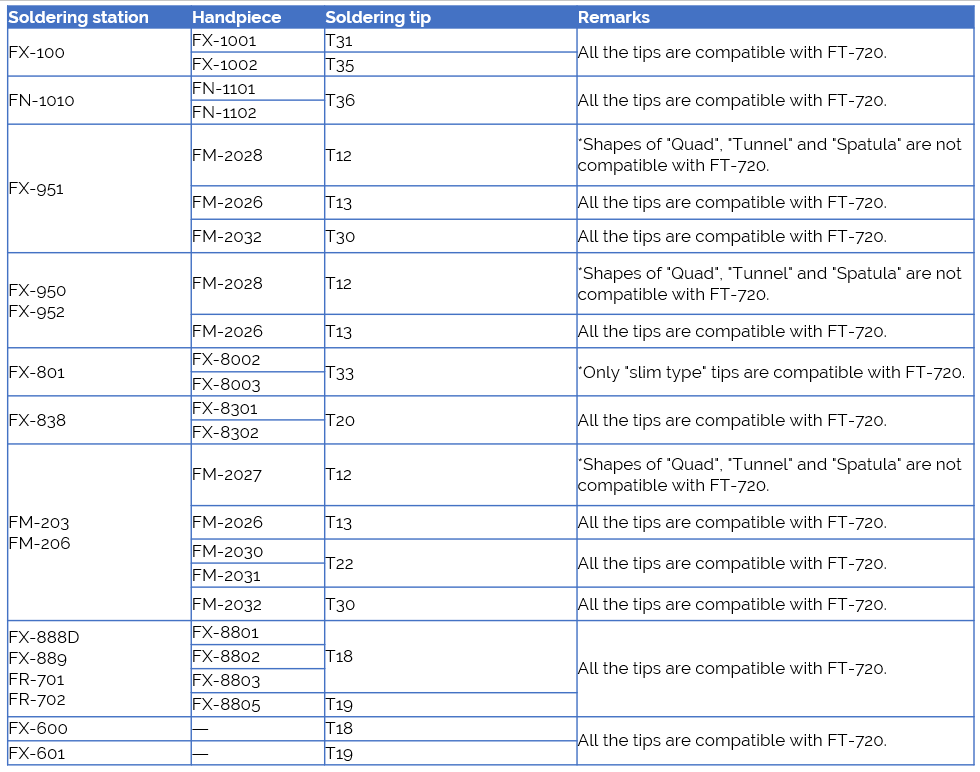

Kindly view the table to see the tips compatible with FT-720.
FT-720 User Manual
Quick tip cleaning
As the infrared sensor detects a tip being inserted, the brushes start rotating automatically to clean a tip quickly.
Reducing time for tip cleaning of ~0.94 seconds each time
Cleaning a variety of tip shapes
A variety of tip shapes can be cleaned, even tips with a guide pipe assembly on a handpiece.
Minimize tip temperature drop
FT-720 can help increase productivity by shortening the cleaning time and minimizing the tip temperature drop with no use of water.
Reduction of solder balls
The narrow opening of the P.W.B. cover reduces scattering of solder balls, keeping the work environment nice and clean. (FOD prevention). Removing the adjuster makes the opening wider to accept bigger size tips. The removed adjuster can be stored inside the unit.
Brush lineup for different purposes
In addition to the standard brush (A5063), two other brushes (A1566, A1567, sold separately) are available for different purposes.
Unit (with adjuster), AC adapter, Instruction manual
- Rating: DC 24 V 140 mA
- Brush Rotational Speed: 1670rpm
- Dimensions: 67(W)×63(H)×94(D)mm
- Weight: 200g
- Cord Length 6 ft. (1.8 m)
- Dimensions 1.4 x 1.0 x 2.0 in.
- 35 x 25 x 50 mm
- Weight 0.18 lb. (80g)
- Output Voltage: DC 24V
|Part Number||Product Name
|A5063||Cleaning Brush C (Fluoroplastic Brush, 2 pcs)|
|A5060||P.W.B Cover (with sensor)|
|A5062||Sensor Cover (10 pcs)|
|Part Number||Product Name
|A1566||Cleaning Brush A (Plastic Brush, 2 pcs)|
|A1567||Cleaning Brush B (Metal Brush, 2 pcs)|
