FM-2024 Desoldering Tool Handpiece / Conversion Kit
FM-2024 Desoldering Tool Handpiece / Conversion Kit
AVAILABILITY: PRE-ORDER | LEAD TIME: 10-16 WEEKS
- Integrated desoldering unit equipped with nozzle with built-in heater provides excellent thermal recovery
- Nozzle can be replaced with simple one-touch operation
- Used together with an FM Series station

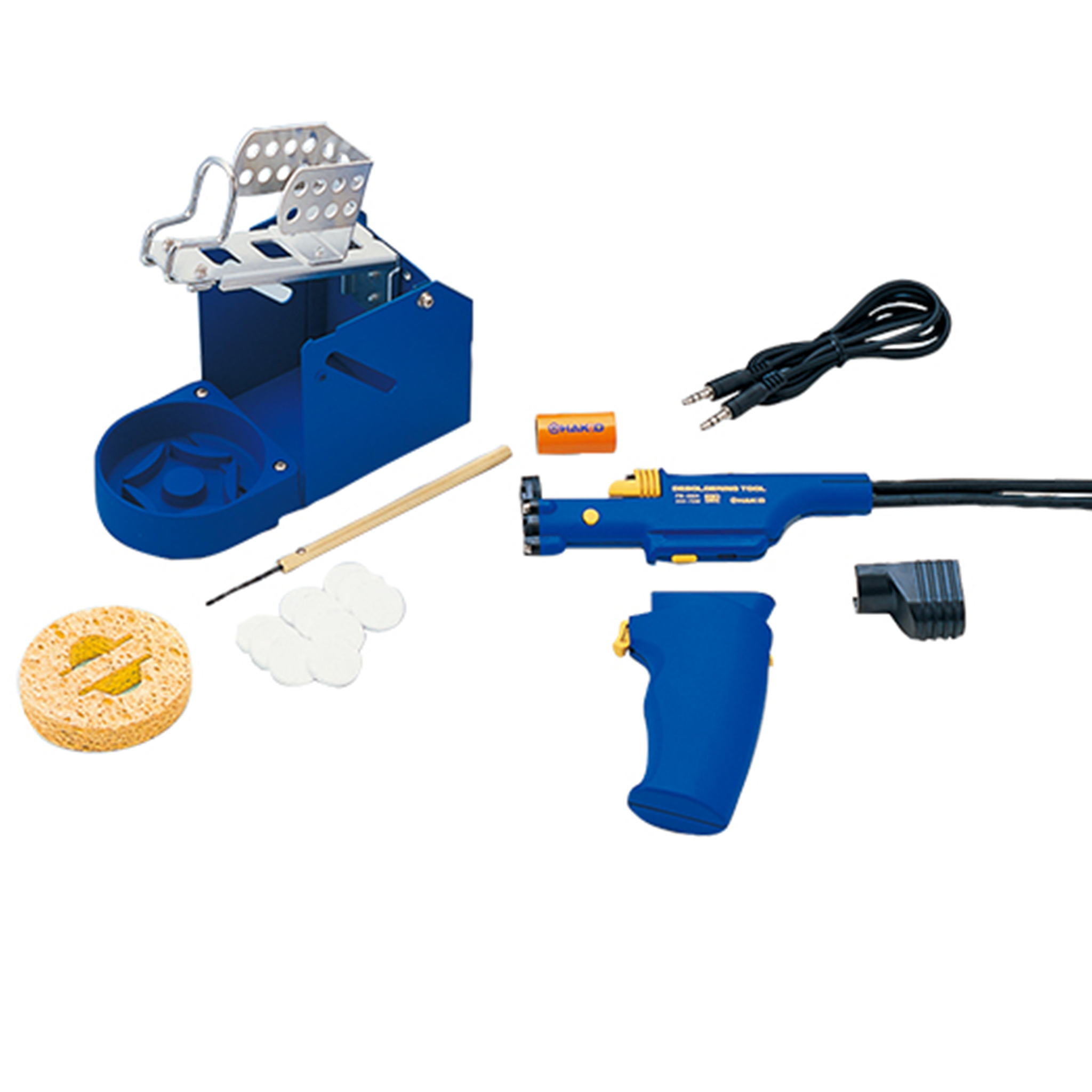

Packing List
Nozzles not included, kindly purchase separately.
| Handpiece Only FM2024-02 (for FM-204) |
Part No. |
| Desoldering Tool | FM2024-02 |
| Handle | B2872 |
| Filter Pipe Assembly | A1511 |
| Conversion Kit with DCB FM2024-28 (for FM-203) |
Part No. |
| Desoldering Tool | FM2024-02 |
| Handle | B2872 |
| Filter Pipe Assembly | A1511 |
| Iron Holder | FH200-05 |
| Desolder Control Box (DCB) | - |
| Cleaning Drill | B2873 |
| Ceramic Paper Filter | A1613 |
| Nozzle Remover | B2876 |
| Connecting Cable | B3253 |
| Instruction Manual | - |
| Conversion Kit without DCB FM2024-44 (for FM-206) |
Part No. |
| Desoldering Tool | FM2024-02 |
| Handle | B2872 |
| Filter Pipe Assembly | A1511 |
| Iron Holder | FH200-05 |
| Cleaning Drill | B2873 |
| Ceramic Paper Filter | A1613 |
| Nozzle Remover | B2876 |
| Connecting Cable | B3253 |
| Instruction Manual | - |
Features
Choose station to suit the operation
Specifications vary by station combined.
Vacuum pump type desoldering tool
- HAKKO FM-204 Vacuum pump type
- HAKKO FM-206 (3-handpiece insertion, optional soldering, SMD rework possible)
Distribution equipment for compressed air is required.
- HAKKO FM-202 (Discontinued)
- HAKKO FM-203(2-handpiece insertion, optional soldering, SMD rework possible)
- Two power receptacles are required.
- One unit can serve dual usage of Gun/Straight configurations
- The composite nozzle ensures superior thermal recovery
- Lightweight design ESD safe by design
- Nozzle cartridge can be replaced even before the nozzle becomes cool.
Specifications
Model No. FM-2024
- Power consumption: 70W (24V)
- Temperature range: 350 to 450ºC
- Nozzle to ground resistance: <2Ω
- Nozzle to ground potential: <2mV
- Heating element: Composite heater
- Cord length: 1.2m
- Total length: 180mm (with Φ1.0mm nozzle)
- Weight: 65g (with Φ1.0mm nozzle)
* Total length and weight (w/o cord, hose)
DCB (Desolder Control Box)
- Power Consumption: 12W
- Output: 24V
- >Vacuum Generator/Vacuum Pressure: Ejector type Max. 93kPa (700mmHg)
- Suction Flow: 20L/min
- Tip to Ground Potential: < 2mV
- Applied Air Pressure: 490kPa (5.0kgf/cm2) When in use (trigger or button is pressed)
- Compressed Air Consumption: 46L/min
- Outer Dimensions: 119(W) x 45(H) x 172(D)mm
- Weight: 1.2kg
Soldering Tips
| N1 Series | |
| Nozzle |
|
| N3 Series | |
| Nozzle |
|
Replacement Parts
|
Name |
Specifications |
|
FM2024-28 |
HAKKO FM-2024 conversion kit 70W (24V), with DCB for FM-203 |
|
FM2024-42 |
HAKKO FM-2024 conversion kit (for North America) |
|
FM2024-43 |
HAKKO FM-2024 conversion kit (for Europe) |
|
FM2024-44 |
HAKKO FM-2024 conversion kit 70W (24V), w/o DCB for FM-206 |
|
FM2024-02 |
Desoldering tool Handpiece FM-2024, 70W (24V) |
|
B2872 |
Handle for gun configuration |
|
B2876 |
Nozzle remover |
|
A1511 |
Filter pipe assembly (qty 10) |
|
A1612 |
Filter pipe assembly (qty 10) |
|
B2873 |
Cleaning drill for heating element |
|
Cleaning pin for nozzle Φ1mm |
|
|
A1514 |
Ceramic paper filter (qty 10) |
|
A1613 |
Ceramic paper filter (qty 10) |
|
FH100-03 |
Iron holder <w/cleaning sponge> |
|
B2881 |
Iron holder assembly (for FM-2024), with screw, for FH-100 (discontinued) |
|
Iron holder (HAKKO 599B tip cleaner), with power-save function |
|
|
B3413 |
Iron holder assembly (for FM-2024), with screw, for FH-200 with power-save function |
|
Cleaning sponge (yellow) |
|
|
A1536 |
Cleaning sponge (green) |
|
Connecting cable |
|
|
Heat resistant pad |
|
|
B2880 |
Vacuum outlet cap with O-ring |
|
A1512 |
Front holder |
|
A1513 |
Back holder bushing |
|
B2877 |
Hose |
|
B2878 |
Back holder |
|
B2879 |
Flange |
Optional Parts
|
Name |
Specifications |
|
HAKKO 599B tip cleaner |
|
|
B2874 |
Cleaning pin nozzle Φ0.6mm |
|
Cleaning pin nozzle Φ0.8mm |
|
|
Cleaning pin nozzle Φ1.3mm |
|
|
Cleaning pin nozzle Φ1.6mm |
|
|
B2875 |
Cleaning pin nozzle Φ2mm / 2.3mm |
