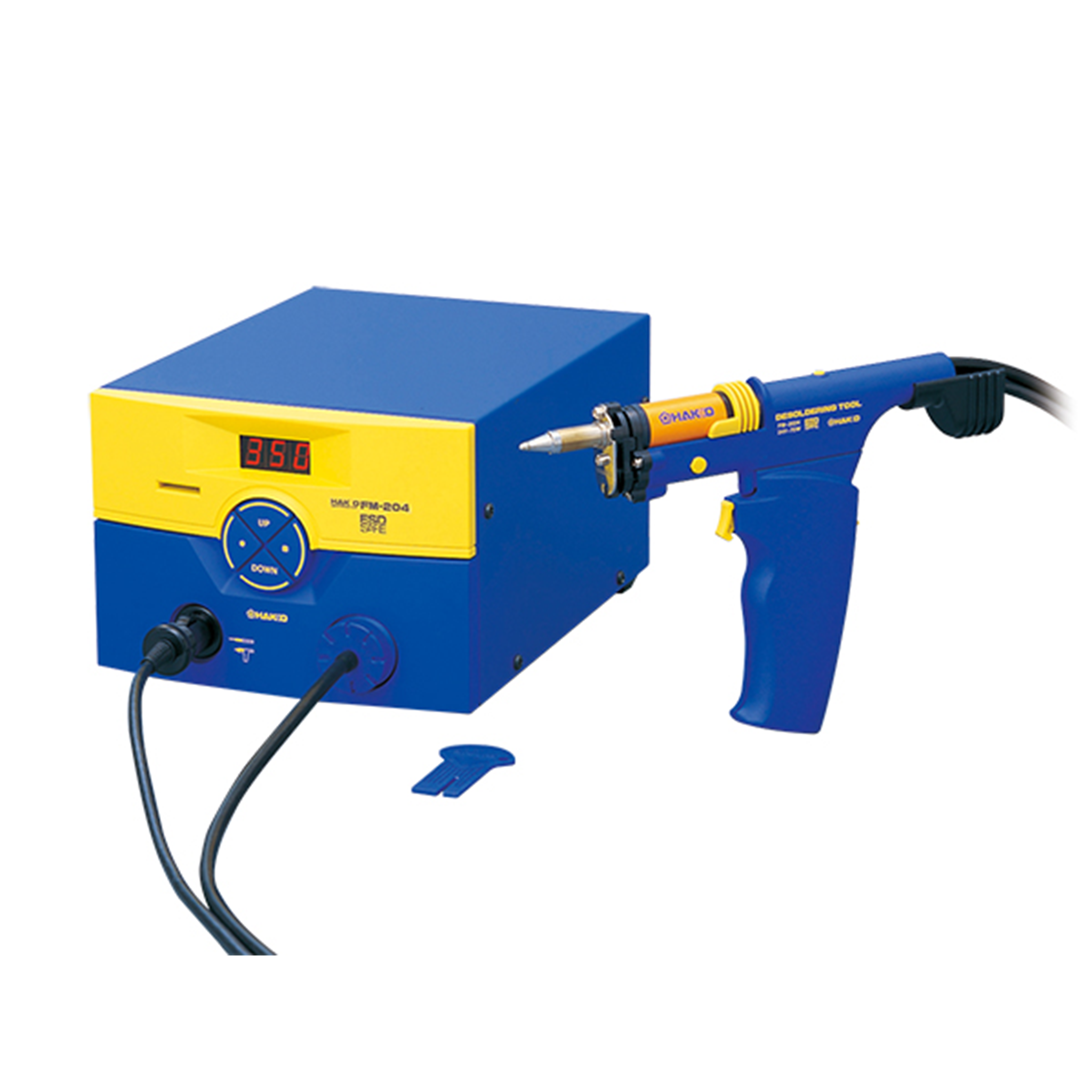

FM204-12 Desoldering Tool 230V

FM204-12 Desoldering Tool 230V

Regular price $1,500.00 SGD
Regular price Sale price $1,500.00 SGD
Sale Sold out
  • Vacuum pump type desoldering tool with excellent thermal recovery
  • Digital display ensures easy and reliable temperature control
  • Sleep function that works with iron holder curbs the oxidation of nozzles
  • The integrated nozzle containing both heating element and sensor provides higher thermal recovery than conventional tips.
Features

The integrated nozzle containing both heating element and sensor provides higher thermal recovery than conventional tips.

Soldering work is possible by replacing the handpiece.

Connectible handpieces:

  • Desoldering handpiece (HAKKO FM-2024)
  • Soldering iron (HAKKO FM-2027)
  • N2 soldering iron (HAKKO FM-2026)

Selectable grip

Two-way use of gun type and straight type is available.

Easy maintenance

Filter pipe replacement:

  • Disposable paper filter pipe
  • Easy to dispose of paper and solder separately

Nozzle replacement:

  • Safe to replace with nozzle remover
  • Replaceable even before the end of nozzle has cooled down

Power save function

Sleep function: When the handpiece is placed on the Iron Holder (FH200-01/FH200-02), the sleep function operates and decreases the unused tip temperature up to approximately 200°C , preventing the tip from being oxidized.

In addition, this function can relieve the loads applied to the tip due to the high-temperature settings required for lead-free soldering

* The connecting cable enables the iron holder and temperature controller to be activated.

Auto power shut-off function: By connecting the iron holder (HAKKO FH-200) to the connecting cable, the auto power shut-off function is activated in the same manner as the sleep function.

Selectable buzzer and alert ON/OFF setting Buzzer and alert sound generation upon error and when reaching the setting temperature can be selected. ON/OFF-settable buzzer sound

Specifications

Model No. FM-204

  • Power consumption:120W
  • Temperature range FM-2024 : 350 to 450ºC
  • FM-2026/2027 : 200 to 450ºC
  • Temperature stability: ±5ºC at idle temperature

Station

  • Output voltage: AC 24V
  • Vacuum generator: Vacuum pump, double cylinder type
  • Vacuum pressure: Max. 80kPa (600mmHg)
  • Suction flow:15L/min.
  • Dimensions: 160(W)×120(H)×225(D)mm
  • Weight: 3.7kg

Desoldering Tool

  • Power consumption: 70W (24V)
  • Nozzle to ground resistance: <2Ω
  • Nozzle to ground potential: <2mV
  • Heating element: Composite heater
  • Cord length: 1.2m
  • Total length: 180mm (with Φ1.0mm nozzle)
  • Weight: 65g (with Φ1.0mm nozzle)

* The suction flow is measured at the filter case suction port of station.

* Total length and weight (w/o cord, hose)

Soldering Tips
N1 Series
Nozzle
  • N1-06
  • N1-08
  • N1-10
  • N1-13
  • N1-16
  • N1-20
  • N1-23
  • N1-L10
N3 Series
Nozzle
  • N3-06
  • N3-08
  • N3-10
  • N3-13
  • N3-16
  • N3-20
  • N3-23
  • N3-L10
Replacement Parts

Part No.

Product

B2972

Control card

B2876

Nozzle remover

FH200-05

Iron holder <w/ HAKKO 599B tip cleaner> with power-save function

A1514

Ceramic paper filter (qty 10)
* Discontinued. The replacement is "A1613".

A1613

Ceramic paper filter (qty 10)
* The replacement for A1514.

A1511

Filter pipe assembly (qty 10) with ceramic paper filter
* Discontinued. The replacement is "A1612".

A1612

Filter pipe assembly (qty 10) with ceramic paper filter
* The replacement for A1511.

B3253

Connecting cable

FM2024-02

Desoldering tool FM-2024 70W (24V)

B2873

Cleaning drill heating element

B2872

Handle for gun configuration

A1512

Front holder

A1513

Back holder bushing

A1519

Cleaning sponge yellow
* The replacement for A1536.

A1536

Cleaning sponge green
* Discontinued. The replacement is "A1519".

A1013

Diaphragm (qty 2)

A1014

Valve plate (qty 2)

Optional Parts

Part No.

Product

FM2026-03

HAKKO FM-2026, 70W (24V), for N2 soldering

FM2026-04

HAKKO FM-2026 conversion kit, 70W (24V), for N2 soldering
For Japan, Oceania, Asia & Other countries

FM2026-06

HAKKO FM-2026 conversion kit, 70W (24V), for N2 soldering
For North America & EU

FM2027-01

HAKKO FM-2027 conversion kit, 70W (24V), for soldering

FM2027-03

HAKKO FM-2027 conversion kit, 70W (24V), for soldering

B2874

Cleaning pin, nozzle Φ0.6mm

B1086

Cleaning pin, nozzle Φ0.8mm

B1087

Cleaning pin, nozzle Φ1mm

B1088

Cleaning pin, nozzle Φ1.3mm

B1089

Cleaning pin, nozzle Φ1.6mm

B2875

Cleaning pin, nozzle Φ2mm / 2.3mm

599B-02

HAKKO 599B tip cleaner
