FM-2028 Soldering Iron

FM-2028 Soldering Iron

Regular price $88.60 SGD
Regular price Sale price $88.60 SGD
Sale Make an Enquiry
Model

Contents

Please see the full contents for each variation in the packing list tab below. *Tips not included.

Availability: PRE-ORDER | LEAD TIME: 8-16 WEEKS

Can be used with:

Also applicable for discontinued FX-950. It can be used with FM-202, FM-203, FM-204 and FM-206, however it is not equipped with LED functionality.

Packing List

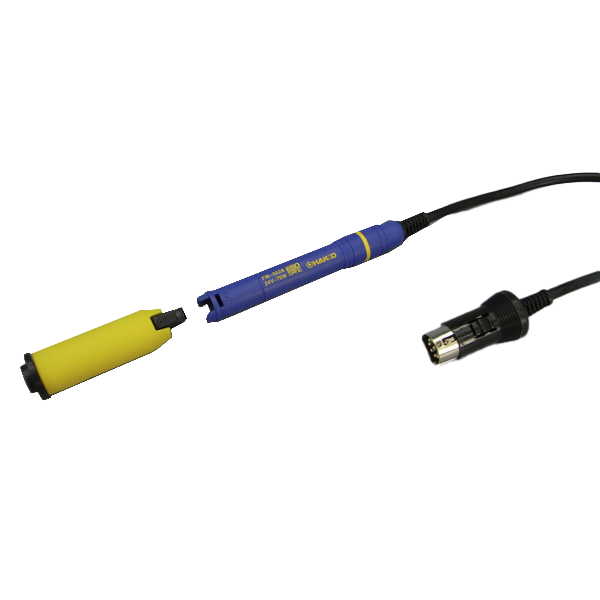

  • FM2028-01: Connector Assembly, Yellow Sleeve Assembly, Instruction Manual

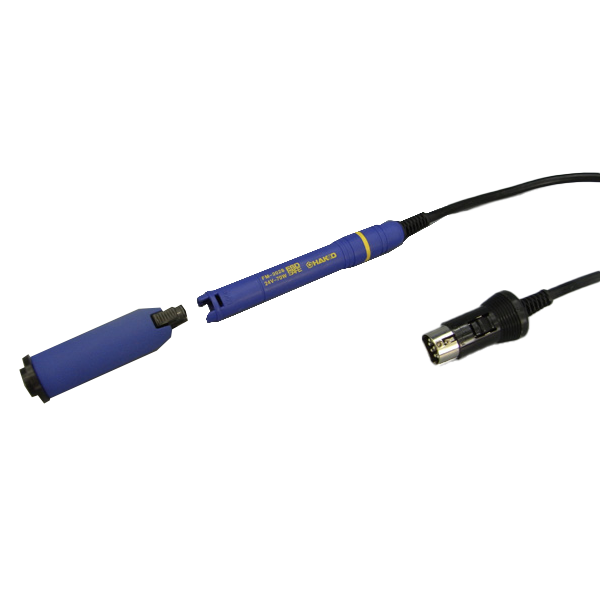

  • FM2028-02: Connector Assembly, Blue Sleeve Assembly, Instruction Manual
  • FM2028-03: Connector Assembly, Instruction Manual. (Sleeve Assembly not included)
Features

Easy removal of sleeve assembly and tip
Simply press down on the lock release button and pull the sleeve assembly out! Both the sleeve assembly and soldering tip comes out easily for quick removal or tip change.

Easy and secure tip insertion
When the tip is inserted into the sleeve assembly, you should hear a 'click' sound. This means that the tip has been inserted securely.

Sleeve color variation
An addition of the green sleeve assembly to the current yellow, orange and blue allows the user to assign the color to a specific tip shape or size, making it easy to identify while working with multiple soldering irons.

Specifications
  • Power consumption: 70W (24V)
  • Temperature range: 200 to 450ºC
  • Tip to ground resistance: <2Ω
  • Tip to ground potential: <2mV
  • Heating element: Composite heater
  • Cord length: 1.2m
  • Total length: 188mm (with 2.4D tip, without cord)
  • Weight: 30g (with 2.4D tip, without cord)
Replacement Parts
Part Number Product Name
B3220 Connector Cover
FH200-01 Iron Holder with Cleaning Wire and Power Save Function
B2791 Retaining Clip
599B-02 Tip Cleaner (Metal Wire Sponge)
599-029 Cleaning Wire
B3253 Connecting Cable
B2300 Heat Resistant Pad
B3216 Yellow Sleeve Assembly
B3217 Orange Sleeve Assembly
B3218 Blue Sleeve Assembly
B3219 Green Sleeve Assembly
A1519 Cleaning Sponge (Replaces A1536)

Soldering Tips:
T12 Series for Asia (T15 for N. America and Europe)
