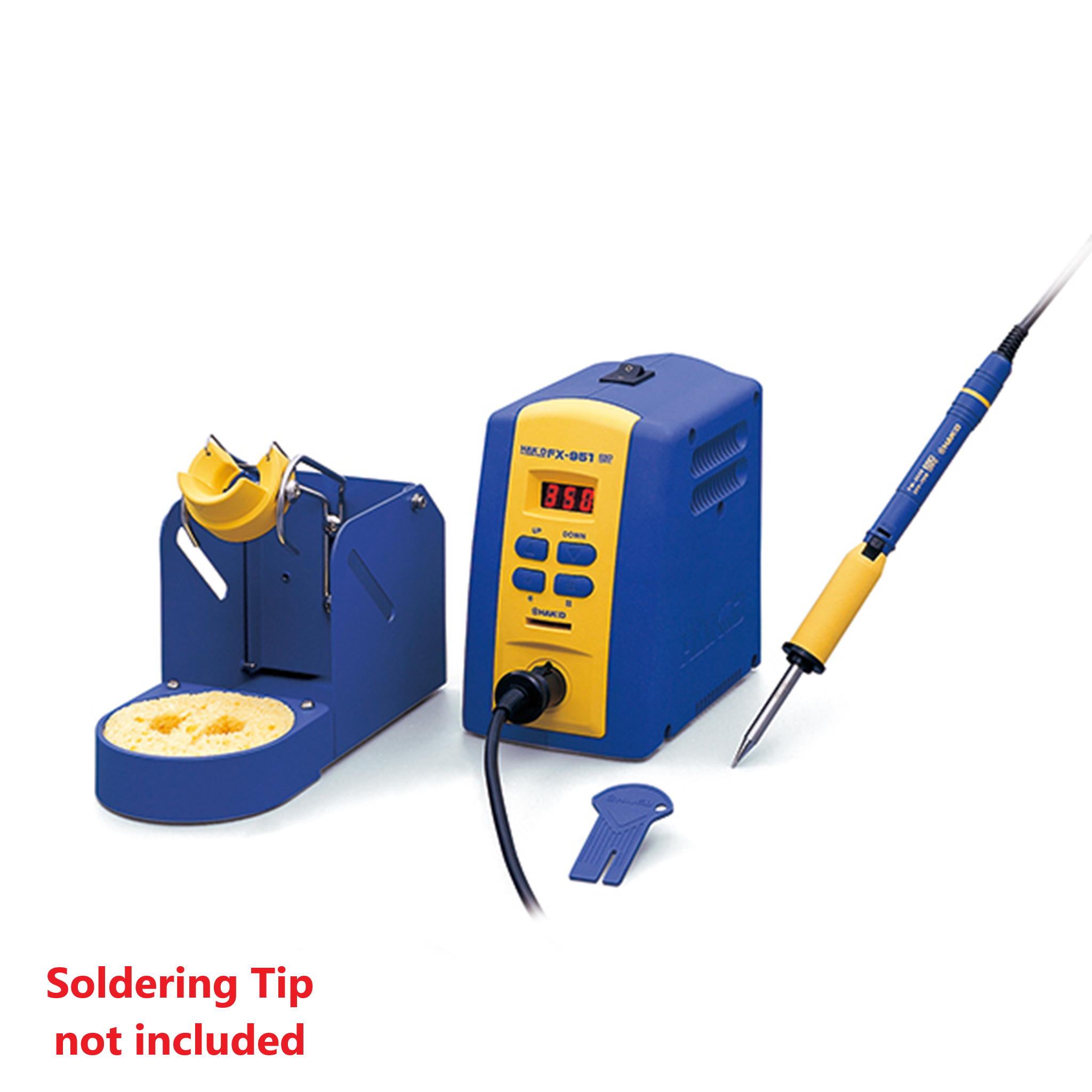

FX-951 Soldering Station 230V

FX-951 Soldering Station 230V

$519.00 SGD
$519.00 SGD
Sale Sold out

Click here to shop compatible tips for FX-951 (Tips not included).

  • Compact high-power thermally-controlled soldering iron
  • Standard model that ensures high thermal recovery needed for lead-free soldering
  • Selectable soldering iron for N2 system or micro soldering as usage at your option

    • Please refer to the User Manual for detailed specifications.

    Packing List
     Packing List  Part No.
    Unit -
    Soldering iron  FM2028-01
    Power cord B2419
    Control card B2972
    Heat resistant pad B2300
    Iron holder FH200-02
    Connecting cable B3253
    Instruction manual  -
    Features

    Carefully designed station

    • Our commitment to producing iron holders
    • The angle of the iron holder can be changed freely so that the iron holder accommodates soldering in both a standing and a sitting position.
    • It shows HAKKO's commitment to soldering iron base stand which is used 100's of times a day.

    Three Features of the Soldering Iron HAKKO FM-2028

    • Interlock mechanism with the iron holder makes setting of the power-save setting easy.
    • Power-save function allows minute-by-minute setting. (up to 30 minutes) 0-29mins. --- Sleep mode, 30 mins.--- Auto-power, Shutoff
    • Enclosed type iron holder ensures safety.

    Three types of irons for a variety of soldering work

    Included as standard Option Option

    Soldering iron HAKKO FM-2028
     Powerful thermal recovery allows soldering at lower temperature settings. Lineup includes 85 types of standard soldering tips.

    Thermal Recovery Graph
    (The comparison of HAKKO products)
    Thermal Recovery Graph

    N2 soldering iron HAKKO FM-2026

    Improve solderability and wettability with the HAKKO N2 system.
    N2 system reduces soldering defects!
    *Requires a variety of equipment in addition to the N2 soldering iron.

    Micro soldering iron
    HAKKO FM-2032
    Specially designed handle and tip provide improved workability when mounting minute, high-density electronic components.

    *Can also be used with the following stations:

    HAKKO FM-206

    HAKKO FM-203
    Specifications

    Model No. FX-951

    Power consumption: 75W

    Temperature range: 200 to 450ºC

    Temperature stability: ±5ºC at idle temperature

    Station

    Output voltage: AC 24V

    Dimensions: 80(W)×130(H)×131(D)mm

    Weight: 1.2kg

    Soldering Iron

    Power consumption: 70W (24V)

    Tip to ground resistance: <2Ω

    Tip to ground potential: <2mV

    Heating element: Composite heater

    Cord length: 1.2m

    Total length: 188mm (with 2.4D tip)

    Weight: 30g (with 2.4D tip)

    * Total length and weight (w/o cord)

    Soldering Tips

      For the HAKKO FX-951, soldering iron tips are not supplied as accessories. Please purchase soldering iron tips.

      T12 Series
      Shape BCM/CM
      • T12-BCM2
      • T12-BCM3
      Shape BC/C
      • T12-BC1
      • T12-BC1Z
      • T12-BC2
      • T12-BC2Z
      • T12-BC3
      • T12-BC3Z
      • T12-BCF1
      • T12-BCF1Z
      • T12-BCF2
      • T12-BCF2Z
      • T12-BCF3
      • T12-BCF3Z
      • T12-BC08
      • T12-C1
      • T12-C4
      Shape B
      • T12-B
      • T12-B2
      • T12-B2Z
      • T12-B3
      • T12-B4
      • T12-BL
      • T12-BZ
      • T12-WB2
      Shape D
      • T12-D08
      • T12-D12
      • T12-D12Z
      • T12-D16
      • T12-D16Z
      • T12-D24Z
      • T12-D4
      • TT12-D4Z
      • T12-D52
      • T12-DL08
      • T12-DL12
      • T12-DL32
      • T12-DL52
      • T12-WD08
      • T12-WD12
      • T12-WD16
      • T12-WD52
      Shape I
      • T12-I
      • T12-IL
      • T12-ILS
      • T12-WI
      Shape J
      • T12-J02
      • T12-JL02
      • T12-JS02
      Shape K
      • T12-K
      • T12-KF
      • T12-KFZ
      • T12-KL
      • T12-KR
      • T12-KRZ
      • T12-KU
      SMD Shape Quad
      • T12-1201
      • T12-1202
      • T12-1203
      • T12-1204
      • T12-1205
      • T12-1206
      • T12-1207
      • T12-1208
      • T12-1209
      SMD Shape Tunnel
      • T12-1001
      • T12-1002
      • T12-1003
      • T12-1004
      • T12-1005
      • T12-1006
      • T12-1007
      • T12-1008
      • T12-1009
      • T12-1010
      Shape Concave
      • T12-1610
      • T12-1612



      Replacement Parts

      Name

      Specifications

      FH200-02

      Iron holder <w/ cleaning sponge>

      with power-save function

      FM2028-01

      Soldering iron FM-2028 <w/ sleeve assembly, yellow>

      70W (24V)

      B3253

      Connecting cable

      B2300

      Heat resistant pad

      B2972

      Control card

      B3216

      Sleeve assembly

      yellow

      A1519

      Cleaning sponge
      * The replacement for A1536.

      yellow

      A1536

      Cleaning sponge
      * Discontinued. The replacement is "A1519".

      green

      FM2028-03

      Connector assembly

      B3220

      Connector cover

      For FM-2028



      Optional Parts

      Part No.

      Name

      Specifications

      FM2026-03

      HAKKO FM-2026

      70W (24V), for N2 soldering

      FM2026-04

      HAKKO FM-2026 conversion kit

      70W (24V), for N2 soldering, for Japan, Oceania, Asia & Other countries

      FM2032-52

      HAKKO FM-2032 conversion kit

      FM2028-02

      Soldering iron FM-2028 <w/ sleeve assembly, blue>

      70W (24V)

      B3217

      Sleeve assembly

      orange

      B3218

      Sleeve assembly

      blue

      B3219

      Sleeve assembly

      green

      599B-02

      HAKKO 599B tip cleaner

      B2756

      Tip tray
