FM-2032 Micro Soldering Iron Handpiece / Conversion Kit
FM-2032 Micro Soldering Iron Handpiece / Conversion Kit
AVAILABILITY: PRE-ORDER | LEAD TIME: 8-12 WEEKS
Couldn't load pickup availability
Click here to shop compatible soldering tips for FM-2032
|
Applicable Models |
| FX-951 |
| FM-203 |
| FM-206 |
Please refer to the User Manual for detailed specifications.
Packing List

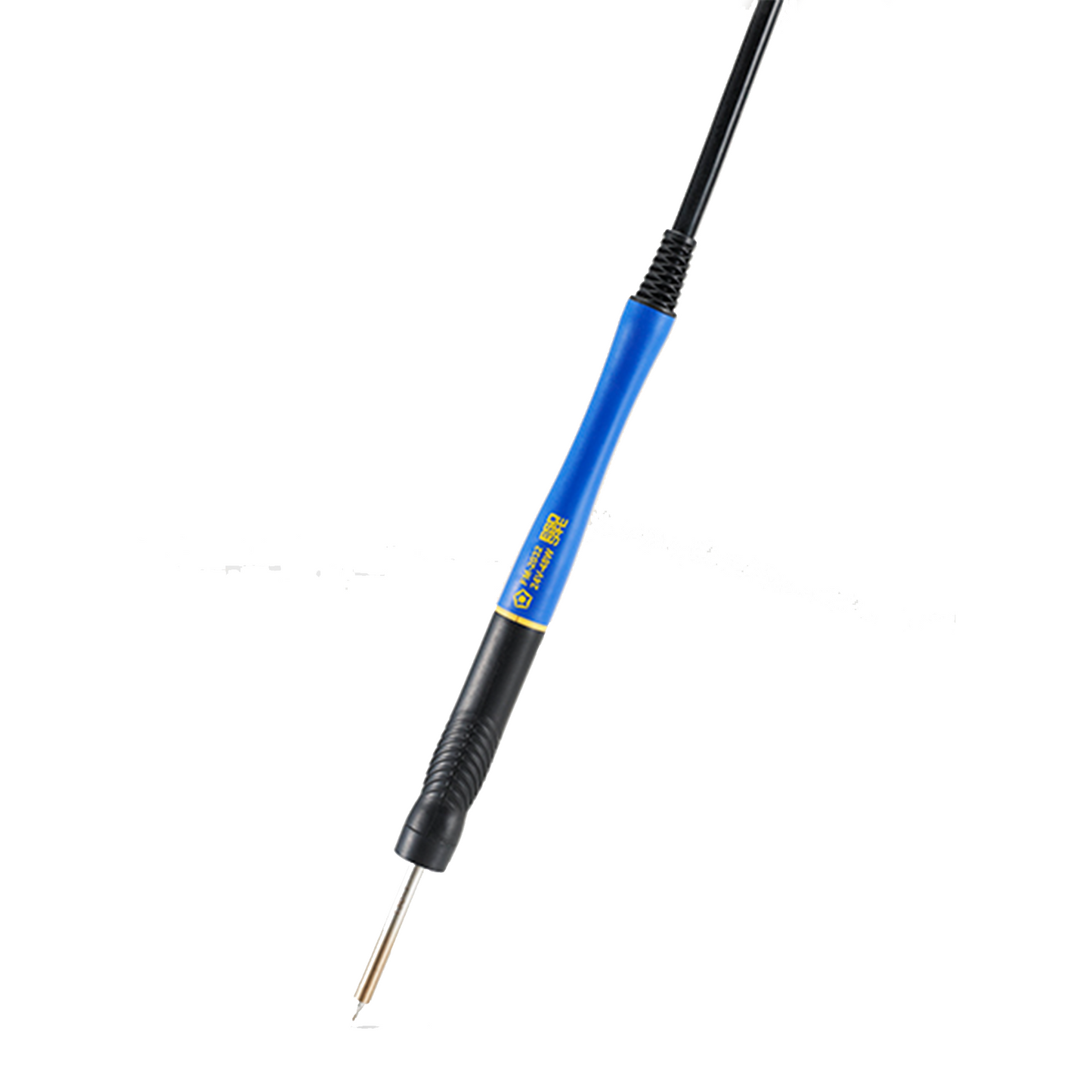

| Handpiece Only (FM2032-51) | Part No. |
| Soldering Iron* | FM2032-51 |
| *Tip not Included | T30 |

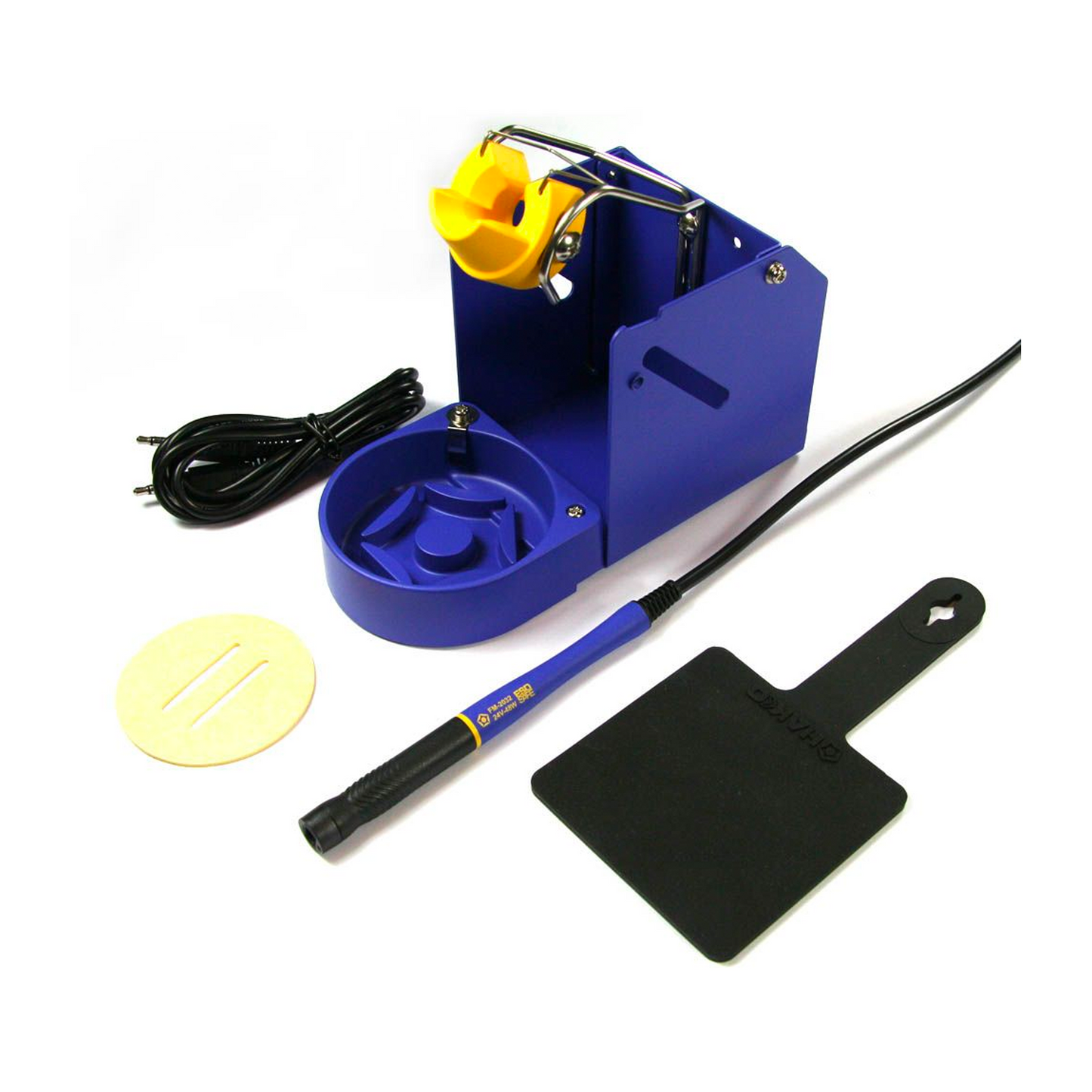

| Conversion Kit (FM2032-52) | Part No. |
| Soldering Iron* | FM2032-51 |
| Heat Resistant Pad | B2300 |
| Iron Holder (Cleaning Sponge) | FH200-81 |
| Connecting Cable | B3253 |
| Instruction Manual | - |
| *Tip not Included | T30 |
Features
Perform delicate soldering with your soldering station.
Connect to FX-951, FM-203 or FM-206. The high power 48W heater is capable even for multilayer PWB with excellent thermal recovery.
Ideal for micro-soldering applications under a microscope
HAKKO's slim and light-weight soldering iron allows for a high level of visibility, even with small and intricate components. The fine tip and slim heater ensure sophisticated soldering for precise components on high density PWB under microscope.
N2 system compatibility
Optional parts, "Hose assembly” and appropriate “Nozzle assembly” for the tip makes FM-2032 compatible with N2 system.
Improved work efficiency
The composite header inside the iron is well-suited for minute and high-density components. There are also multiple narrow tips that are meant for navigating narrow workspaces.
Detachable grip mark
Attach a grip mark for lead-free soldering or remove it for eutectic soldering. Grip marks are convenient for identifying soldering tips which are difficult to recognize at a glance.
Specifications
Model: FM-2032
- Temperature Range: 400° - 840°F (200° - 450°C)
- Tip-to-Ground Resistance: <2 ohms
- Tip-to-Ground Potential: <2mV
- Temperature Accuracy: Meets or Exceeds IPC J-STD-001
- Temperature Stability: Meets or Exceeds IPC J-STD-001
- Reach: 3.9 ft. (1.2m)
- Handpiece Length: 6.7 in. (170mm) w/T30-D1 tip
- Handpiece Weight: 0.49oz (14g) w/T30-D1 tip Tips T30 Series (not included)
- ESD Safe: Yes
Soldering Tips (T30 Series)
Soldering tips are not included with the FM-2032. Kindly purchase the T30 Series tips separately. Please note that you'll need both the tip, its compatible nozzle assembly and hose assembly B5178 for the soldering iron to function with the N2 system (Shape + Assembly Unit).
"Nozzle assembly D" with its shorter nozzle design provides compatibility with all the T30 Series soldering tips and better visibility.
| Tip | Nozzle Assembly |
|
C5038 (A) or C5041 (D) |
|
C5039 (B) or C5041 (D) |
|
C5040 (C) or C5041 (D) |
Replacement Parts
| Part Number | Product Name |
| FM2032-52 | FM-2032 Conversion Kit (with heat resistant pad, iron holder and connecting cable) 24V/48W |
| FM2032-51 | FM-2032 Soldering Iron (without heat resistant pad, iron holder and connecting cable) 24V/48W |
| B5001 | Handle Grip Mark (2 pcs) |
| FH200-81 | Iron Holder with Cleaning Sponge, power-save function |
| B5000* | Iron Receptacle with Retaining Clip and Screw |
| B2791 | Retaining Clip |
| A1519 | Yellow Cleaning Sponge (replaces A1536) |
| A1536 | Green Cleaning Sponge (discontinued) |
| B3253 | Connecting Cable |
| B2300 | Heat Resistant Pad |
*B5000 can be attached to any iron holder used for FM-2028, FM2027, or FM-2026 to make it compatible for FM-2032.
Optional Parts
| Part Number | Product Name |
| C5038 | Nozzle Assembly A |
| C5039 | Nozzle Assembly B |
| C5040 | Nozzle Assembly C |
| C5041 | Nozzle Assembly D |
| B5178 | Hose Assembly with Cord Holder (5 pcs) |
| 599B-02 | Tip Cleaner with Wire Sponge |
