Hakko FM203-14 Rework Station 230V
Hakko FM203-14 Rework Station 230V
Availability: PRE-ORDER | LEAD TIME: 10-16 WEEKS
Click here to shop compatible tips for FM-203 (Tip sold separately)
- Multi-station that enables soldering, desoldering, and SMD rework all with a single unit
- Selectable soldering iron for N2 system or micro soldering as usage at your option
Please refer to the User Manual for detailed specifications.
Features
A single station plays multiple roles: Soldering, desoldering, and SMD rework
Two handpieces can be selected in various combinations *This station is equipped with one HAKKO FM-2027 handpiece.
A wide range of handpiece selection · Figures of connectable handpieces are shown on the connectors as well as the indications of "Channel D" and "Channel S".
|
Simultaneous use |
Channel D |
Channel S |
|
Yes |
HAKKO FM-2027 Soldering iron |
HAKKO FM-2027 Soldering iron HAKKO FM-2024(*1) Desoldering tool HAKKO FM-2026(*2) N2 soldering iron HAKKO FM-2032 Micro soldering iron |
|
No |
HAKKO FM-2022 Rework tool (direct heat-type) |
|
|
No |
HAKKO FM-2023 Rework tool (direct heat-type) |
|
|
No |
HAKKO FM-2030 Heavy duty soldering iron |
|
|
No |
HAKKO FM-2031 N2 heavy duty soldering iron |
|
|
Yes |
HAKKO FM-2024(*1) Desoldering tool |
|
|
Yes |
HAKKO FM-2026(*2) N2 soldering iron |
|
|
Yes |
HAKKO FM-2032 Micro soldering iron |
*1 For HAKKO FM-2024, each handpiece needs a desoldering control box and compressor.
*2 For HAKKO FM-2026, each handpiece needs an N2 generator (HAKKO FX-780), flowmeter (HAKKO FX-791), compressor, regulator, etc. For further details, refer to the combination examples.
Powerful thermal recovery performance
See how much its thermal recovery is improved by using a composite tip

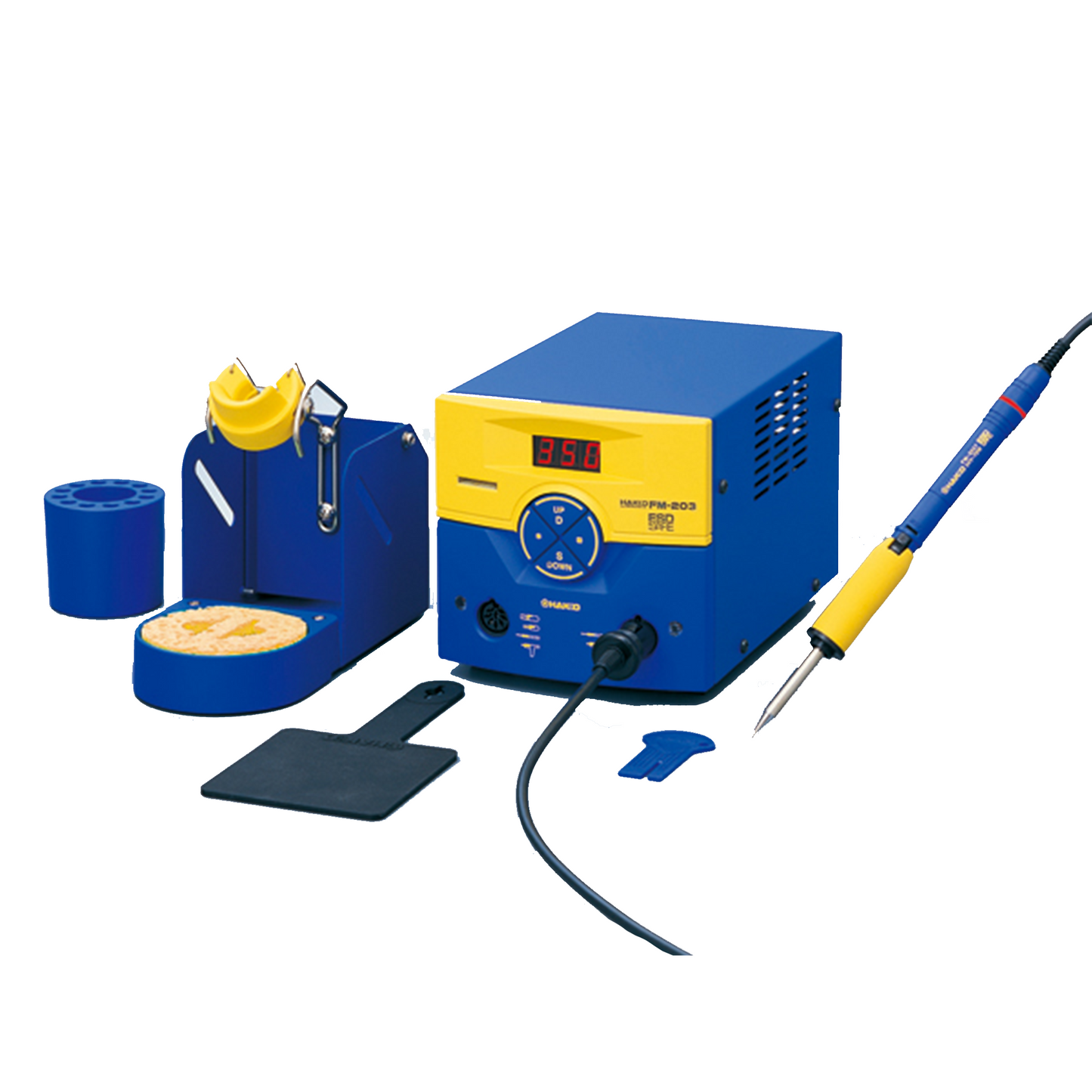

Packing List
- HAKKO FM-203 Station
- Soldering iron(HAKKO FM-2027)
- Control card
- Heat resistant pad
- Iron holder(No. FH200-01: with HAKKO 599B tip cleaner)
- Tip tray
- Power cord
- Connecting cable
- Instruction manual: 1 for each
*Tips sold separately
Specifications
Model No. FM-203
Power consumption: 140W
Temperature range:
- FM-2026/2027：200 to 450ºC
- FM-2022/2023：200 to 400ºC
- FM-2024：350 to 450ºC
- FM-2032：200 to 450ºC
Temperature stability: ±5ºC at idle temperature
Station
- Output voltage: AC 24V
- Dimensions: 120(W)×120(H)×190(D)mm
- Weight: 2.7kg
- Power consumption: 70W (24V)
- Tip to ground resistance: <2Ω
- Tip to ground potential: <2mV
- Heating element: Composite heater
- Cord length: 1.2m
- Total length: 188mm (with 2.4D tip)
- Weight: 30g (with 2.4D tip)
Soldering Tip

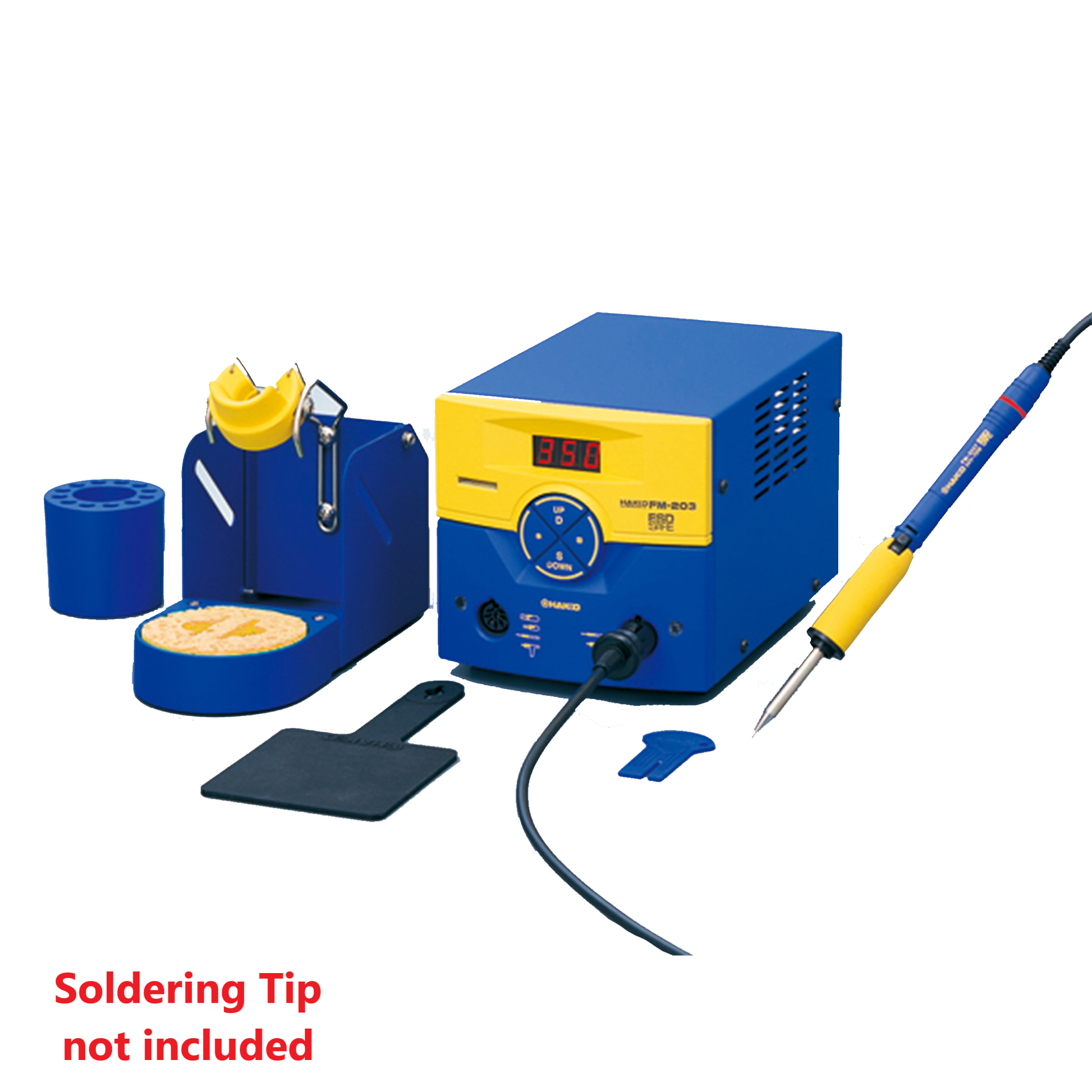

For the HAKKO FM-203, soldering iron tips are not supplied as accessories. Please purchase soldering iron tips.
| T12 Series | |
| Shape BCM/CM |
|
| Shape BC/C |
|
| Shape B |
|
| Shape D |
|
| Shape I |
|
| Shape K |
|
| SMD QUAD |
|
| SMD TUNNEL |
|
| SMD SPATULA |
|
| Shape Concave |
|
Replacement Parts
|
Part No. |
Product |
|
Sleeve assembly yellow |
|
|
Connector assembly |
|
|
Iron holder <w/ cleaning wire> with power save function |
|
|
Control card |
|
|
Connecting cable |
|
|
Heat resistant pad |
|
|
Tip tray |
|
|
Connector cover for FM-2027 |
Optional Parts
|
Part No. |
Product |
|
HAKKO FM-2022 conversion kit, 140W (24V) |
|
|
FM2022-05 |
HAKKO FM-2022 conversion kit, 140W (24V |
|
HAKKO FM-2023 conversion kit, 140W (24V),w/I tip |
|
|
FM2023-05 |
HAKKO FM-2023 conversion kit, 140W (24V),w/I tip |
|
FM2023-06 |
HAKKO FM-2023 conversion kit, 140W (24V),w/I tip |
|
FM2024-xx |
HAKKO FM-2024 conversion kit |
|
FM2026-03 |
HAKKO FM-2026, 70W (24V), for N2 soldering |
|
FM2026-04 |
HAKKO FM-2026 conversion kit, 70W (24V), for N2 soldering |
|
FM2026-06 |
HAKKO FM-2026 conversion kit, 70W (24V), for N2 soldering, |
|
FM2027-01 |
HAKKO FM-2027 conversion kit, 70W (24V), for soldering |
|
FM2027-03 |
HAKKO FM-2027 conversion kit, 70W (24V), for soldering |
|
FM2030-02 |
HAKKO FM-2030 conversion kit |
|
FM2031-02 |
HAKKO FM-2031 conversion kit, 140W (24V) |
|
FM2032-52 |
HAKKO FM-2032 conversion kit |
|
Sleeve assembly, blue |
|
|
Sleeve assembly, green |
|
|
Sleeve assembly, orange |
|
|
Cleaning sponge, yellow |
|
|
A1536 |
Cleaning sponge, green |
