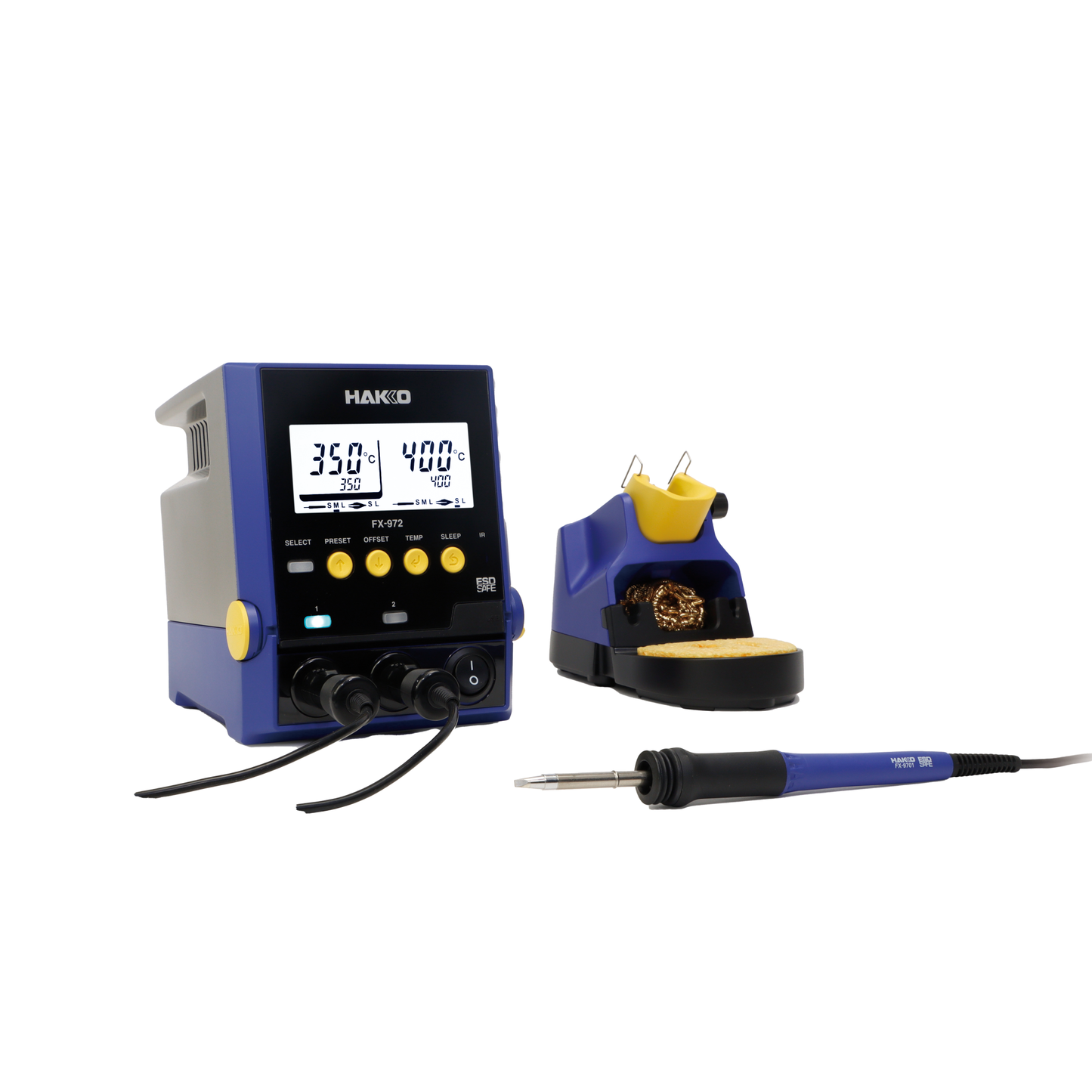

FX-972 Soldering Station (230V-240V)
FX-972 Soldering Station (230V-240V)
Contents
Main Station, Soldering Iron FX-9701, Iron Holder (with wire and sponge) FH-215, Color Band (2 pieces) B5348, Power Cord B2421, USB 2.0 Cable B5129, Instruction Manual. *Tips not included
Availability: PRE-ORDER | LEAD TIME: 8-16 WEEKS
Can be used with:
- 200W dual port station
- 15° angle tilt
- Over 60 different tip sizes and shapes
- Built-in sensor to detect if handpieces are in use
- Wide temperature range of 50°C to 450°C (500°C when connected to heavy duty iron)
- Wireless IR Offset and Control Software

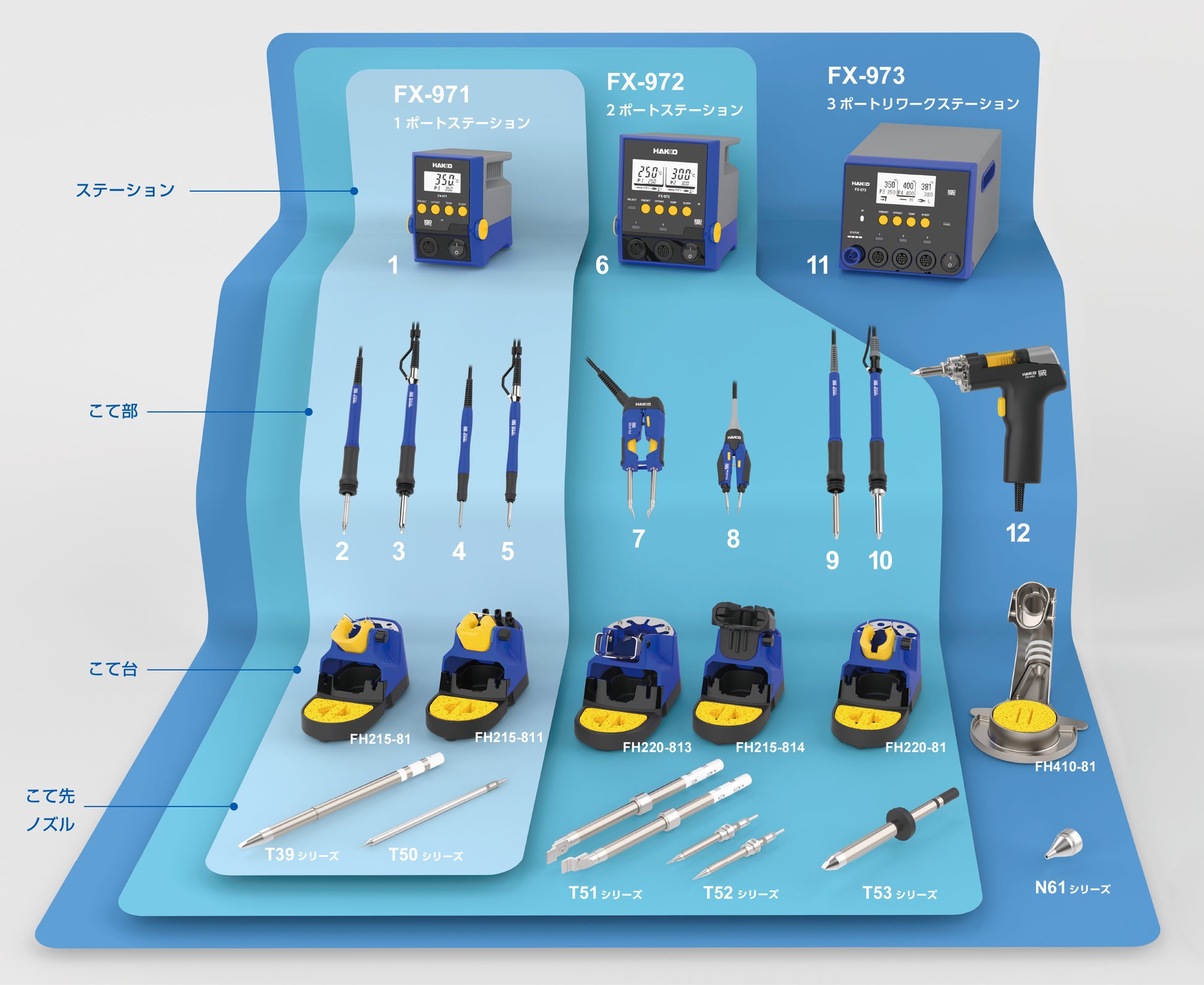

Handpiece and Soldering Tip Configuration
| Handpieces* | Soldering Tip Series** |
| FX-9701 (included) Soldering Iron | T39 |
|
FX-9702 |
T39 + Nozzle Assembly |
| FX-9703 Micro Soldering Iron | T50 |
|
FX-9704 Micro |
T50 + Nozzle Assembly |
| FX-9705 Hot Tweezers^ | T51 |
| FX-9706 Micro Hot Tweezers^ | T52 |
| FX-9707 Heavy Duty Soldering Iron^ | T53 |
|
FX-9708 Heavy Duty |
T53 + Nozzle Assembly |
*Only the FX-9701 is included with the purchase of an FX-971 or FX-972. All other soldering irons are sold separately.
**All soldering tips and nozzle assembly are not included with the purchase of any soldering irons. Kindly purchase them separately. Nozzle assemblies are required for N2-type soldering irons.
^FX-9705, FX-9706, FX-9707 and FX-9708 cannot be used simultaneously

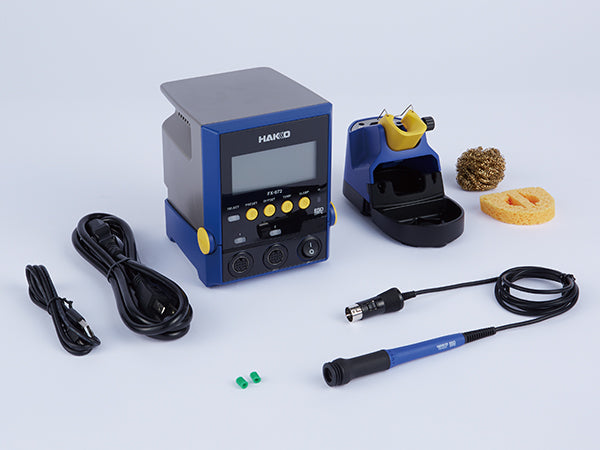

Packing List
| Soldering Station | FX-972 |
| Soldering Iron* | FX-9701 |
| Iron Holder (with wire and sponge) | FH-215 |
| Color Band (2 pieces) | B5348 |
| Power Cord | B2421 |
| USB 2.0 Cable | B5129 |
| Instruction Manual | - |
*Soldering Tips not included. Shop compatible soldering tips for FX-972 (T39)
Features
New Composite Tip (Patented)
With improved sensor sensitivity and a design that smoothly transfers the heat from the heater to the tip, the tip temperature has become stable and it ensures better soldering.
Cycle Time Reduced by 40% (Approx)
It enables soldering in a shorter time and improves work efficiency.
Upgraded Display for Increased Visibility
Adjustable Tilt Mechanism
Tilt mechanism for easy viewing and operation of the screen display, depending on the installation location, e.g., on or under the workbench or on the rack.
High-Brightness and Bigger Screen
It shows information such as set temperature, tip's sensor temperature, and preset setting, clearly and widely. The viewing angle is wide, and the high-brightness display provides high visibility.
Priority Channel
A built-in sensor detects the handpiece in use and automatically switches channels. The unused handpiece stands by at the set temperature.
Intuitive Operation
Various settings can be easily configured with just four buttons
Easy to Carry
Improved Tip Shapes for Better Soldering
Soldering that was previously impossible or time-consuming can now be achieved with the new tip shapes.
Wireless IR Auto-Cal
The FX-971 works together seamlessly with the FG-100/101B Tip Thermometer for measuring tip temperature and automatically offsetting the temperature on the station.
Integrated Software and Performance Tracker
The
Auto-Sleep / Auto-Shutoff
The built-in sensor of the tip allows for auto-sleep / auto-shutoff without connecting the station and the iron holder. This allows for more mobility in configuration of the station on your workbench.
Upgraded Iron Holder
The FH-215 features an integrated brass wire receptacle, sponge holder, safety hot tip removers and holds up to 4 tips with no sleep cable required.
Safe Tip Replacement
The tip removing attachment and tip insertion holder makes for easy and safe tip replacement
Self-Standing Iron Holder Without Base
The iron holder stays upright, keeping your soldering irons safe even without the iron base during maintenance and cleaning. Remove the iron holder base by pressing down the release button on the back.
Nitrogen Soldering
There is an option for
Specifications
FX-972 Soldering Station
- Power Consumption: 200W
- Temperature Range: 50 - 450 °C / 120-850°F (50 - 500 °C / 120-940°F when connected to heavy duty iron
- Temperature Stability: +/- 3°C at idle temperature (+/- 5°C when connected to heavy duty iron)
- Output Voltage: AC 24V

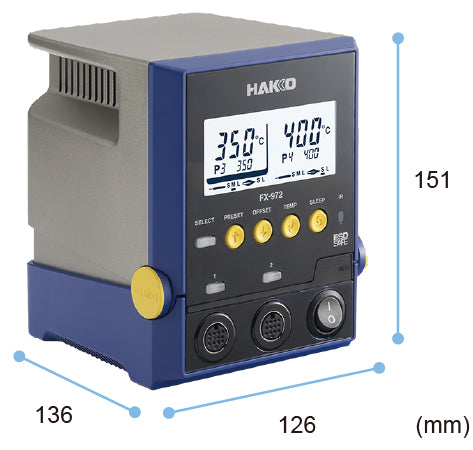

- Dimensions (with angle): 126 (W) x 151 (H) x 149 (D) mm
- Dimensions (without angle): 126 (W) x 151 (H) X 136 (D) mm
- Weight: 2.8kg
FX-9701 / FX-9702 (N2) - Soldering Iron (FX-9702 sold separately)
- Soldering Tip Series: T39
- Iron Holder: FH215-81
- Power Consumption: 95W (24V)
- Temperature Range: 50 - 450 °C
- Tip to ground resistance: <2Ω
- Tip/Nozzle to ground potential: <2mV
- Heating Element: Composite Heater
- Cord length: 1.2m
- FX-9701 - Total Length: 206 mm (with 2.4D Tip)*
- FX-9701 - Weight: 31g (with 2.4D Tip)*
- FX-9702 - Total Length: 227 mm (with 2.4D Tip)*
- FX-9702 - Weight: 49g (with 2.4D Tip)*
- *Measured without cord
FX-9703 / FX-9704 (N2) - Micro Soldering Iron (sold separately)
- Soldering Tip Series: T50
- Iron Holder: FH215-811
- Power Consumption: 70W (24V)
- Temperature Range: 50 - 450 °C
- Tip to ground resistance: <2Ω
- Tip/Nozzle to ground potential: <2mV
- Heating Element: Composite Heater
- Cord length: 1.2m
- FX-9703 - Total Length: 174 mm (with 1D Tip)*
- FX-9703 - Weight: 15g (with 1D Tip)*
- FX-9704 - Total Length: 196 mm (with 1D Tip)*
- FX-9704 - Weight: 35g (with 1D Tip, Nozzle Assembly A)*
- *Measured without cord
FX-9705 - Tweezer (sold separately)
- Soldering Tip Series: T51
- Iron Holder: FH220-813
- Power Consumption: 190W (24V)
- Temperature Range: 50 - 450 °C
- Tip to ground resistance: <2Ω
- Tip/Nozzle to ground potential: <2mV
- Heating Element: Composite Heater
- Cord length: 1.2m
- Total Length: 146mm (with T51-16L Tip)*
- Weight: 55g (with T51-16L Tip)*
- *Measured without cord
FX-9706 - Micro Tweezer (sold separately)
- Soldering Tip Series: T52
- Iron Holder: FH215-814
- Power Consumption: 140W (24V)
- Temperature Range: 50 - 450 °C
- Tip to ground resistance: <2Ω
- Tip/Nozzle to ground potential: <2mV
- Heating Element: Composite Heater
- Cord length: 1.2m
- Total Length: 130mm (with T52-I015 Tip)*
- Weight: 33g (with T52-I015 Tip)*
- *Measured without cord
FX-9707 / FX-9708 (N2) - Heavy Duty Soldering Iron (sold separately)
- Soldering Tip Series: T53
- Iron Holder: FH220-81
- Power Consumption: 200W (24V)
- Temperature Range: 50 - 500 °C
- Tip to ground resistance: <2Ω
- Tip/Nozzle to ground potential: <2mV
- Heating Element: Composite Heater
- Cord length: 1.2m
- FX-9707 - Total Length: 222 mm (with T53-D24 Tip)*
- FX-9707 - Weight: 41g (with T53-D24 Tip)*
- FX-9708 - Total Length: 231 mm (with T53-D24 Tip)*
- FX-9708 - Weight: 47g (with T53-D24 Tip, Nozzle Assembly C)*
- *Measured without cord
Soldering Tips (T39 Series)
T39 Series tips not included. Shop T39 Tips
Replacement Parts
| Part No. | Product |
| FX-9701 | Soldering Iron / Conversion Kit, 95W (24V) |
| B5348 | Green color band, 2 pieces |
| B5288 | Nipple with sealing valve |
| B5289 | Sealing Valve |
| FH215-81 | Iron Holder (with cleaning sponge and wire) For FX-9701, FX-9702 |
| A1561 | Cleaning Wire For FH-215, FH-220, FH-800 |
| A5038 | Cleaning Sponge For FH-215, FH-220, FH-800 |
| B5314 | Tip removing attachment For FH-215 |
| B5312 | Iron Receptacle with knob and retaining clip For FH-215 and FH-220 |
| B5313 | Knob |
| B2791 | Retaining Clip |
| B5129 | USB Cable (1m) |
Soldering Tips:
T39, T50, T51, T52 and T53 Series
