FX-9702 N2 Soldering Iron / Conversion Kit
FX-9702 N2 Soldering Iron / Conversion Kit

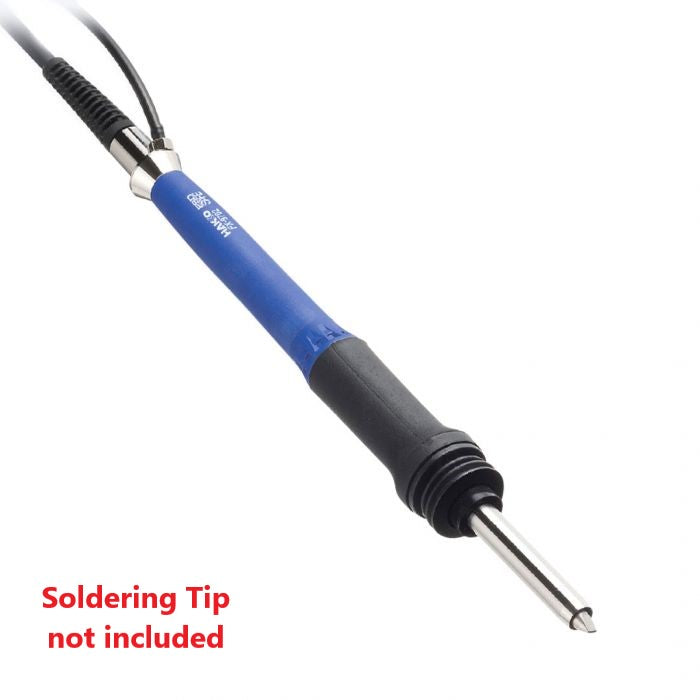

*Soldering Tip NOT included

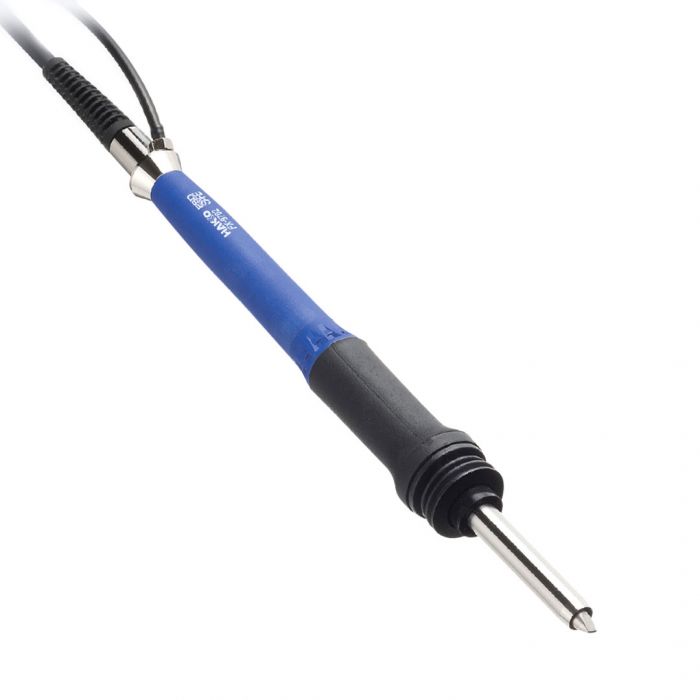

N2 Soldering Iron for FX-971. Has 95W of power with an ergonomic design and a sleep sensor built directly into the iron.

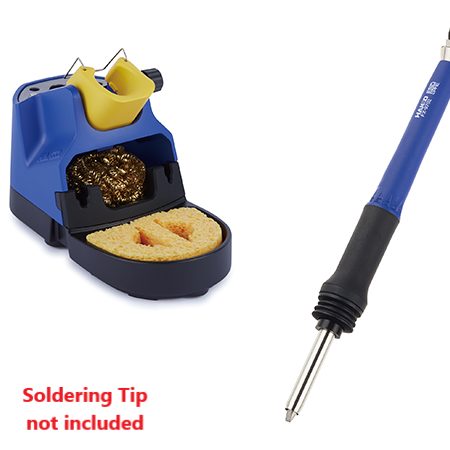

The conversion kit comes with a fully redesigned FH-215 Iron Holder to support the handpiece with a new receptacle piece, extra tip storage, easily removable back as well as a cleaning sponge and brass wire.
Applicable Models |
FX-971 |
FX-972 |
Packing List
Iron Only | |
Soldering Iron* | FX-9702 |
Instruction Manual | - |
Conversion Kit | |
Soldering Iron* | FX-9702 |
Iron Holder | FH-215 |
Cleaning Wire |
A1561 |
Cleaning Sponge | A5038 |
Instruction Manual | - |
*Soldering Tip and Station NOT included
Specifications
FX-9701 / FX-9702 Soldering Iron
- Soldering Tip Series: T39
- Iron Holder: FH215-81
- Power Consumption: 95W (24V)
- Temperature Range: 50 - 450 °C
- Tip to ground resistance: <2Ω
- Tip/Nozzle to ground potential: <2mV
- Heating Element: Composite Heater
- Cord length: 1.2m
- FX-9701 - Total Length: 206 mm (with 2.4D tip)
- FX-9701 - Weight: 31g (with 2.4D tip)
- FX-9702 - Total Length: 227 mm (with 2.4D tip)
- FX-9702 - Weight: 49g (with 2.4D tip, nozzle assembly D)
Required Equipment for N2 System
Part No | Product Name |
FX-971 / FX-972 | Soldering Station |
FX-9702 FX-9704 |
N2 Soldering Iron |
T39 T50 |
Soldering Tip |
T39 Nozzle Assembly T50 Nozzle Assembly |
Nozzle Assembly |
FX-780 / FX-781 | N2 Generator |
FX-791 | N2 Flowmeter |
- | Other Equipment* |
*Required regulator, filters, compressors etc are not available in Hakko's product line. It needs to be purchased separately.
Soldering Tip
T39 (not included, sold separately)
Nozzle Assembly (not included, sold separately)
For an N2 System, a nozzle assembly is required for the soldering iron to function.
Both the Tip and the Nozzle Assemblies are sold separately.
Tip | Nozzle Assembly |
|
B5290 (A) |
|
B5291 (B) |
|
B5292 (C) |
|
B5293 (D) |
|
B5294 (E) |
|
B5295 (F) |
|
B5296 (G) |
|
B5297 (H) |
|
B5298 (I) |
|
B5332 (J) |
|
B5333 (K) |
