FX-9704 Micro N2 Soldering Iron / Conversion Kit
FX-9704 Micro N2 Soldering Iron / Conversion Kit
*Soldering Tip NOT included

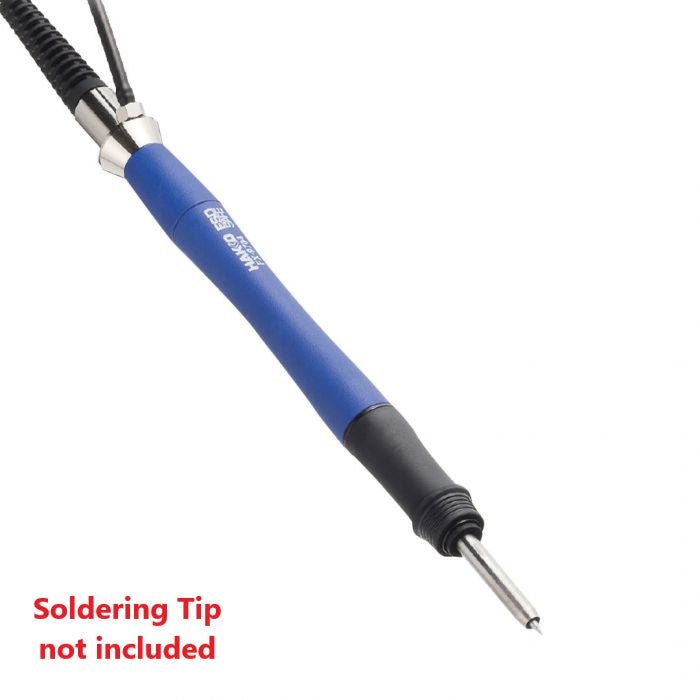

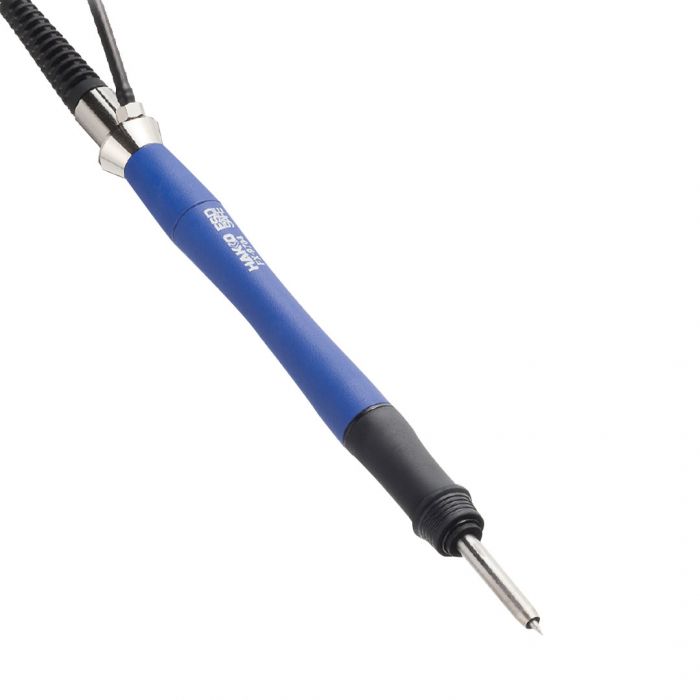

Micro Soldering Iron for FX-971. Has 70W of power with an ergonomic design and a sleep sensor built directly into the iron.
Ready to use in 3 seconds after power on. Best-suited for micro soldering under a microscope.
Very slim, super-light, and unsurpassed handling ability with a short length of 27 mm from the tip head to the handle and narrow cable of 3.6 mm outer diameter. Holding it just like a pen, you can approach fine components precisely and quickly.
The conversion kit comes with a fully redesigned FH-215 Iron Holder to support the handpiece with a new receptacle piece, extra tip storage, easily removable back as well as a cleaning sponge and brass wire.
Applicable Models |
FX-971 |
FX-972 |
Packing List
Iron Only | |
Soldering Iron* | FX-9704 |
Instruction Manual | - |
Conversion Kit | |
Soldering Iron* | FX-9704 |
Iron Holder | FH-215 |
Cleaning Brush |
AC5000 |
Cleaning Sponge | A5038 |
Instruction Manual | - |
*Soldering Tip NOT included
Specifications
FX-9703 / FX-9704 Soldering Iron
- Soldering Tip Series: T50
- Iron Holder: FH215-811
- Power Consumption: 70W (24V)
- Temperature Range: 50 - 450 °C
- Tip to ground resistance: <2Ω
- Tip/Nozzle to ground potential: <2mV
- Heating Element: Composite Heater
- Cord length: 1.2m
- FX-9703 - Total Length: 174 mm (with 1D tip)
- FX-9703 - Weight: 15g (with 1D tip)
- FX-9704 - Total Length: 196 mm (with 1D tip)
- FX-9704 - Weight: 35g (with 1D tip, Nozzle Assembly A)
Required Equipment for N2 System
Part No | Product Name |
FX-971 / FX-972 | Soldering Station |
FX-9702 FX-9704 |
N2 Soldering Iron |
T39 T50 |
Soldering Tip |
T39 Nozzle Assembly T50 Nozzle Assembly |
Nozzle Assembly |
FX-780 / FX-781 | N2 Generator |
FX-791 | N2 Flowmeter |
- | Other Equipment* |
*Required regulator, filters, compressors etc are not available in Hakko's product line. It needs to be purchased separately.
Soldering Tip
T50 (not included, sold separately)
T50 Nozzle Assembly (not included, sold separately)
For an N2 System, a nozzle assembly is required for the soldering iron to function.
Both the Tip and the Nozzle Assemblies are sold separately.
Nozzle Assembly B is 4mm longer than Nozzle Assembly A. Use Nozzle Assembly A when using the iron horizontally to prevent obstruction.
Tip | Nozzle Assembly |
|
Either B5337 (A) or B5338 (B) |
|
B5337 (A) Only |
