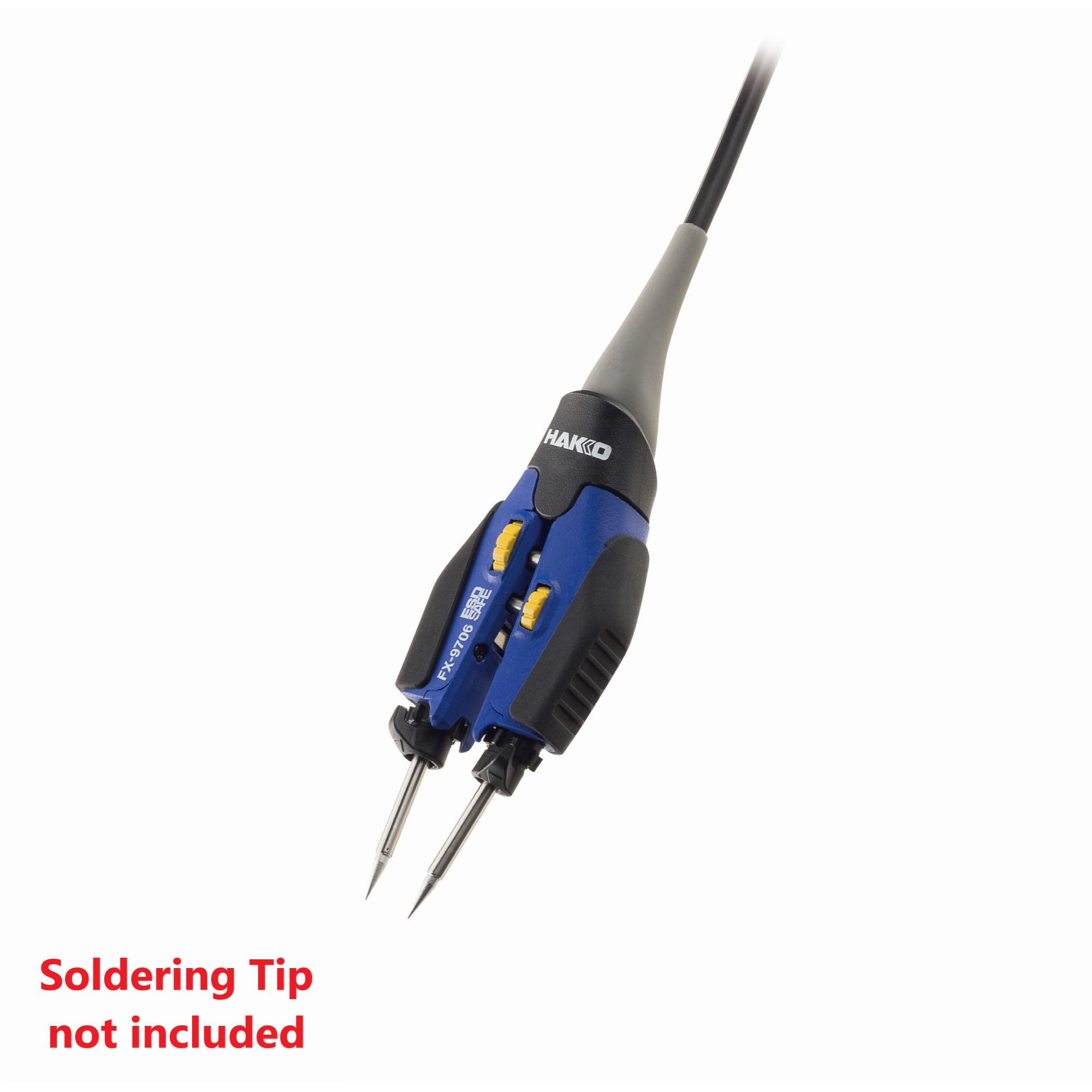

FX-9706 Micro Hot Tweezers / Conversion Kit
FX-9706 Micro Hot Tweezers / Conversion Kit
Soldering Tips not included, shop compatible T52 Tips.
- 140W High-Powered Micro Hot Tweezers
- Four adjustable mechanism for accurate contact-point
- Best suited for SMD Rework from 1005 chips to SOP components
| Applicable Models |
| FX-972 |
Packing List
| Iron Only | FX9706-81 |
| Micro Hot Tweezer Handpiece* | FX-9706 |
| Instruction Manual | - |
| *Station and tips not included |

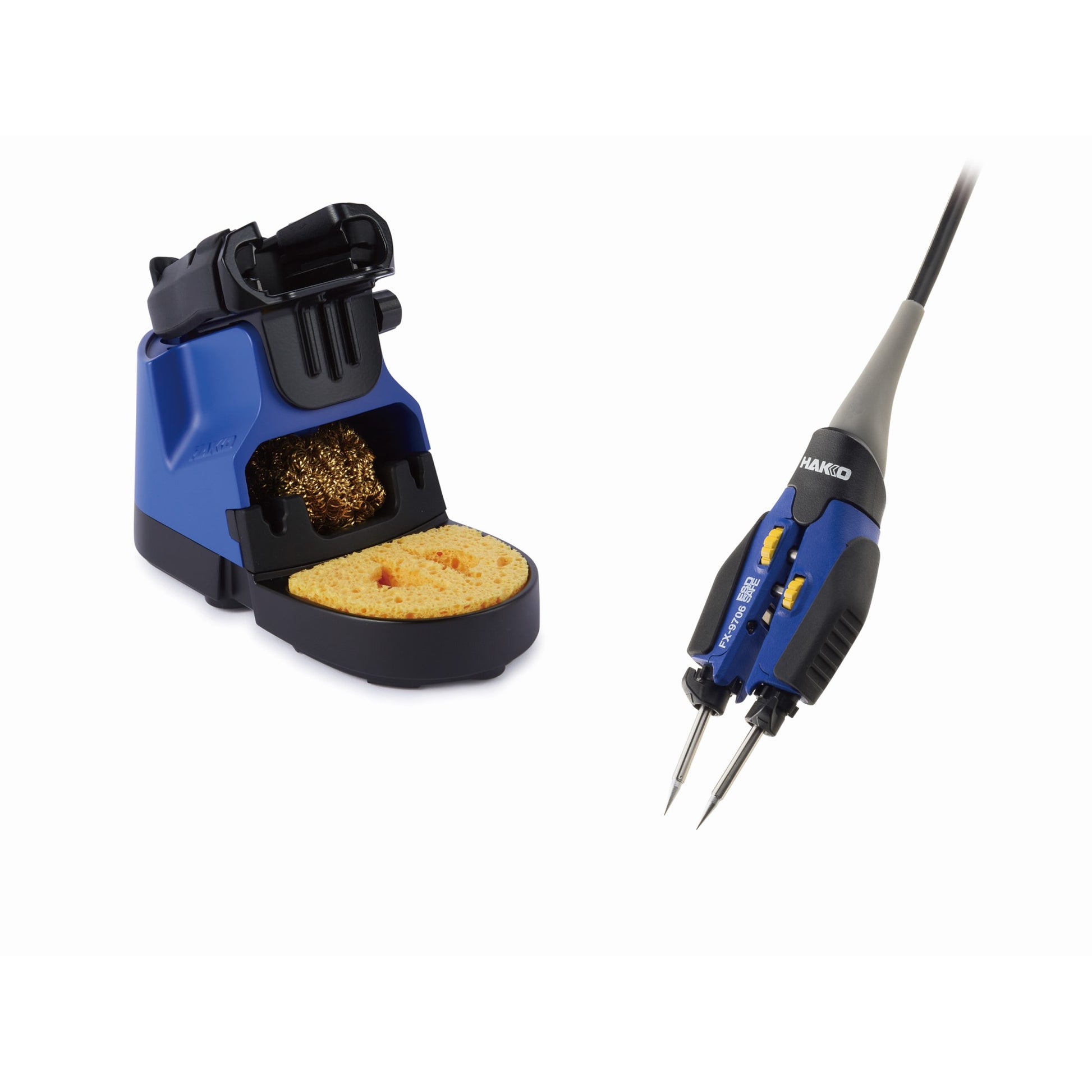

| Conversion Kit | FX9706-811 |
| Micro Hot Tweezer Handpiece* |
FX-9706 |
| Iron Holder (with cleaning sponge and wire) | FH-215 |
| Instruction Manual | - |
| *Station and tips not included |
Features
Accurate Contact with Micro Components
- Height adjustment
- Width adjustment
- Angle of rotation adjustment
- Length adjustment
Improved Operability
Newly-designed handle for comfort and stability. Heat-resistant cover reduces operator strain and compact design reduces hand fatigue.
Easy Tip Removal
Safely and quickly change hot tweezer tips with the newly-designed iron holder with tip removing attachment.
Specifications
- Soldering Tip Series: T52
- Iron Holder: FH215-814
- Power Consumption: 140W (24V)
- Temperature Range: 50 - 450 °C
- Tip to ground resistance: <2Ω
- Tip/Nozzle to ground potential: <2mV
- Heating Element: Composite Heater
- Cord length: 1.2m
- Total Length: 130mm (with T52-I015 Tip)*
- Weight: 33g (with T52-I015 Tip)*
- *Measured without cord
Soldering Tips (T52)
T52 Soldering Tips not included, sold separately
Replacement Parts
| Part No. | Product |
| FH215-814 | Iron Holder with cleaning sponge and brush For FX-9706 |
| AC5000 | Cleaning Brush |
| A5038 | Cleaning Sponge |
| A5064 | Iron cover For FH-215 and FH-800 |
