FX-9708 Heavy Duty N2 Soldering Iron / Conversion Kit
FX-9708 Heavy Duty N2 Soldering Iron / Conversion Kit

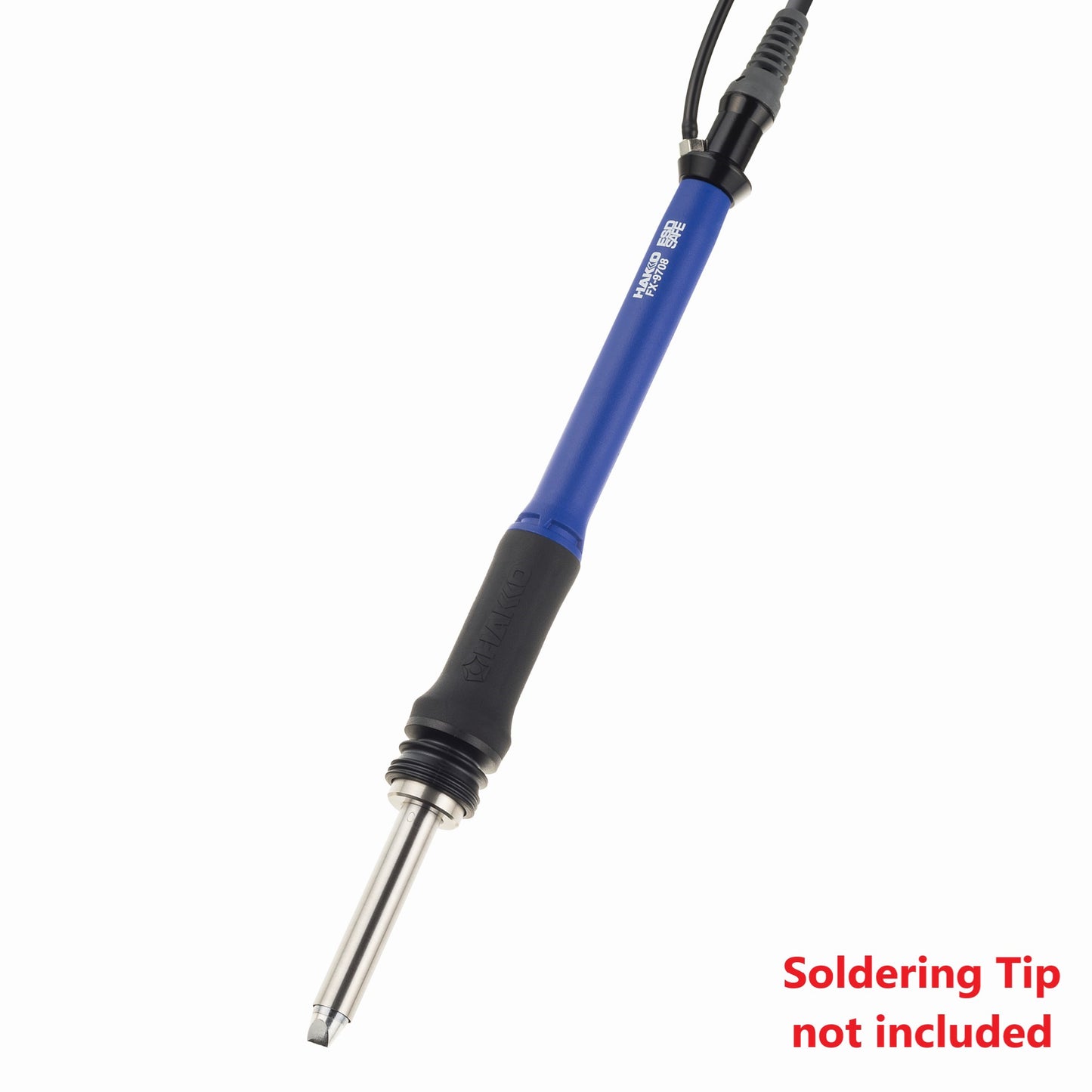

*Soldering Tip NOT included

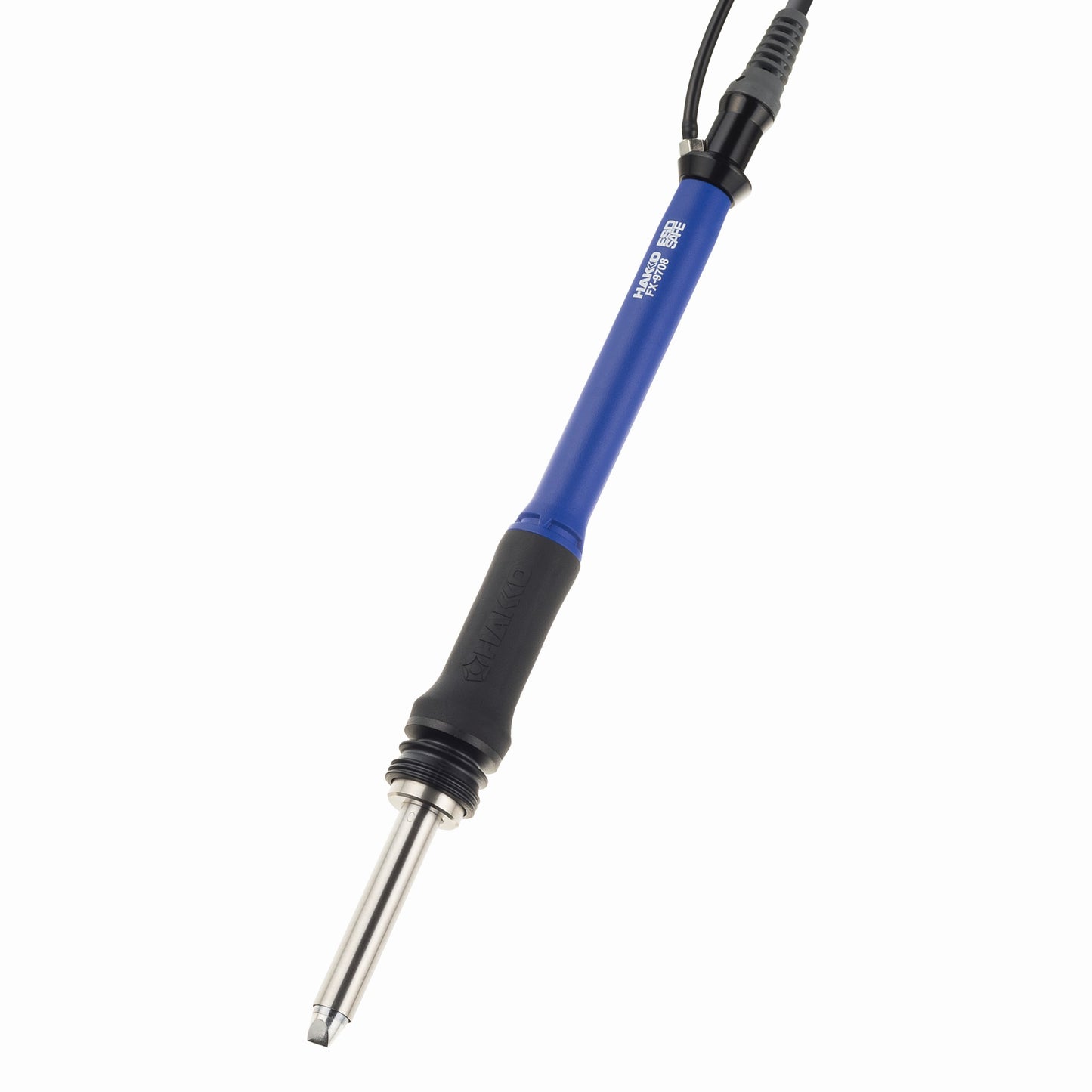

- Standard Soldering Iron for FX-972
- 200W High Power
- Nitrogen Soldering Iron

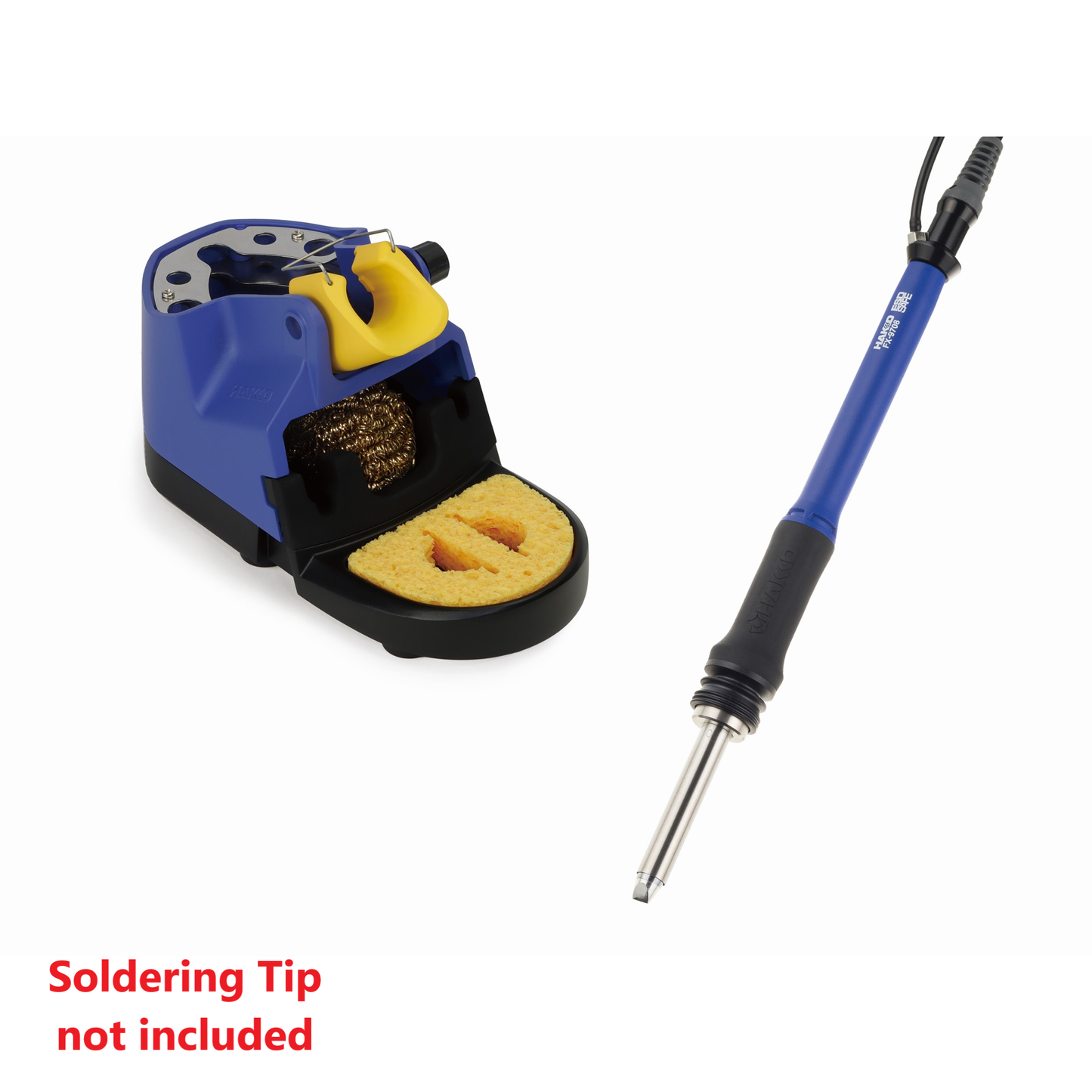

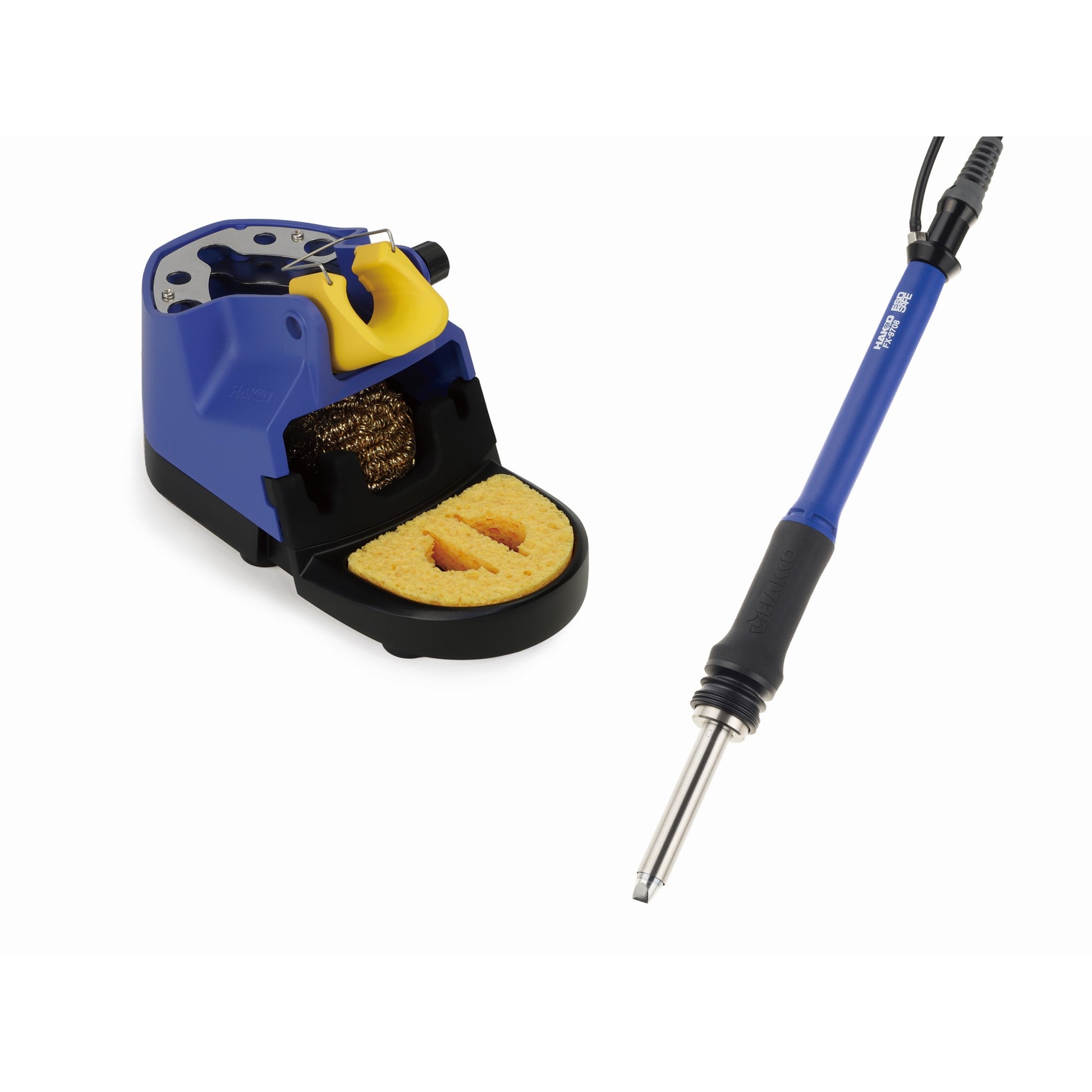

The conversion kit comes with a FH-220 Iron Holder to support the handpiece with a new receptacle piece, extra tip storage, easily removable back as well as a cleaning sponge and brass wire.
Applicable Models |
FX-972 |
Packing List
Iron Only | FX9708-81 |
Soldering Iron* | FX-9708 |
Instruction Manual | - |
Conversion Kit | FX9708-811 |
Soldering Iron* | FX-9708 |
Iron Holder | FH-220 |
Cleaning Wire |
A1561 |
Cleaning Sponge | A5038 |
Instruction Manual | - |
*Soldering Tip and Station NOT included
Features
Heavy Duty Soldering Station with High Power of 200W
Ideal for high-heat dissipative workpieces like large sized components eg shielded case and coil or multi-layered PWB.
Easy Handling
With a cable diameter of 4.4 mm, the thin cable enables the operator to work smoothly without stress.
Reduction of cycle time by approx 27%
The synergies of the new heater, newly designed tip shapes as well as the 200W power helps to reduce the cycle time and improves work efficiency.
Flow up effective soldering tip with v-groove
4 new types of soldering tips with V-groove improves solder flow-up with a wider contact area to the lands or leaded part
Safety Design for tip replacement without heat resistant pad
Easily and safely remove and insert a tip with the tip removing attachment and tip insertion holder.
N2 Soldering Iron for Soldering micro components
The hot N2 gas preheats heat-sensitive components like a ceramic condenser and protects them from heat shock. It also prevents tip oxidation by blocking oxygen with N2 gas.
Specifications
FX-9707 / FX-9708 Soldering Iron
- Soldering Tip Series: T53
- Iron Holder: FH-220
- Power Consumption: 200W (24V)
- Temperature Range: 50 - 500 °C
- Tip to ground resistance: <2Ω
- Tip/Nozzle to ground potential: <2mV
- Heating Element: Composite Heater
- Cord length: 1.2m
- FX-9707 - Total Length: 222 mm (with D24 tip)
- FX-9707 - Weight: 41g (with D24 tip)
- FX-9708 - Total Length: 231 mm (with D24 tip)
- FX-9708 - Weight: 47g (with D24 tip, nozzle assembly C)
- Length and Weight measured without cord
Required Equipment for N2 System
Part No | Product Name |
FX-971 / FX-972 | Soldering Station |
FX-9708 | N2 Soldering Iron |
T39 T50 |
Soldering Tip |
T39 Nozzle Assembly T50 Nozzle Assembly |
Nozzle Assembly |
FX-780 / FX-781 | N2 Generator |
FX-791 | N2 Flowmeter |
- | Other Equipment* |
*Required regulator, filters, compressors etc are not available in Hakko's product line. It needs to be purchased separately.
Soldering Tip
T53 (not included, sold separately)
Nozzle Assembly for T53
A nozzle assembly is needed for the FX-9708 iron to function.
Soldering Tip | Nozzle Assembly |
|
B5345 (A) |
|
B5346 (B) |
|
B5347 (C) |
Replacement Parts
Part No. | Product |
B5071 | Nipple with O-ring |
B2578 | O-ring (inner diameter 5.6) |
FH220-81 | Iron Holder with Cleaning Sponge and Wire |
A1561 | Cleaning Wire |
A5038 | Cleaning Sponge |
B5321 | Tip Removing Attachment for FH-200 |
B5312 | Iron Receptacle with Knob and Retaining Clip |
B5313 | Knob |
B2791 | Retaining Clip |
