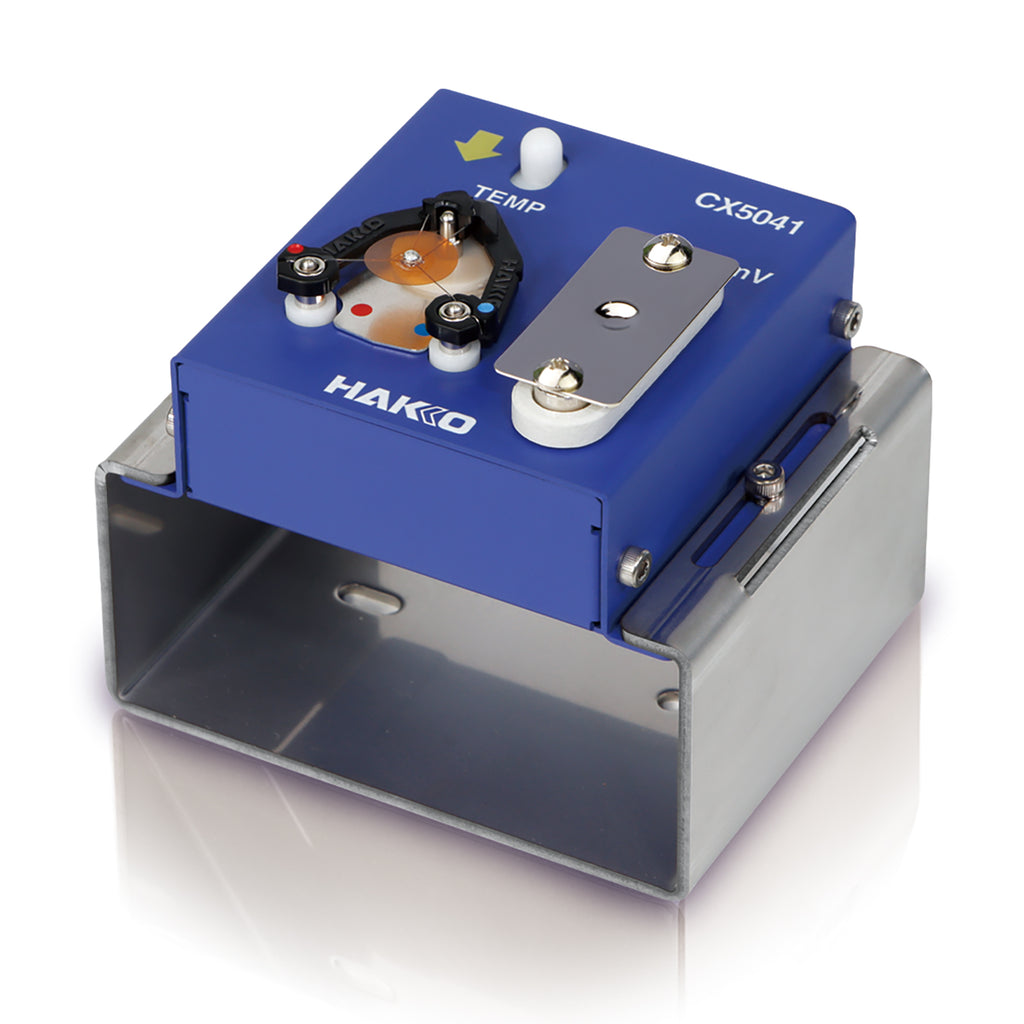

CX5041 Auto Temperature Measurement and Adjustment System (For HU-200)

Automated Tip Temperature Measurement to Improve Production Efficiency

Automatically measure, adjust and record:

• Tip Temperature
• Tip to Ground Resistance
• Tip to Ground Potential

*FG-101B Soldering Tester (Sold separately) is required to use CX5041

Features

Automated tip temperature measurement and adjustment

By setting the measurement contents, tip application position and solder feed amount in the program, the tip temperature measurement can be performed automatically at any time. If there is a difference between the set temperature and the actual tip temperature, it is automatically adjusted (Can be set arbitrarily). There is no need to stop/pause the equipment and open/close the safety cover.

Automated recording of measurement results

Measurement results are automatically saved for each measurement. This automates time-consuming tasks such as visual inspection, manual recording in a ledger, and subsequent data input into an Excel file. Thereby it leads to improve work efficiency.

Three measurement patterns can be set

Measurement items such as tip temperature, tip to ground resistance (leakage voltage), and tip to ground potential can be set arbitrarily. By setting measurement items in advance, such as tip temperature only or tip temperature and tip to ground resistance, you can call up the necessary settings as necessary.

Specification

*Measurement range based on HAKKO FG-101B
**Weight measured without cord
