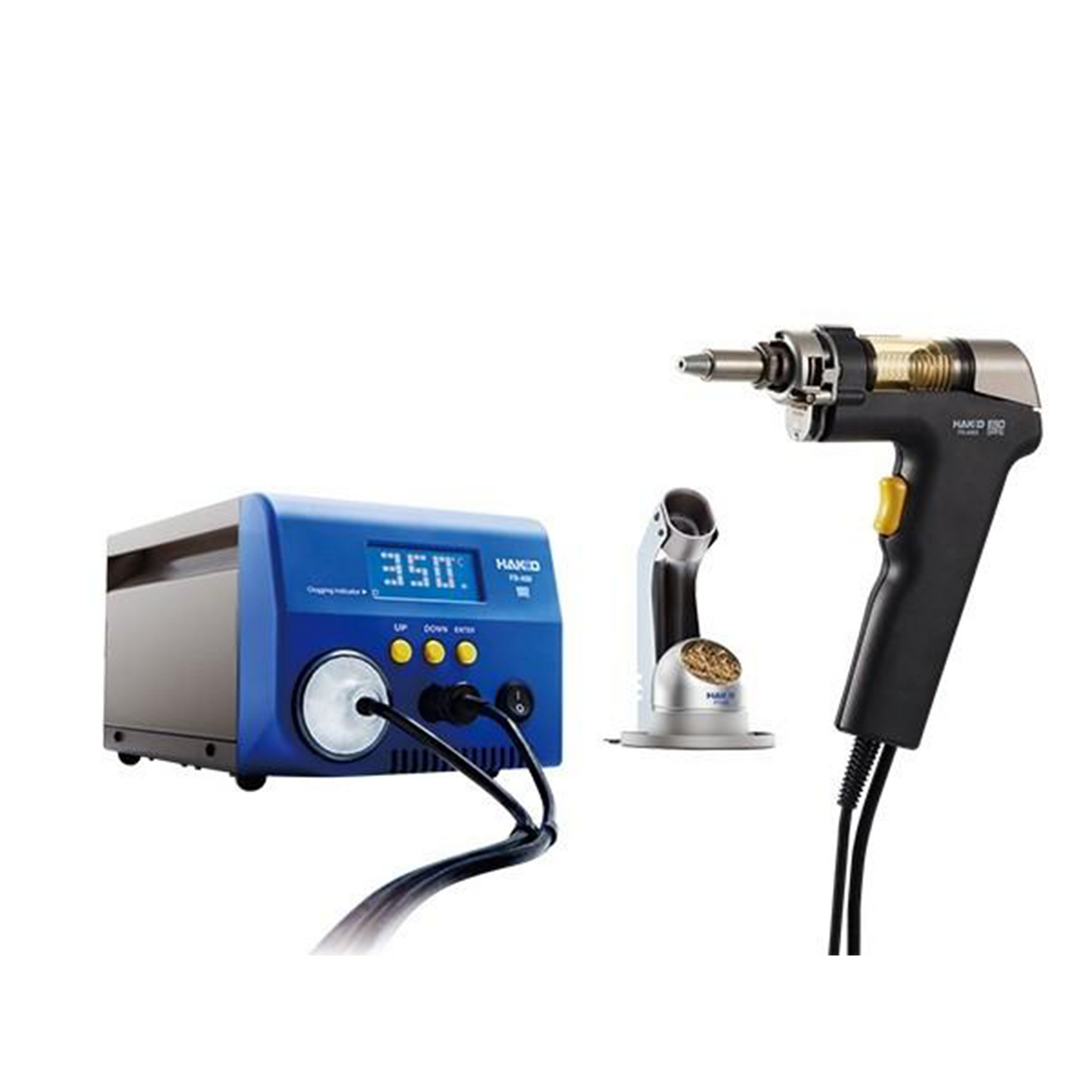

FR400-67 Desoldering Tool 230V
FR400-67 Desoldering Tool 230V
Couldn't load pickup availability
- Heavy-duty Desoldering Tool with built-in vacuum pump
- Quick and secure desoldering even on high heat capacity and high heat dissipation PWB with super power
- Secure desoldering with valve function
- Solder clogging was reduced featuring Anti Clogging Function
Please refer to the User Manual for detailed specifications.
Features
300 W tremendous power enables nearly impossible desoldering on PWB with high heat capacity and high heat dissipation property.
300 W tremendous power makes incredible heating.
Secure Desoldering, valve function that suctions with high pressure
- Suction starts 0.2 seconds after pulling the trigger for instance and high pressure suction to achieve complete desoldering.
Reduction of solder clogging
- Improved heating ability and Anti clogging function ensure suctioned solder be carried to filter pipe and reduce solder clogging.
Quick nozzle replacement with special tool
- Nozzle Quick Changer compatible handle (FR-4003) enables one-action nozzle replacement
Improvement in maintainability
- Easy heater replacement
- Tool box with maintenance kit
- New filter pipe 3 times larger
- Larger filter and more transparency
Packing List
- Station
- Desoldering tool(FR-4003)
- Power cord, Iron holder (with cleaning wire)
- Tool box (Cleaning pin for ø1.0 mm)
- Cleaning pin for heater
- Cleaning drill for ø1.0 mm
- Nozzle wrench
- Filter [qty 2]
- Ceramic paper filter [qty 4])
- Instruction manual
Specifications
Model No. FR-400(Desoldering tool: FR-4003)
- Power consumption: 320W
- Temperature range: 350 to 500ºC
- Temperature stability: ±5ºC at idle temperature
Station
- Output voltage: AC 29V
- Vacuum generator: Vacuum pump, double cylinder type
- Vacuum pressure: Max. 80kPa (600mmHg)
- Suction flow: 15L/min.
- Dimensions: 166(W)×137(H)×264(D)mm
- Weight: 5.7kg
Desoldering Tool
- Power consumption: 300W (29V)
- Nozzle to ground resistance: <2Ω
- Nozzle to ground potential: <2mV
- Heating element: Composite heater
- Standard nozzle: Φ1.0mm type (No.N60-02)
- Cord length: 1.2m
- Total length: 183mm (with Φ1.0mm nozzle)
- Weight: 270g (with Φ1.0mm nozzle)
* The suction flow is measured at the filter case suction port of station.
* Total length and weight (w/o cord, hose)
Soldering Tips
N60 Series | |
Nozzle |
|
Replacement Parts
Name |
Specifications |
FR4003-81 |
Desoldering tool FR-4003, 300W (30V), w/Φ1.0mm nozzle |
A5054 |
Heating element 300W (30V), for FR-4003 |
B5079 |
Enclosure pipe for FR-4001 |
B5184 |
Filter pipe assembly with ceramic paper filter and related parts |
B5081 |
Filter pipe assembly with ceramic paper filter and related parts |
A5045 |
Ceramic paper filter for FR-4001 (qty 10) |
A5019 |
Ceramic paper filter (qty 10) |
B5080 |
Pre-filter |
A5017 |
Front holder |
A5018 |
Filter holder |
A5020 |
Filter (qty 10) |
A1013 |
Diaphragm (qty 2) |
A1014 |
Valve plate (qty 2) |
C5011 |
Tool box |
B5082 |
Nozzle wrench |
B1087 |
Cleaning pin for nozzle Φ1mm |
B1215 |
Cleaning pin for heating element |
B1303 |
Cleaning drill for nozzle Φ1mm |
B1306 |
Drill holder for nozzle Φ0.8/1mm |
B1309 |
Drill (nozzle Φ1mm, qty 10) |
599-029 |
Cleaning wire |
FH400-82 |
Iron holder <w/ cleaning wire> |
Optional Parts
Part No. |
Name |
C5045 |
Nozzle quick changer for FR-4003 |
B5227 |
Receptacle for C5045 |
B5229 |
Oval nozzle positioning jig |
FH400-81 |
Iron holder <w/ cleaning sponge> |
A1519 |
Cleaning sponge (yellow) |
B1086 |
Cleaning pin for nozzle Φ0.8mm |
B1088 |
Cleaning pin for nozzle Φ1.3mm |
B1089 |
Cleaning pin for nozzle Φ1.6mm |
B1302 |
Cleaning drill for nozzle Φ0.8mm |
B1304 |
Cleaning drill for nozzle Φ1.3mm |
B1305 |
Cleaning drill for nozzle Φ1.6mm |
B1307 |
Drill holder for nozzle Φ1.3/1.6mm |
B1308 |
Drill (nozzle Φ0.8mm, qty 10) |
B1310 |
Drill (nozzle Φ1.3mm, qty 10) |
B1311 |
Drill (nozzle Φ1.6mm, qty 10) |
