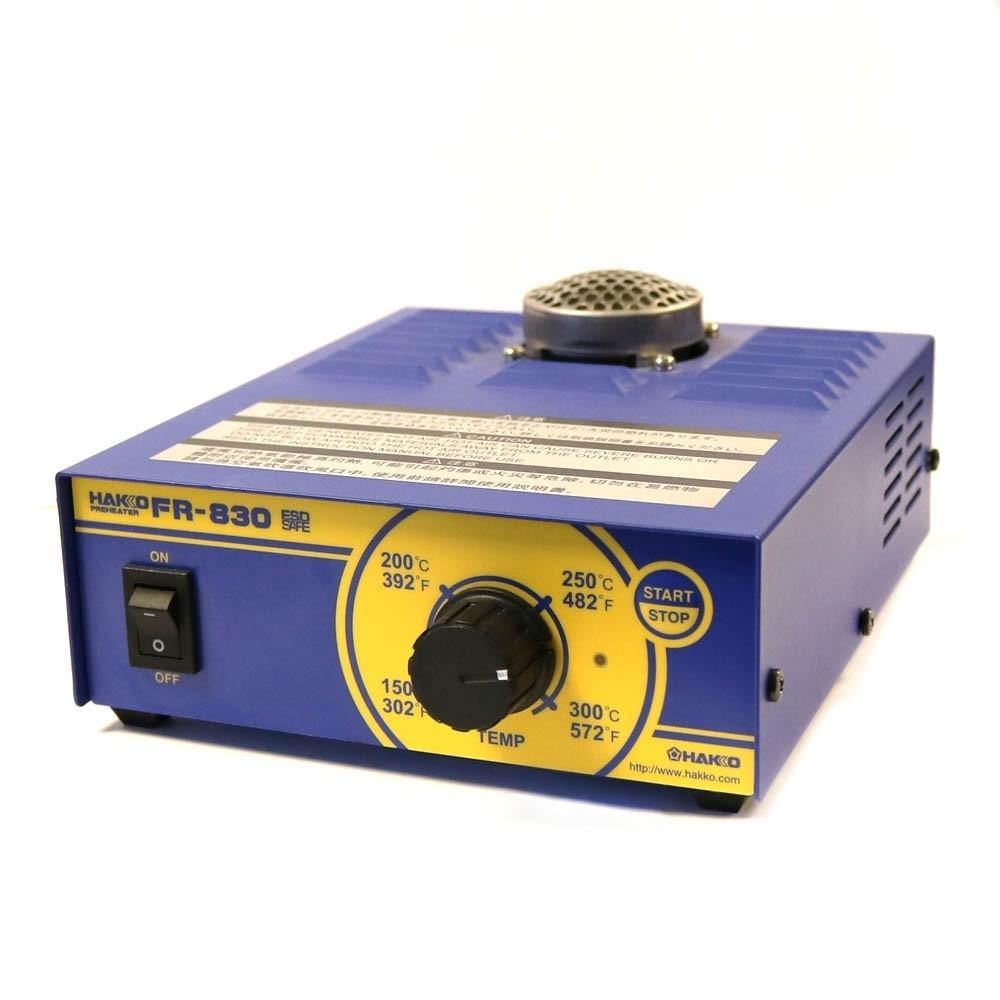

FR830-09 Pre-heater 230V
FR830-09 Pre-heater 230V
AVAILABILITY: PRE-ORDER | LEAD TIME: 10-16 WEEKS
Compact pre-heater with quick start-up and excellent heat recovery.
- Compact pre-heater best suited for heat processing on localized areas
- Featuring quick heatup and less variations in temperature
- Best suited for pre-heating of multi-layer PWBs
Features
1. Temperature regulating function
- Temperature range 150-300°C(302-572°F)
- CAL enables fine adjustment of temperature.
2. Preheating in short time
- The improved air outlet shorten preheat time compared with air conventional product.
- Hot air temperature 300ºC
- A gap between the hot air outlet and the PWB for 10mm
- Attach sensors to top/under sides of P.W.B and measure temperature.
3. Suitable for multi-layer board preheating.
4. Automatic cool-down function mounted.
- Pushing the "START/STOP" button at the end of work automatically activates the cool-down function.
5. Compact, lightweight, and slightly larger hot air outlet.
6. Controlling the temperatures of Hot Air Rework System and workpiece using the Temperature Probe
- Measure temperatures of Hot Air Rework System and workpiece using the Temperature Probe for Hot Air Rework System (No. C1541) and thermometer (HAKKO FG-100/HAKKO FG-101B) to protect the workpiece.
Specifications
Model No. FR-830
- Power consumption 250W (230V)
- Air flow: 0.15m3/min. (fan capability)
- Temperature range: 150 to 300ºC (Above the blow exit)
- Dimensions:140(W)×75(H)×185(D)mm
- Weight: 0.75kg
* Weight (w/o cord)
* Height(H) is the distance from bottom of the feet to the top of the hot air outlet.
Packing List Unit, Power cord, Instruction manual
Accessories
Replacement Parts
|
Part No. |
Name |
|
A1569 |
Heating element, 100-120V |
|
Heating element, 200-240V |
Optional Parts
|
Part No. |
Name |
|
B3263 |
Extension pipe with lid |
|
B2763 |
Hand switch |
|
Foot switch |
|
|
C1391B |
Nozzle tray |
|
C1392B |
Rework fixture |
|
C1390C |
Omnivise |
