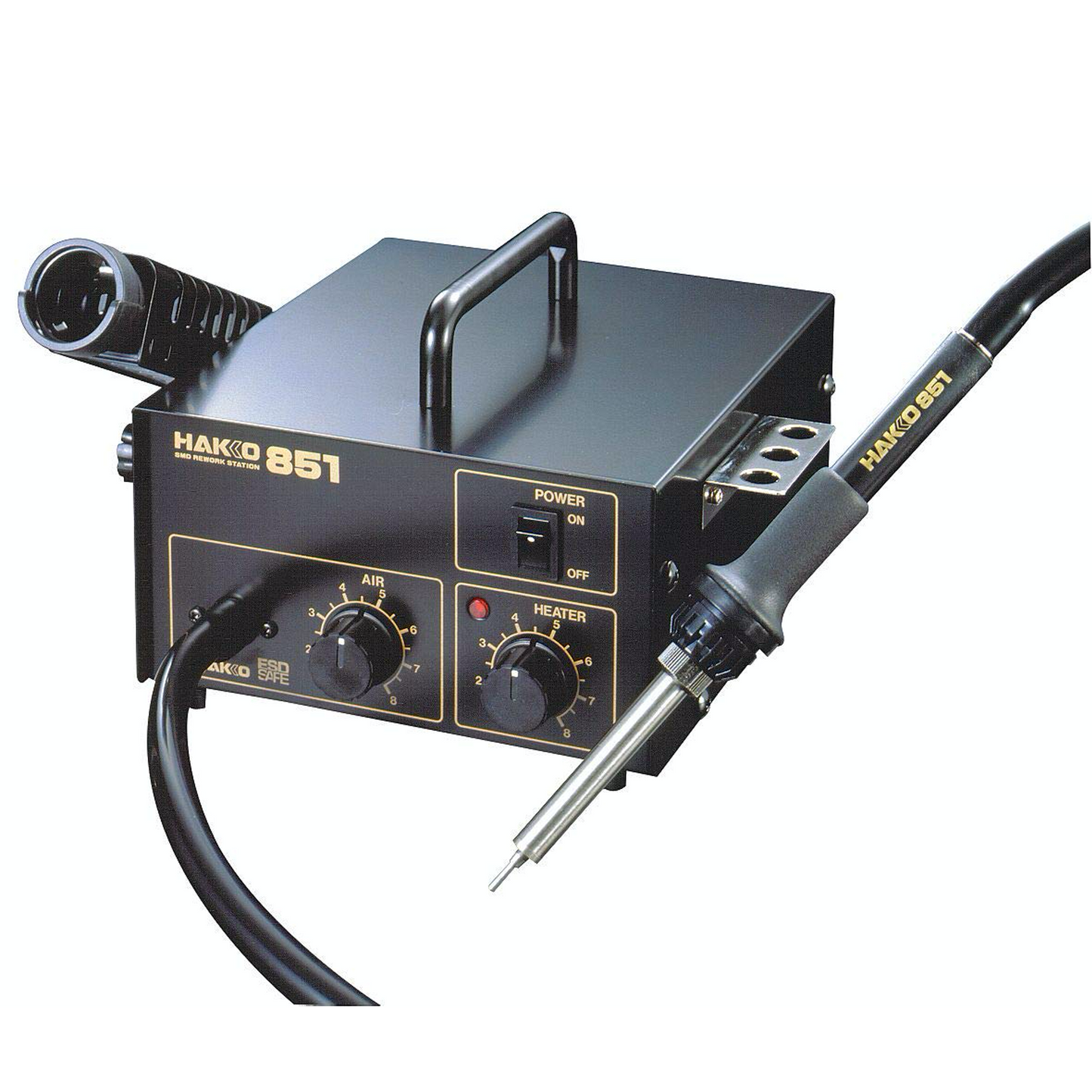

FR851-9 SMD Rework Station 230V

FR851-9 SMD Rework Station 230V

Regular price $669.00 SGD
Regular price $1,360.00 SGD Sale price $669.00 SGD
Sale Sold out

AVAILABILITY: PRE-ORDER | LEAD TIME: 10-16 WEEKS

  • Single-nozzle hot air rework system that is perfect for the repair or local heating of small surface-mounted components
  • Slim grip is ideal for work in narrow spaces
  • Air volume and temperature settings can be adjusted to provide the optimum working temperature
Features

Adjustable temperature control: 100ºC-540ºC

  • Air volume selector switch with ultra-light setting.
  • ESD design and grounding measure to minimize damage from current leakage and electrostatic discharge.

Applications

  • Soldering and desoldering of small surface-mounted chip components.
  • Shrinking tubing, heating tests and local heating operations.
Packing List
  • Unit
  • Handpiece holder
  • Nozzle holder
  • Instruction manual
Specifications

Model No. 851

  • Power consumption: 85W
  • Hot air temperature: 100 to 540ºC

Station

  • Power consumption: 5W
  • Air flow: 6L/min. (Max.)
  • Dimensions: 167(W)×101(H)×182(D)mm
  • Weight: 1.8kg

Handpiece

  • Power consumption: 80W
  • Standard nozzle: Φ2.0mm (No.A1066)
  • Total length: 217mm
  • Weight: 180g
  • * Dimensions and weight for station (w/o cord, handpiece)
  • * Total length and weight for handpiece (w/o cord)
Soldering Tip
Nozzle Specification
A1147 1.0 mm dia
A1065 1.5 mm dia
A1066 2.0 mm dia
A1067 3.0 mm dia
Replacement Parts

Part No.

Product

A1064

Heating element 100V

A1068

Heating element 120V

A1070

Heating element 220V

A1071

Heating element 110V

A1072

Heating element 230V

A1073

Heating element 240V

B1190

Holder

B1212

Nozzle holder
