FR872-07 IR Preheater 230V
FR872-07 IR Preheater 230V
- Large-size Preheater for PWB up to 330mm x 250mm
- 4 Independent switchable work grid partitions
- Infrared carbon heater
New large-size preheater for large-size boards to make your job easier
- Larger heating area for large-size boards
Four-Zone heating area
- The heating area has been split into four zones that can be independently activated, making it possible to heat all of the board or only necessary areas when reworking large boards or to turn off unnecessary areas when reworking small boards.
High-efficiency carbon heater
- New high-efficiency heating elements increase preheat performance striking a balance to mitigate IR shadowing while reducing glare from full spectrum heaters.
Four selectable modes to fit your process
Adjustable board attachment guides
- Board attachment guides can be adjusted easily to suit the size of the board. Boards can be attached and removed easily after the guides have been adjusted to fit.

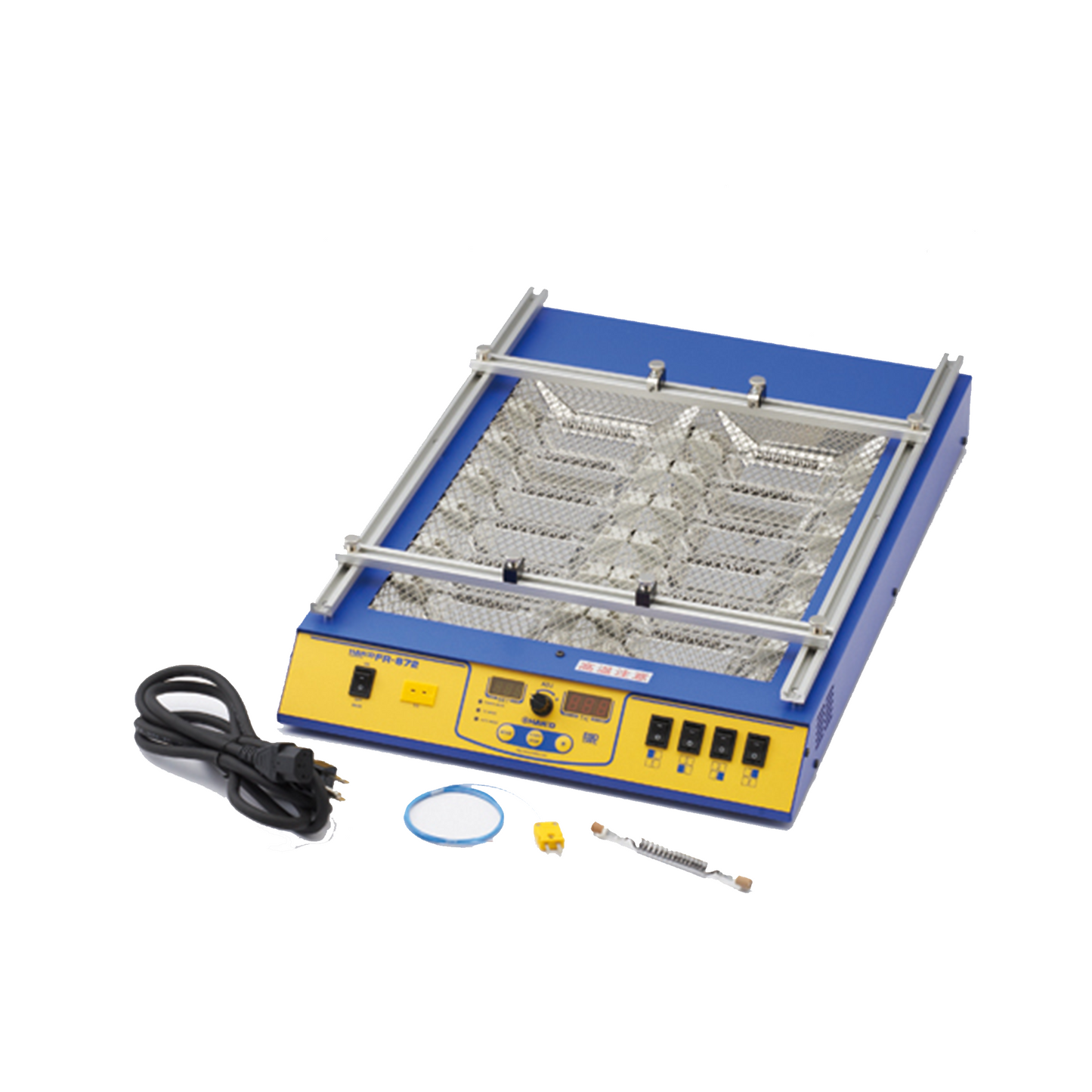

Unit, Thermocouple (type K), Power cord, Heater lamp (spare), Instruction manual
- Power consumption : AC230V：1,250W
- Operation mode : Power mode, T/C mode Auto power mode, auto T/C mode
- Setting range : Power mode 0 to 100%
- Setting range : T/C mode 50 to 200ºC
- Setting range : Set time 0 to 999seconds
- Heating element : High efficiency carbon heaater
- Effective heated area : 224(W)×266(D)mm
- Heater area dimensions : 286(W)×350(D)mm
- Heater zone : 4
- Temperature sensor : K-type thermocouple
- Heater lifetime : 2,100hours
- Heater control : Power mode : Percentage-based system T/C mode : PID control
- External connections : Start signal input possible
- Dimensions : 230V：360(W)×97(H)×524(D)mm
- Weight : 5.6kg
Heating element, 100-120V
Heating element, 200-240V
