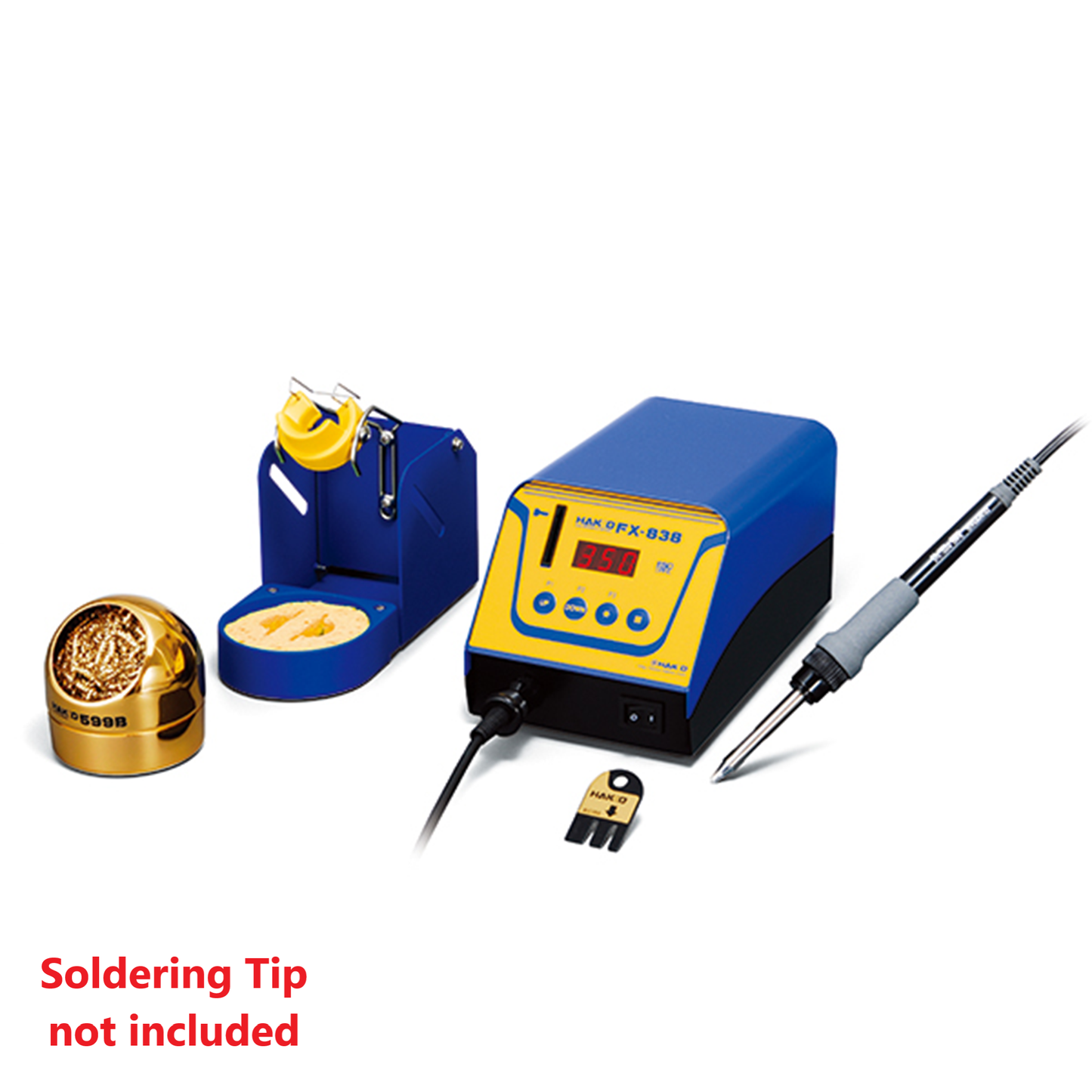

FX-838 Soldering Station 230V

FX-838 Soldering Station 230V

Regular price $807.00 SGD
Regular price $814.00 SGD Sale price $807.00 SGD
Sale Make an Enquiry

Contents

Main Unit, Soldering Iron FX-8301, Control Card B2388, Power Cord, Iron Holder FH200-02, Connecting Cable B3253, Heat Resistant Pad B2300, Instruction Manual. *Tips not included

Availability: PRE-ORDER | LEAD TIME: 8-16 WEEKS

Can be used with:

  • High powered 150W soldering iron with high heat capacity
  • Best suited for soldering of power-supply boards, heat sinks and shield cases
  • Applicable also for multilayer boards with micro components
  • Optional soldering iron for N2 System

Please refer to the user manual for more tips!

Features

High Power 150W Soldering Station for various applications from large to fine components.

  • Great thermal recovery improves the soldering environment.
  • It allows soldering at lower set temperatures.
  • It can shorten the soldering working time, which minimize concern about the influence of heat on components and tip life.
  • It is suitable not only for high-power required working condition such as soldering multilayer boards or shield cases but also for microsoldering.

Operate at maximum temperature of 500 degrees
Soldering power-supply boards easily with the 150W high power hand piece.

High power with low voltage safety design
This unit has not only high power but also low output voltage (27V) , which is lower than the world safety output voltage of 30V.

Easy to replace tips
Simply loosen the nipple slightly, remove the tip, insert a new tip and tighten the nipple.

Cartridge style integrated heater improves thermal conductivity of the tips
The T20 series soldering tips are available in 20 different shape as replacement, some of which are suitable for fine components.

Temperature preset mode saves time and effort
Input three frequently-used temperatures in advance and recall them with one push of a button. It saves the troublesome process of setting condition, tailored to the tip-shape, component and work.

N2 System
Combination of optional handpiece allows use of N2 system.


Packing List
Soldering Station FX-838
Soldering Iron* FX-8301
Control Card B2388
Power Cord -
Iron Holder (with cleaning sponge and wire) FH200-02
Connecting Cable B3253
Heat Resistant Pad B2300
Instruction Manual -

*Soldering tip not included, kindly purchase T20 series tips separately

Specification

Model No. FX-838

  • Power consumption: 158W
  • Temperature range: 200 to 500ºC
  • Temperature stability: ±5ºC at idle temperature

Station

  • Output voltage: AC 27V
  • Dimensions: 110(W)×110(H)×205(D)mm
  • Weight: 3.2kg

Soldering Iron

  • Power consumption: 150W (27V)
  • Tip to ground resistance: <2Ω
  • Tip to ground potential: <2mV
  • Heating element: Ceramic heater
  • Cord length: 1.2m
  • Total length: 175mm (with 2.4D tip)
  • Weight: 31g (with 2.4D tip)
  • * Total length and weight (w/o cord)
Replacement Parts

Name

Specifications

599B-02

HAKKO 599B tip cleaner

FH200-02

Iron holder with cleaning sponge and power save function

FX8301-01

Soldering iron FX-8301, 150W (27V)

B3253

Connecting cable

B2388

Control card

B2300

Heat resistant pad

FH200-01

Iron holder with cleaning wire and power save function

A1519

Yellow cleaning sponge
* The replacement for A1536.

A1536

Green cleaning sponge
* Discontinued. The replacement is "A1519".

B3524

Nipple

599-029

Cleaning wire


Optional Parts

Part No.

Name

FX8302-01

Nitrogen Soldering iron FX-8302, 150W (27V)

Soldering Tips:
T20 Series

View full details
