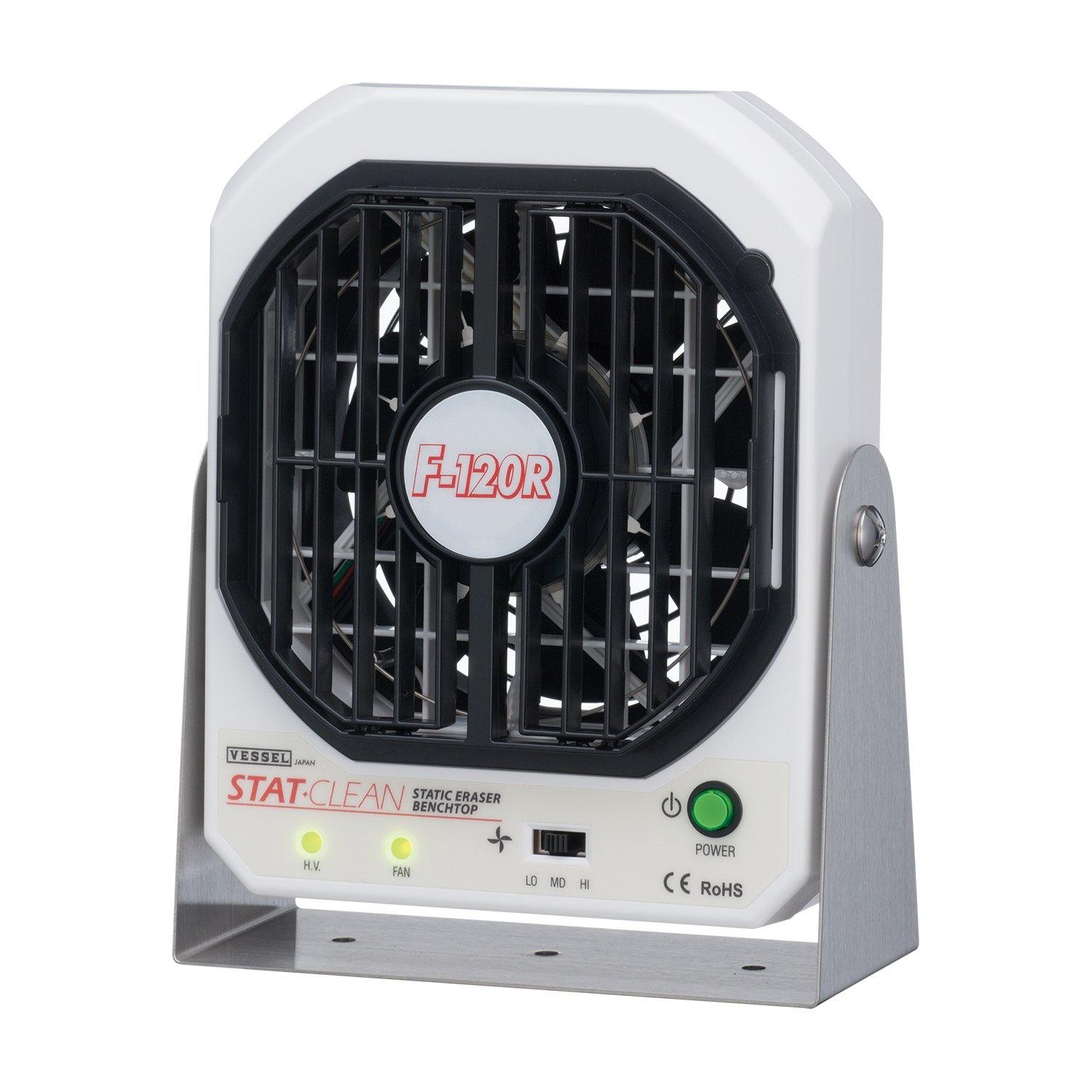

Vessel F120R-E Ionizing Fan
Reliable, long-lasting ionizing performance with butterfly louvers for wider and far reach static erasing area
Download Brochure / Instruction Manual
Product Info
Vessel F120R-E Ionizing Fan comes with a newly developed piezoelectric transformer that makes the model slim and compact.
- Butterfly louvers enables changes in wind directions.
- Fan speed can be adjusted in three steps.
- Easy maintenance with easily-replaced electrode needle unit.
- Equipped with terminals for alarm signal output, convenient for incorporation into equipment.
- Input voltage is a 24VD low voltage which enhances safety when assembled into equipment.
-
Ion balance is within ±10V. Good for electronic parts vulnerable to static electricity.
- RoHS compatible and CE certified
- F120S-E is a silent type with mild airflow.
Specifications
- Dimensions: 198 x 162 x 69.5mm
- Weight: 900g
- Applied Voltage: AC10kV(p-p)
- Power Supply: DC24V +/- 5%
- Current Consumption: 700mA (max)
- Noise Level: 55dBA
- Fan Speed: 3.66m3/min (max)
- Ionizing Method: Piezoelectric High-Frequency
- Ion Balance: +/- 10V
- Decay Time: within 1.5 sec
Packing List
- AC adapter AD24-IT-EX (100 to 240V AC)
- AC cable(1.8m)
