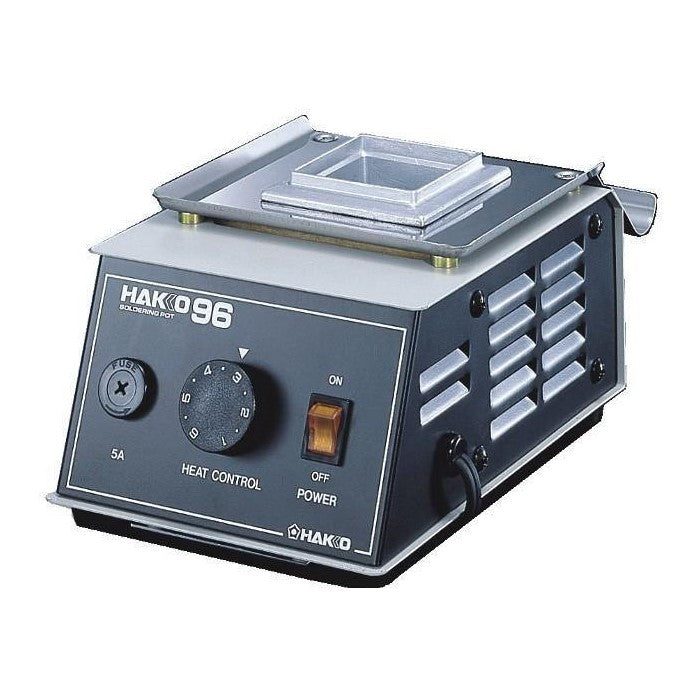

96G-V23 Soldering Pot 230V [Discontinued]
96G-V23 Soldering Pot 230V [Discontinued]
Discontinued 03/2023
This product is replaced by FX-305
- Analog-type low-cost model
- Temperature can be adjusted just by turning a knob during the operation
Features
Large-capacity solder bath holds a larger amount of solder, the solder temperature remains high even during continuous soldering operations.
- The stainless steel solder bath and other heavy-duty components offer greater durability, while the solder overflow prevention rim around the bath provides greater safety.
- The raised rim around the bath enhances soldering and desoldering efficiency.
- A waste collector adds a final tough of operating ease and efficiency.
Dimensions
Specifications
|
Model No. |
96 |
96-1 |
|
Power consumption |
200W |
|
|
Dimensions |
135(W)×105(H)×224(D)mm |
135(W)×120(H)×224(D)mm |
|
Weight |
1.5kg |
1.6kg |
Pot
|
Temperature range |
100 to 450ºC |
100 to 380ºC |
|
Dimensions of solder pot |
50(W)×54(H)×50(D)mm |
70(W)×64(H)×70(D)mm |
|
Molten solder capacity |
0.85kg |
1.2kg |
* Weight (w/o solder, cord)
Accessories
Replacement Parts
| Name | Specifications |
| 96-HC-V11 | Heating element 110V for 96/96-1 |
| 96-HC-V12 | Heating element 120V for 96/96-1 |
| 96-HC-V22 | Heating element for 220V 96/96-1 |
| 96-HC-V23 | Heating element 230V for 96/96-1 |
| 96-HC-V24 | Heating element 240V for 96/96-1 |
| B2932 | Spatula |
| 96-2 | Solder pot 50mm x 50mm |
| 96-1-2 | Solder pot 70mmx 70mm |
| Part No. | Name |
| A1310 | Temperature probe for soldering pot |
| A1148 | Nozzle (IC 14, 16 Pins) |
| A1149 | Nozzle (IC 20 Pins) |
| A1150 | Nozzle (IC 28 Pins) |
| A1151 | Nozzle (IC 42 Pins) |
| A1152 | Nozzle (Connector 40 Pins) |
| A1153 | Nozzle (Connector 50 Pins) |
| A1154 | Nozzle (Shrink IC 64 Pins) |
