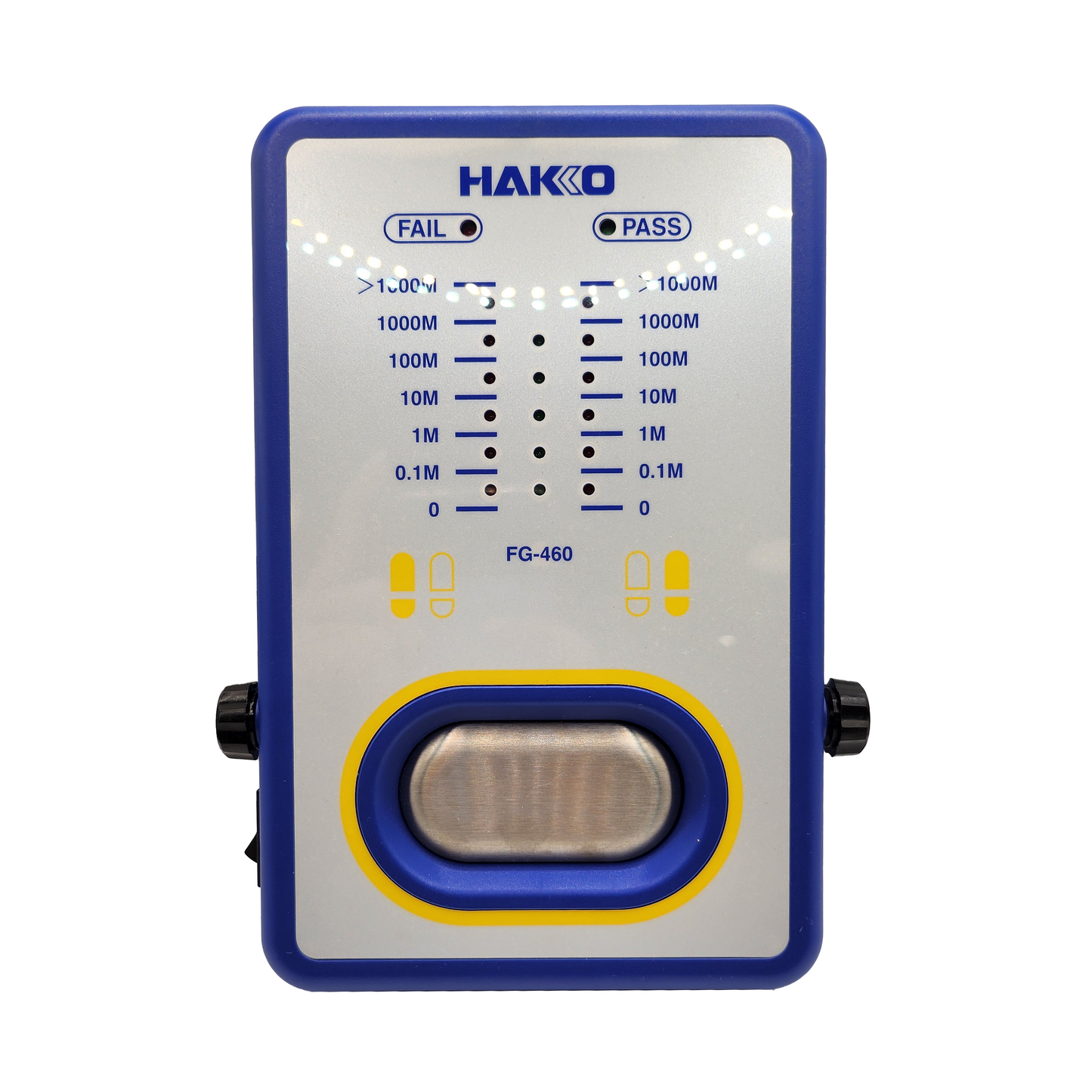

FG-460 Footwear Tester DEMO UNIT (no mounting base and screw)

FG-460 Footwear Tester DEMO UNIT (no mounting base and screw)

CLEARANCE

$474.60 SGD
$474.60 SGD
Sale Make an Enquiry

CLEARANCE/DEMO DISCLAIMER:

  • Clearance/demo items are non-exchangeable and non-refundable. No cancellation or returns are accepted.
  • Clearance/demo items are limited in type and quantity. Items are whilst stocks last.
  • All clearance items are unused, but may have old manufacturing dates/old stock. It may also have some stains or have missing, yellowed, dirty or torn packaging.
  • Demo items may have been used for display or demonstrative purposes. It may also have some scratches - see actual product pictures.
  • Clearance/demo items are NOT covered under warranty.
  • Orders placed on clearance/demo items are deemed to have accepted the above conditions.

PLEASE NOTE BEFORE PURCHASE: The FG-460 Footwear Tester has been discontinued. The calibration certificate for this unit has also expired.

Specifications
Model No. FG-460
Rating DC 24 V 33 mA
Measurement voltage DC 20 V
Measurement range: upper evaluation limit 1000 MΩ (1 × 109 Ω)
100 MΩ (1 × 108 Ω)
10 MΩ (1 × 107 Ω)
Measurement range: lower evaluation limit 1 MΩ (1 × 106 Ω)
0.1 MΩ (1 × 105 Ω)
R < 0.1 MΩ (1 × 105 Ω)
Measurement range: conductivity evaluation R < 0.1 MΩ (1×105 Ω)
Accuracy : R ＜ 0.1 MΩ ±5%
Accuracy : 0.1 MΩ ≦ R ≦ 100 MΩ ±10%
Accuracy : 100 MΩ ＜R ±8%
Operating environment Ambient temperature / Humidity range : 0 to 40ºC, max.80% RH (without condensation)
Environmental conditions Applicable rated pollution degree 2 (According to IEC/UL61010-1)
Dimensions 120 (W) × 30 (H) × 185 (D) mm
Weight 0.55 kg

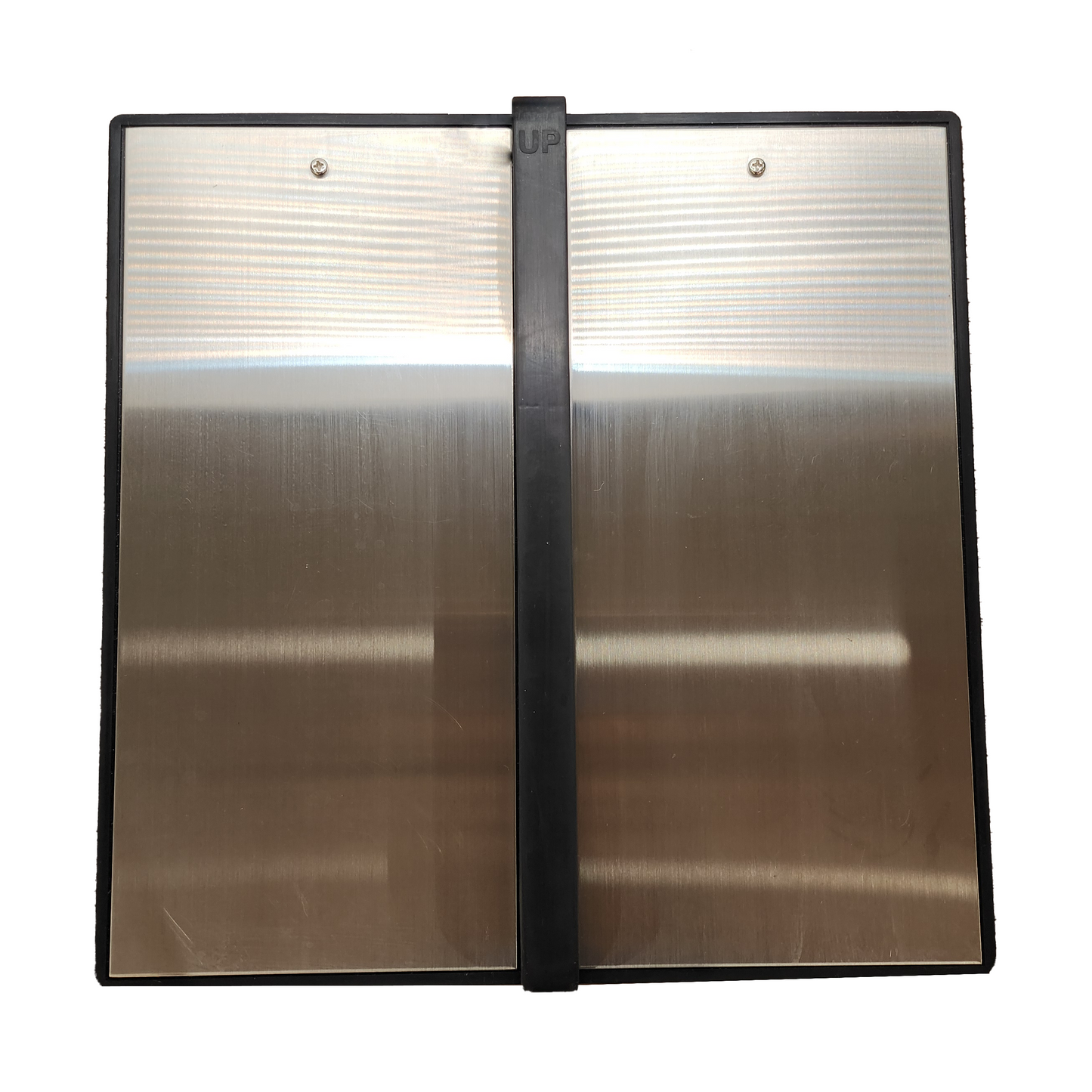

Test plate

Cord length 1.6 m
Dimensions 300 (W) × 30 (H) × 300 (D) mm
Weight 1.9 kg



AC adapter

Output voltage 24 VDC



  •  Weight for main unit (including mounting base)
  •  Weight for test plate or AC adapter (without cord)
