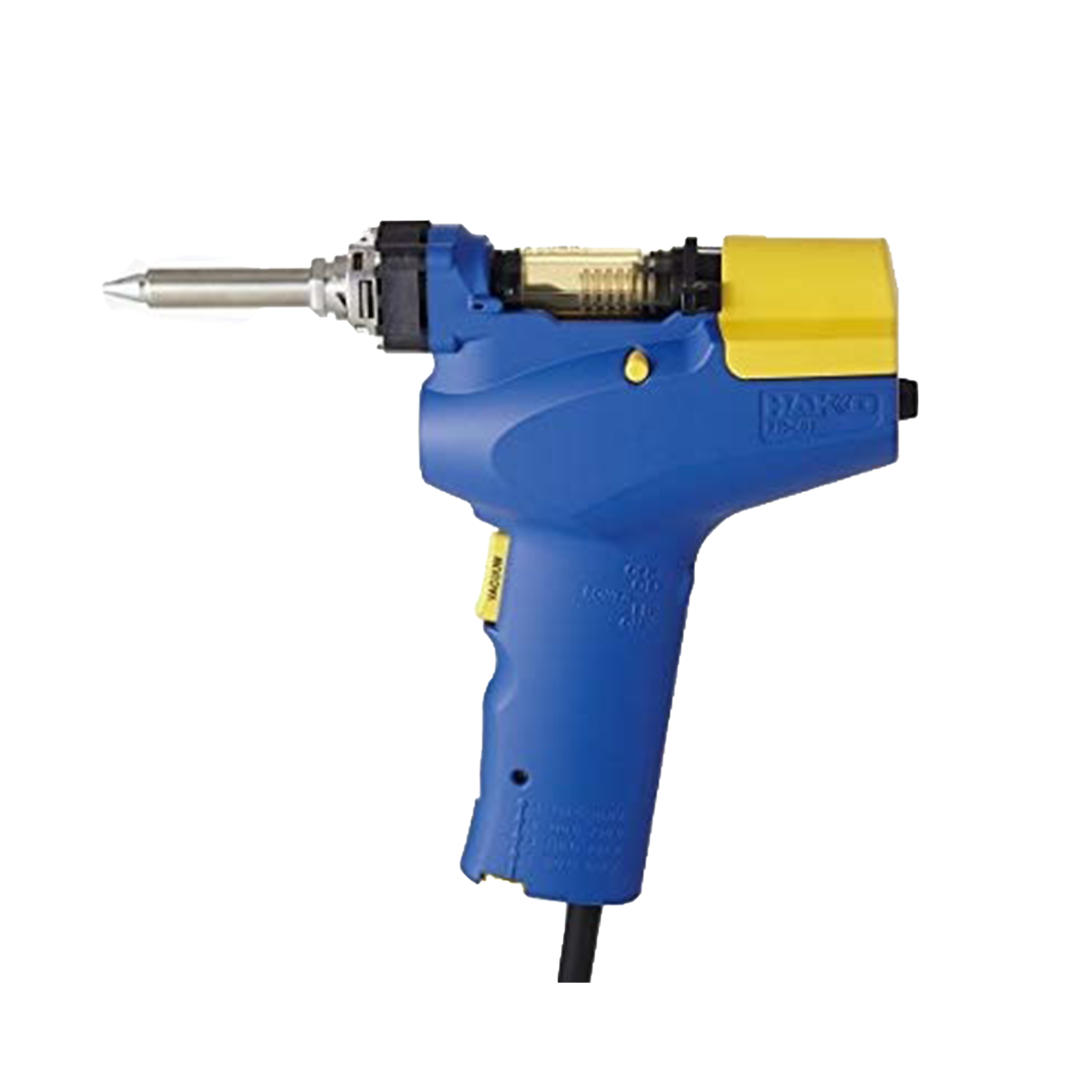

FR-301 Desoldering Tool
FR-301 Desoldering Tool
Contents
Main Unit, N61-08 Nozzle, Pre-Filter B5104, Ceramic Paper Filter L A5044 (2pc), Nozzle Wrench B5106, Iron Holder C5003, Cleaning Pin (for core and for 1.0 nozzle) B1085 & B1087, Carrying Case C5042, Instruction Manual. *Nozzles not Included
Shop compatible nozzles for FR-301
- Use of high thermal efficiency N61 series nozzles
- A wide range of nozzles and shapes for secure desoldering
- Reduction of solder clogging by improved heating core
- Easy filter maintenance
- Safe and easy nozzle change with the nozzle wrench
Please refer to the User Manual for detailed specifications.
Please note that the nozzle of
Features
A wide range of nozzles and shapes for any desoldering
- N61 series nozzles can also be used for
HAKKO FR-410 desoldering station. - N61 series nozzles cannot be used for FR-300.
A wide range of nozzles and shapes for secure desoldering
- The nozzles lineup includes diameters from 0.6 mm to 1.6 mm and also oval shape nozzles.
- Desoldering on micro land and in fine pitch can be possible.
Equipped with high-precision temperature control function
- Uses HAKKOās unique sensor feedback control method.
Easy temperature control
- CAL enables fine adjustment of temperature
- LED indicators let you easily see when the heater is active and idling at your temperature setting.
Reduction of solder clogging by improved heating core
Easy filter maintenace
- The structure of the filter pipe is same as
HAKKO FR-410 desoldering station. - That makes it easier to clean the filter pipe compared to the previous model.
Quick Change Nozzle System provides speed and safety
- The Quick Change Nozzle System allows for a safer and simpler method to quickly remove nozzles for cleaning or replacement, even when the unit is hot.
Packing List
- Unit
- Pre-filter
- Ceramic paper filter L [qty 2]
- Nozzle wrench
- Iron holder (simple type)
- Cleaning pin for heating core
- Standard Nozzle N61-08 (1.0mm)
- Cleaning pin for 1.0mm dia. nozzle
- Carrying Case
- Instruction manual
Specifications
Model No. FR-301
- Power consumption: 230V 110W (50/60Hz)
- Temperature range: 350 to 500ĀŗC
- Nozzle to ground resistance: <2Ī©
- Nozzle to ground potential: <2mV
- Vacuum generator: Diaphragm pump
- Vacuum pressure: 81kPa (610mmHg)
- Suction flow: 11L/min.
- Heating element: Ceramic heater
- Standard nozzle: Ī¦1mm (No.N61-08)
- Dimensions: 215(W)Ć226(H) mm (with Ī¦1 mm (No.N61-08) nozzle)
- Weight: 0.52kg (with Ī¦1 mm (No.N61-08) nozzle)
* Total length and weight (w/o cord)
Replacement Parts
Name |
Specifications |
A5046 |
Heating element, 100-110V |
A5047 |
Heating element, 120V |
A5048 |
Heating element, 127V |
Heating element, 220-240V |
|
Enclosure pipe |
|
Filter pipe assembly with ceramic paper filter and related parts |
|
Ceramic paper filter-L (qty 10) |
|
Pre-filter |
|
Front holder |
|
Filter holder |
|
Filter pipe |
|
Back holder |
|
Valve plate |
|
Diaphragm |
|
Iron holder |
|
Nozzle wrench |
|
Cleaning pin for heating core |
|
Cleaning pin for nozzle Ī¦1mm |
|
Carrying case for FR-301 |
Optional Parts
Part No. |
Name |
Nozzle quick changer for FR-4103, FR-301 |
|
Receptacle for C5046 |
|
B5231 |
Oval nozzle positioning jig for FR-301 |
Iron holder <w/ cleaning sponge> |
|
Cleaning sponge |
|
Cleaning pin nozzle Ī¦0.8mm |
|
Cleaning pin nozzle Ī¦1.3mm |
|
Cleaning pin nozzle Ī¦1.6mm |
|
Cleaning drill nozzle Ī¦0.8mm |
|
Cleaning drill nozzle Ī¦1mm |
|
Cleaning drill nozzle Ī¦1.3mm |
|
Cleaning drill nozzle Ī¦1.6mm |
|
Drill holder nozzle Ī¦0.8/1mm |
|
Drill holder nozzle Ī¦1.3/1.6mm |
|
Drill (nozzle Ī¦0.8mm, qty 10) |
|
Drill (nozzle Ī¦1mm, qty 10) |
|
Drill (nozzle Ī¦1.3mm, qty 10) |
|
Drill (nozzle Ī¦1.6mm, qty 10) |
