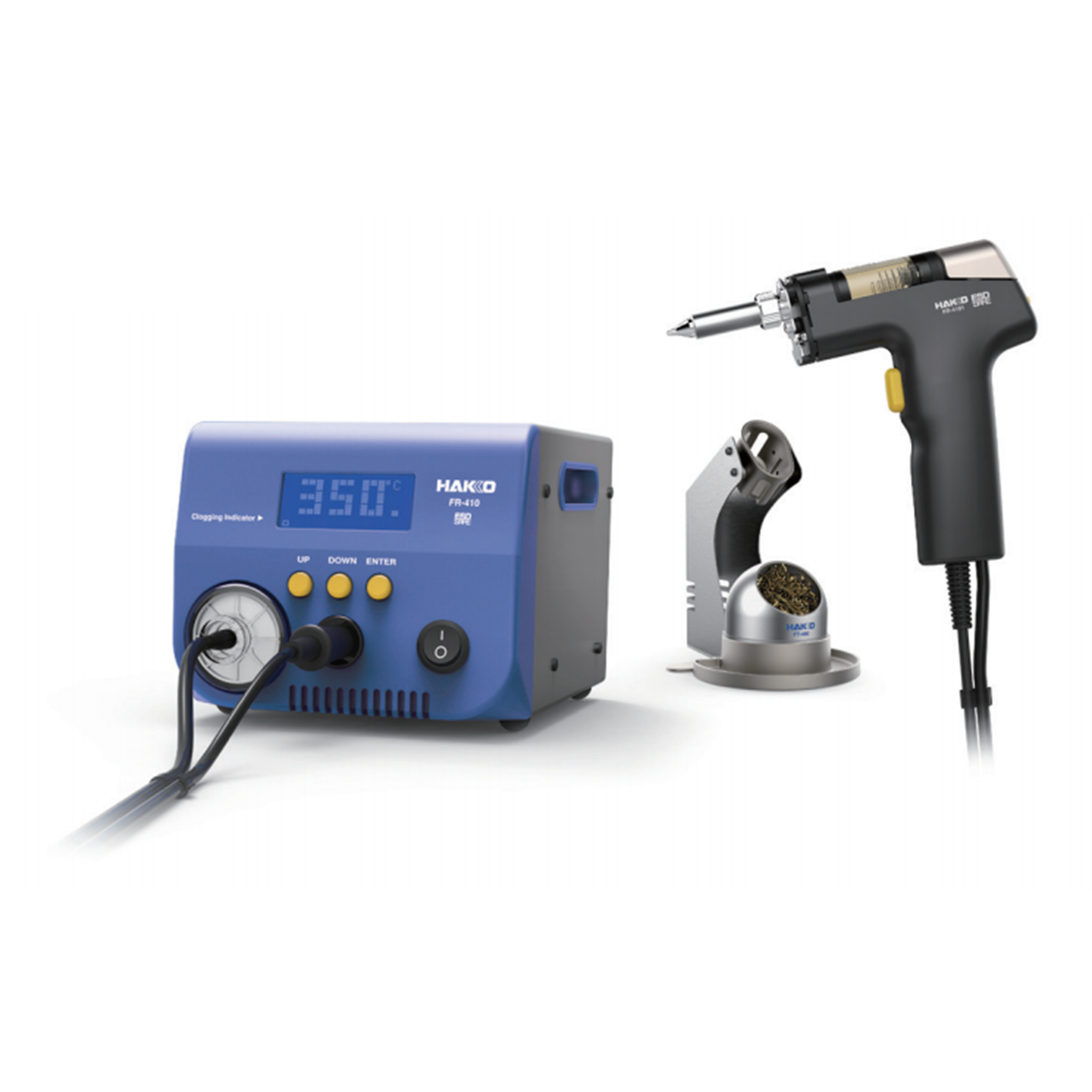

FR-410 Desoldering Tool 230V

FR-410 Desoldering Tool 230V

0 reviews0
$1,130.00 SGD
$1,700.00 SGD $1,130.00 SGD
Sale Make an Enquiry

Contents

Station, Handpiece FR-4103, Iron Holder FH-410, Tool Box C5030, Power Cord, Instruction Manual

Availability: PRE-ORDER | LEAD TIME: 8-16 WEEKS

Self-pickup within 2-5 days (excl. Pre Orders)

  • Desoldering tool with built-in vacuum pump
  • 140 W high power enables perfect desoldering on multi-layer PWB
  • New type nozzle can fit onto micro land patterns and narrow space
  • New functions allow the improvement of maintainability and reliable desoldering

Please refer to the User Manual for detailed specifications.

A wide selection of nozzle, with the addition of new types, is available for a variety of desoldering works.

Applicable to even micro lands, components in a narrow space or flat type terminals on the PWB of downsized devices like mobile phone.

140 W high powers enable perfect desoldering for the components on multi-layer PWB

Increasing the power to 140 W from 50 W of our previous models (HAKKO 474・475), it can make it easy to desolder on multi-layer PWB which was never an easy job, and it can also shorten the process time.

Secure Desoldering, valve function that suctions with high pressure

Suction starts 0.2 seconds after pulling the trigger for instance and high pressure suction to achieve complete desoldering.

Reduction of solder clogging

Improved heating ability and ACF* ensure suctioned solder be carried to filter pipe and reduce solder clogging.
*ACF (Anti Clogging Function) is a function to keep pump running for a certain number of seconds after releasing trigger.

Selecting the right nozzle for your workpiece is very important for quality of desoldering!

It is important to heat a land of PWB and a component lead with a nozzle at the same time when desoldering.
Selection of the right nozzle shape is critical to eansuring the quality of work inappropriate nozzles can decrease work efficiency and damage PWB.

The nozzle lineup for FR-410 covers a variety of desoldering works, such as micro lands, components in a narro space, and flat type terminals.

Quick nozzle replacement with special tool

Nozzle Quick Changer compatible handle (FR-4103) enables one-action nozzle replacement

Improvement in maintainability

・Easy heater replacement

Remove 3 screws to replace heating element

・Tool box for maintenance kit

A tool box that contains of maintenance tools such as cleaning pins for nozzle and heating core is provided for standard. The box can be set on the top of the unit for the convenience of use.

・Improvement of Maintainability of Filter Pipe

Cleaning filter pipe becomes very easy than ever.

・Larger filer and more transparency

Filter size has been increased to protect the pump from contaminants, and transparent filter cover allows quick visual check of the filter condition.

Model No. FR-410

  • Power consumption: 190W
  • Temperature range: 330 to 450ºC
  • Temperature stability: ±5ºC at idle temperature

Station Output

  • Voltage: AC 24V
  • Vacuum generator: Vacuum pump, double cylinder type
  • Vacuum pressure: Max. 80kPa (600mmHg)
  • Suction flow: 15L/min.
  • Dimension: 165(W)×137(H)×244(D)mm
  • Weight: 4.8kg

Desoldering Tool

  • Power consumption: 140W (24V)
  • Nozzle to ground resistance: <2Ω
  • Nozzle to ground potential: <2mV
  • Heating element: Composite heater
  • Standard nozzle: Φ1.0mm S type (No.N61-05)
  • Cord length: 1.2m
  • Total length: 168mm (with Φ1.0mm S type nozzle)
  • Weight: 190g (with Φ1.0mm S type nozzle)

* The suction flow is measured at the filter case suction port of station.

* Total length and weight (w/o cord, hose)

Replacement Parts

Name

Specifications

FR4103-81

Desoldering tool FR-4103
* The replacement for FR4101-81.

140W (24V), w/Φ1.0mm S type nozzle

A5055

Heating element 140W (24V), for FR-4103

B5222

Enclosure pipe for FR-4103

A5020

Filter (qty 10)

B5185

Filter pipe assembly with ceramic paper filter and related parts
* The replacement for B5105.

B5105

Filter pipe assembly with ceramic paper filter and related parts
* Discontinued. The replacement is "B5185".

A5044

Ceramic paper filter-L (qty 10)
* The replacement for A1033.

A1033

Ceramic paper filter-L (qty 10)
* Discontinued. The replacement is "A5044".

B5104

Pre-filter

A5030

Front holder

A5031

Filter holder

B5194

Filter pipe

A1013

Diaphragm (qty 2)

A1014

Valve plate (qty 2)

C5030

Tool box

B1087

Cleaning pin for nozzle Φ1mm

B1215

Cleaning pin for heating element

B1303

Cleaning drill for nozzle Φ1mm

B1306

Drill holder nozzle Φ0.8/1mm

B1309

Drill (nozzle Φ1mm, qty 10)

B5106

Nozzle wrench

599-029

Cleaning wire

FH410-82

Iron holder <w/ cleaning wire> for FR-4103



Optional Parts

Part No.

Name

C5046

Nozzle quick changer for FR-4103, FR-301

B5228

Receptacle for C5046

B5230

Oval nozzle positioning jig for FR-4103

FH410-81

Iron holder <w/ cleaning sponge>

A1519

Cleaning sponge (yellow)
* The replacement for A1536.

B2874

Cleaning pin for nozzle Φ0.6mm

B1086

Cleaning pin for nozzle Φ0.8mm

B1088

Cleaning pin for nozzle Φ1.3mm

B1089

Cleaning pin for nozzle Φ1.6mm

B5141

Cleaning drill for nozzle Φ0.6mm

B1302

Cleaning drill for nozzle Φ0.8mm

B1304

Cleaning drill for nozzle Φ1.3mm

B1305

Cleaning drill for nozzle Φ1.6mm

B5142

Drill holder for nozzle Φ0.6mm

B1307

Drill holder for nozzle Φ1.3/1.6mm

B5143

Drill (nozzle Φ0.6mm, qty 10)

B1308

Drill (nozzle Φ0.8mm, qty 10)

B1310

Drill (nozzle Φ1.3mm, qty 10)

B1311

Drill (nozzle Φ1.6mm, qty 10
