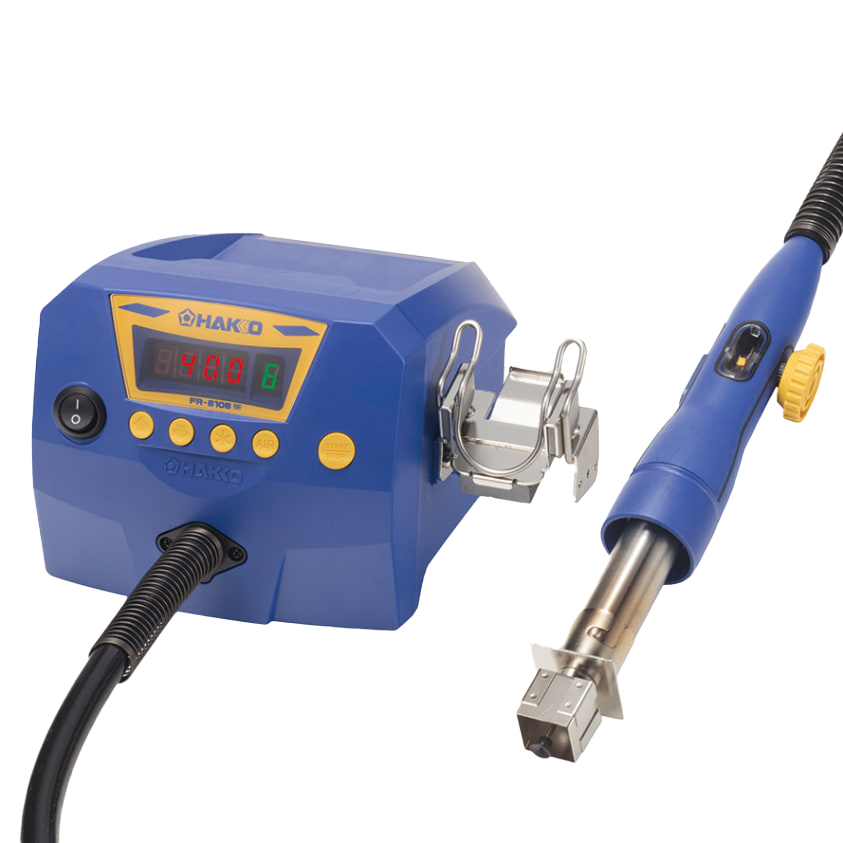

Hakko FR810B-19 Rework Station
Hakko FR810B-19 Rework Station
AVAILABILITY: PRE-ORDER | LEAD TIME: 10-16 WEEKS
- 670W high power and large volume hot air improves work efficiency. Vacuum pick up function for easy and safe removal of components.
Shop compatible nozzles for FR-810B:
*A 4mm nozzle is included. Others to be purchased separately
| N51 Nozzles | Nozzles |
| BGA | N51-10 to N51-26 |
| Single | N51-01 to N51-04 |
| Bent Single | N51-05 |
| Hot Air Series (Conventional) | |
| QFP | A1125B, A1262B, A1126B, A1128B, A1127B, A1261B, A1129B, A1263B, A1265B, A1203B, A1254B, A1215B, A1108B, A1181B, A1182B |
| SOP | A1131, A1132, A1133, A1134, A1258B, A1260B, A1257B, A1259B |
| TSOL | A1185B, A1186B, A1187B |
| PLCC | A1188B, A1140B, A1141B, A1139B, A1135B, A1136B, A1137B, A1138B, A1189B |
| SOJ | A1214B, A1183, A1184B |
| BGA | A1470, A1471, A1472, A1473, A1474, A1475, A1476, A1477, A1478 |
| Single | A1124B, A1130, A1142B, A1190, A1325 |
| SIP | A1191, A1192 |
Packing List
| Packing List | Part No. |
| Station with handpiece | - |
| Nozzle (4mm dia.) | - |
| Handpiece/Iron holder | B5048 |
| Vacuum pipe control knob L (with screw) | B3023 |
| Pads (3mm dia., 5mm dia., 7.6mm dia. [qty 2 each]) |
A1520 (3.0mm) A1439 (5.0mm) A1438 (7.6mm) |
| Heat resistant pad | B2300 |
| Power Cord | - |
| Temperature distribution chart | - |
| Instruction manual | - |
Features
High power and large air volume - Further evolution of SMD rework station
High power and large volume hot air for quick removal of components
FR-810B is the tool that can provide high power hot air and high volume airflow to rework on P.W.B. with high heat capacity.
Improving work efficiency
The high volume airflow and high output of FR-810B make it possible to perform the same work in only one-third of the time required when using a conventional model. This reduces the thermal impact on boards and components.
Improvements in FR-810B
On top of the features of FR-810, high power and large air volume, the new functions of vacuum pickup and pickup indicator have been given to FR-810B.
The 2 new functions make it possible to remove a component without damaging PWB.
New type of nozzles for improvement of temperature characteristics
The new nozzle improves work efficiency with uniform heating by hot air convection inside the nozzle which is created due to vents on the nozzle top. (Only with BGA nozzle)
Vacuum pickup function
The vacuum pickup function is to pick up a component with a suction pad and vacuum. It will pick a component only after the hot air melts solder joints. This can avoid an error to peel off the land by removing a component with excessive force.
Pickup indicator
By pre-setting pickup function, a component can be picked up automatically when solder is melted. At the same time, the indication comes up and the moment of picking up will be visible. Even a component and solder joints can not be seen as covered by a nozzle, easy and safe picking up is possible.
Use of the conventional HAKKO nozzles
Align the projection part, attach the conventional nozzle to the heater pipe.
For FR-810:
The heater pipe of HAKKO FR-810 (discontinued) has two parts. In order to use the conventional nozzle, put the conversion adapter on the heater pipe that was included in your purchased HAKKO FR-810 as one of standard accessories.
Simple nozzle removal and easy maintenance
Nozzles can be quickly changed for many different types of components.
In addition, conventional nozzles are compatible. Heaters can also be easily and securely replaced.
- Quick-change N51 nozzles
- Simple tool-free removal and attachment.
- Simple heater replacement
- Simply remove four screws to replace heater.
Timer function
Timer function is to control the time of operation.
This can help to prevent parts from overheating and can improve the overall quality of rework.
Chain presets function for making a simple thermal profile
The chain presets function is to make a simple thermal profile by combining several preset conditions. (Up to 5 steps) This can improve work efficiency by standardizing work time, avoiding overheating, improving repeatability of operation, and making difficult rework jobs easy.
Auto sleep and auto shutoff functions
To ensure safety and conserve power, when the handpiece is placed in the handpiece holder, the auto sleep function will be activated and it will start cooling automatically. If the handpiece has not been removed from the handpiece holder (e.g. Using it in a rework fixture) and it has been idle for 30 minutes, auto shutoff function will be activated. It will be automatically powered off. Access to settings can be restricted by the password function.
Controlled work conditions
With the use of grip fixture, board holder and bottom heater, work conditions can be controlled even more strictly.
A low cost rework system can be assembled with grip fixture, board holder and bottom heater.
Grip Fixture M
Recommended if a bottom heater is not required or in case of use of a bottom heater other than the dedicated model for FR-811.
Board Holder
Makes it easy to set and remove a PWB and to make fine adjustments after setting.
Board Clip
Accepts even irregular-shaped PWB.
Board Support Unit
Supports PWB from underneath to minimize warping.
Specifications
Power consumption
- AC220V：1,100W
- AC230V：1,200W
- AC240V：1,300W
Temperature range: 50 to 600℃
Station
- Power consumption: 30W
- Air flow: 1-9（5 to 115L/min）L/min.
- Dimensions: 160(W)×145(H)×220(D)mm
- Weight: 1.5kg
Handpiece (Hot air)
Power consumption
- AC220V：1,070W
- AC230V：1,170W
- AC240V：1,270W
- Standard nozzle 4mm dia. (N51-02)
- Total length 250mm
- Weight 180g
*Total length and weight for handpiece are measured without cord and standard nozzle.
Airflow capacity is rated as free flowing. Restrictions created by various nozzles may reduce the maximum airflow capacity.
Replacement
| Part No. | Product |
| A1438 | Pad (7.6mm dia, 5pc) |
| A1439 | Pad (5.0mm dia, 5pc) |
| A1520 | Pad (3.0mm dia, 5pc) |
| B3023 | Vacuum pipe control knob (L) with screw |
| B5048 | Iron Holder |
| B2300 | Heat Resistant Pad |
| A5024 | Heating Element (220-240V) |
| B5045 | Pipe |
| B5049 | Mica with heat protection sleeve |
Optional Parts
| Part No. | Product |
| B5126 | Air Guard Assembly with Fixing Bracket |
| C5027 | Board Holder |
| B5098 | Board Clip |
| B5136 | Board Support Unit |
| B5137 | Rubber Feet (4 piece) |
| C5028 | Grip Fixture M (with hexagon wrench, o-ring, tray) |
| C5029 | Grip Fixture L (with hexagon wrench, o-ring) |
| A5027 | Slide Gear |
| B5138 | Positioning Unit |
| B5139 | Tray |
| B5140 | Tray Assembly |
