[This is a pre-order product and will take 6-8 weeks to arrive. Kindly view pre-order FAQs before purchasing.]

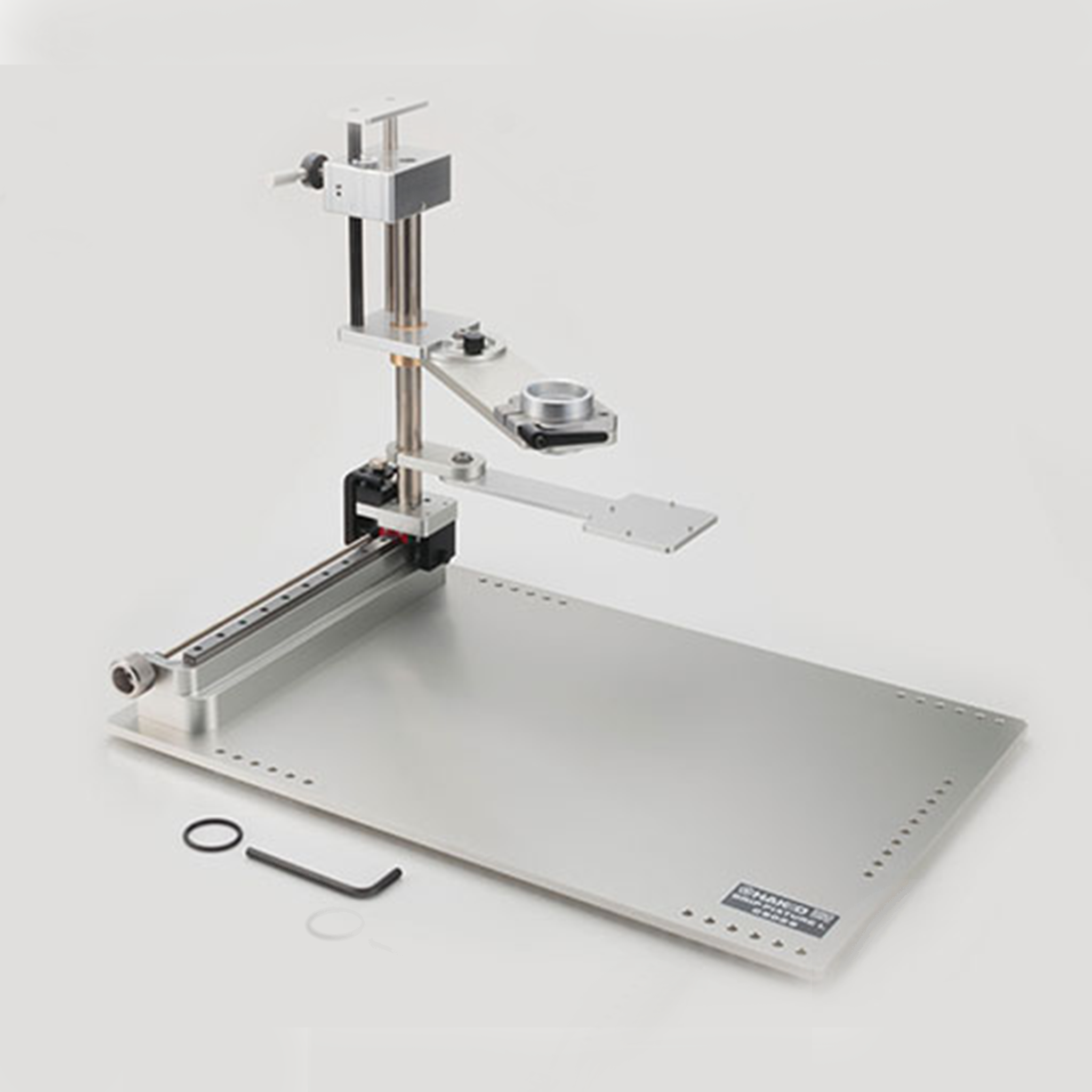

The C5029 Handpiece Fixture provides large stable platform with multiple mounting positions for HAKKO C5027 Board Holder. The fixture includes a one-touch slide adjustment as well as a knob for fine adjustment in the y-axis.
The swing arm and adjustable collar allows for easy positioning of the handpiece directly above the component to be reworked and also allows the rotation of the handpiece to adjust the theta angle of the nozzle in relation to the component.
A component tray is integrated with the handpiece fixture as an added swing arm that is height adjustable.
Packing List
| Packing List |
Part No. |
| Grip Fixture L |
C5029 |
| Hex Wrench (6mm) |
- |
| O-Ring |
- |
| User Manual |
- |
Specifications
Reach: 131 mm Max
Z-axis Stroke: 120 mm
Arm Position: Adjustable through 180°
Dimensions: 582 x 491 x 361 mm (W x H x D)
Weight: 8.89 kg
ESD Safe: Yes
