FR-702 Repair System 230V

FR-702 Repair System 230V

$2,650.00 SGD
$3,980.00 SGD $2,650.00 SGD
Sale Make an Enquiry

Contents

Main station with Hot Air Handpiece, Handpiece FX-8801, Handpiece FR-4103, Iron holder FH800-03BY, Iron holder FH410-82, Handpiece holder B5048, Tool box C5030, Pad A1438 A1439 A1520 (2 each), Heat resistant pad B2300, Vacuum pipe control knob L B3023, Color band (2), Power cord, and Instruction manual. *Tips and nozzles not included

Availability: PRE-ORDER | LEAD TIME: 8-16 WEEKS

  • Powerful rework stations that contain every function needed for rework
  • Safer and more secure rework operation
  • With upgraded all the applications
  • 4-in-1 unit for space saving
  • Compatible with N2 system by purchasing N2 iron (FX-8802) as an optional accessary

Please refer to the User Manual for detailed specifications.

Features

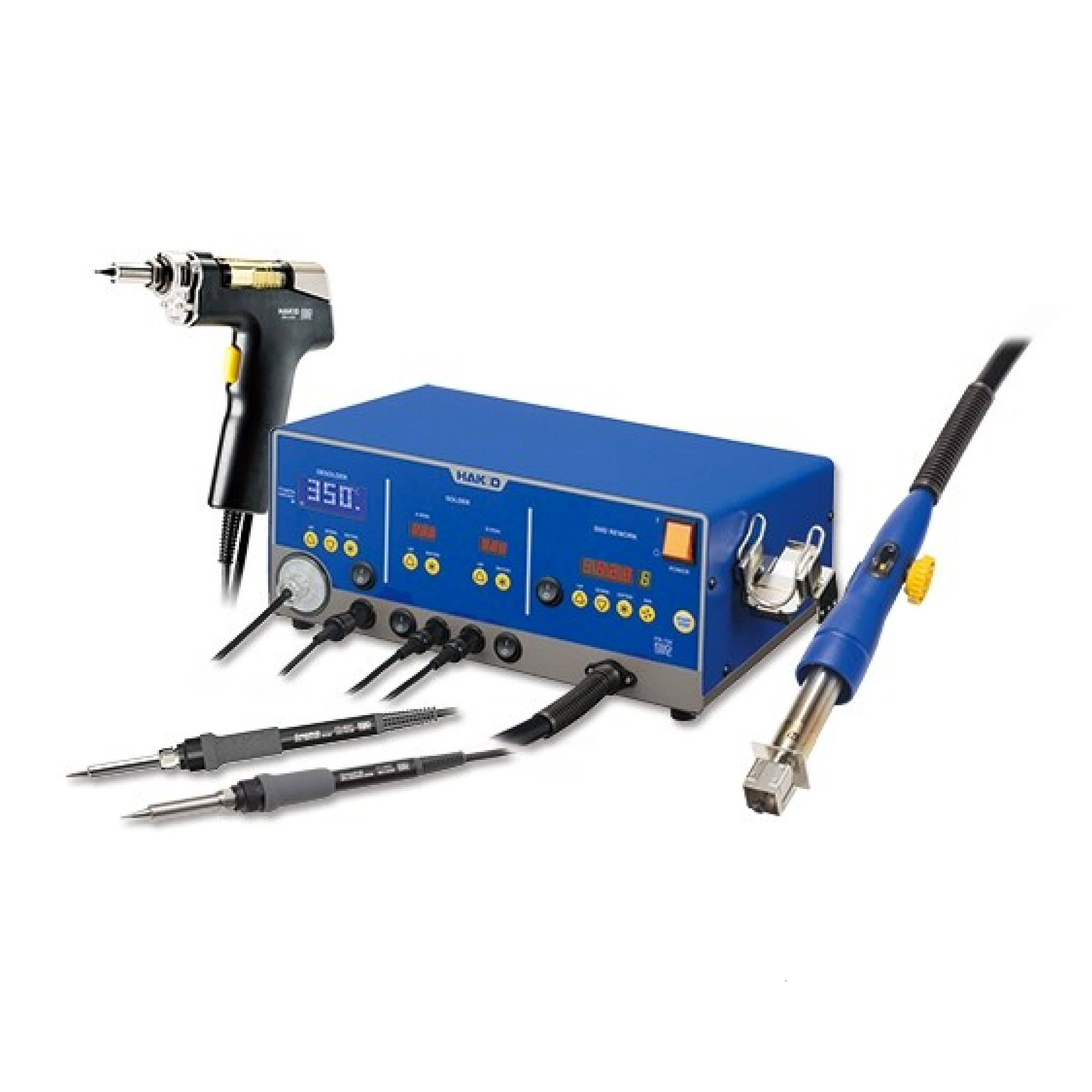

4 Port Rework Station with 140 W desoldering gun, M-type soldering iron and 670W hot air

  • It handles various soldering, desoldering and reworking by choosing proper handpieces from a selection of 7 types.

Other than the standard handpieces of 140 W desoldering gun, M-type soldering iron and high power & large volume hot air, there are 4 more applications. Consumed tip nozzle and heating element can be replaced individually, and running cost is much lower than the composite type.

  • High-power Desoldering gun HAKKO FR-4103

Increasing the power to 140 W from 50 W of our previous models (HAKKO 474・475), it can make it easy to desolder on multi-layer PWB which was never an easy job, and it can also shorten the process time. A wide selection of nozzle, with the addition of new types, is available for a variety of desoldering works.

    • Long type nozzles for narrow space
    • Oval shape nozzles for flat terminals
    • SS type nozzles for micro land-patterns
  • Soldering iron HAKKO FX-8801/FX-8805

Thermal conductivity has been increased by reviewing external configuration and internal structure of 900 tip series. Now T18 and T19 tip series are selectable depend on work environment.

  • Hot air handpiece

670 W high power and large volume hot air improves work efficiency.

    • High power and large volume hot air for quick removal of components. New type of nozzles for improvement of temperature characteristics

The new nozzle improves work efficiency with uniform heating by hot air convection inside the nozzle which is created due to vents on the nozzle top. (only with BGA nozzles)

    • Vacuum pickup function

The vacuum pick up function is to pick up a component with a suction pad and vacuum. It will pick a component only after the hot air melts solder joints. This can avoid an error to peel off the land by removing a component with excessive force.

    • Pickup indicator lets you know the pickup timing at a glance!

By pre-setting pickup function, a component can be picked up automatically when solder is melted. Then, the indication comes up and the moment of picking up will be visible.

Even a component and solder joints cannot be seen as covered by a nozzle, easy and safe picking up is possible.

  • N2 soldering iron HAKKO FX-8802

The N2 gas runs into the nozzle assembly and covers over the soldering tip. It prevents the soldering tip and the heater from being readily oxidized and performs great role as a preheating.

Two effects of N2 system, preventing oxidation or preheating effect, can improve soldering defects such as bridging, protrusion icicle, insufficient solder filling in PTH, etc.

T18 tips series are compatible with this application.

  • One-hand Manual-solder-feed iron HAKKO FX-8803
    • Solder and feed with one hand
    • Feed a set amount of solder with one hand
    • Manual feed system is perfect for cellular manufacturing.
    • Soldering work can be conducted at the pace of the operator.
    • T18 tips series are compatible with this application.
  • SMD Hot Tweezer HAKKO FX-8804
    • Direct heating—less influence upon surrounding components on crowded boards.
    • Easily removes SMD chips and flat packages up to 25mm.
    • The collet allows easy replacement and alignment of the tips.
Specifications
Model No. FR-702(Desoldering tool: FR-4103)
Power consumption 1,030W

Station

Dimensions 370(W)×150(H)×220(D) mm
Weight 9 kg

Station (Soldering)

Output voltage AC 26V
Temperature range 50 to 480ºC
Temperature stability ±1ºC at idle temperature (When set to 200 to 480ºC)

Station (Desoldering)

Output voltage AC 24V
Vacuum generator Vacuum pump, double cylinder type
Vacuum pressure 80kPa (600mmHg)
Suction flow 15L/min.
Temperature range 330 to 450ºC
Temperature stability ±5ºC at idle temperature

Station (Hot air)

Power consumption 30W
Air flow 1 to 9 (5 to 115L/min.) L/min.
Temperature range 50 to 600ºC

Soldering iron

Power consumption 65W(26V)
Tip to ground resistance <2Ω
Tip to ground potential <2mV
Heating element Ceramic heater
Standard tip Shape-B (No.T18-B)
Cord length 1.2m
Total length 222 mm (with B tip)
Weight 52 g (with B tip)

Desoldering Gun

Power consumption 140W (24V)
Nozzle to ground resistance <2Ω
Nozzle to ground potential <2mV
Heating element Composite heater
Standard nozzle Φ1.0mm S type (No.N61-05)
Cord length 1.2 m
Total length 168 mm (with Φ1.0mm S type nozzle)
Weight 190g(with Φ1.0mm S type nozzle)

Handpiece (Hot air)

Power consumption 670W
Total length 250mm
Weight 180g

* The suction flow is measured at the filter case suction port of station.
* Airflow capacity is rated as free flowing. Restrictions created by various nozzles may reduce the maximum airflow capacity.
* Total length and weight (w/o cord, hose)

Replacement Parts

Name

Specifications

FX8801-01

Soldering iron FX-8801, 65W (26V), w/B tip

A1560

Heating element, 65W (26V)

B5122

Enclosure pipe assembly

FR4103-81

Desoldering tool FR-4103
* The replacement for FR4101-81. 140W (24V), w/Φ1.0mm S type nozzle

A5055

Heating element 140W (24V), for FR-4103

B5222

Enclosure pipe for FR-4103

B5185

Filter pipe assembly
* The replacement for B5105. with ceramic paper filter and related parts

B5105

Filter pipe assembly
* Discontinued. The replacement is "B5185". with ceramic paper filter and related parts

A5044

Ceramic paper filter-L (qty 10)
* The replacement for A1033.

A1033

Ceramic paper filter-L (qty 10)
* Discontinued. The replacement is "A5044".

B5104

Pre-filter

A5030

Front holder

A5031

Filter holder

A5020

Filter (qty 10)

A1013

Diaphragm (qty 2)

A1014

Valve plate (qty 2)

B5045

Pipe

B5049

Mica with heater protection sleeve

B5048

Iron holder

B2300

Heat resistant pad

C5030

Tool box

B5106

Nozzle wrench

B1087

Cleaning pin for nozzle Φ1mm

B1215

Cleaning pin for heating element

B1303

Cleaning drill for nozzle Φ1mm

B1306

Drill holder nozzle Φ0.8/1mm

B1309

Drill (nozzle Φ1mm, qty 10)

FH800-03BY

Iron holder <w/ cleaning sponge, cleaning wire> blue and yellow

A1559

Cleaning sponge for FH-800

A1561

Cleaning wire for FH-800

FH410-82

Iron holder <w/ cleaning wire> for FR-4103

599-029

Cleaning wire

A1438

Pad/7.6mm (qty 5)

A1439

Pad/5mm (qty 5)

A1520

Pad/3mm (qty 5)

B3023

Vacuum pipe control knob (L) with screw

Options

Part No.

Name

FX8802-01

Soldering iron FX-8802 65W (26V), w/B tip, for N2 soldering

FX8803-02

Soldering gun FX-8803 65W (26V), w/3CF tip

FX8803-03

Soldering gun FX-8803 65W (26V), w/3CF tip

FX8803-04

Soldering gun FX-8803 65W (26V), w/3CF tip

FX8804-02

SMD hot tweezer FX-8804 65W (26V), w/2L tip

FX8804-03

SMD hot tweezer FX-8804 65W (26V), w/2L tip

FX8804-04

SMD hot tweezer FX-8804 65W (26V), w/2L tip

FX8805-01

Soldering iron FX-8805 65W (26V), w/B tip, for soldering (L type)

C5046

Nozzle quick changer for FR-4103, FR-301

B5228

Receptacle for C5046

B5230

Oval nozzle positioning jig for FR-4103

C1437

Iron holder <w/ cleaning sponge> for 951,952,958,959 (Discontinued) and FX-8803

FH800-04BY

Iron holder <w/ cleaning sponge> blue & yellow, for FX-8804

B3666

Holder clip

B1086

Cleaning pin for nozzle Φ0.8mm

B1088

Cleaning pin for nozzle Φ1.3mm

B1089

Cleaning pin for nozzle Φ1.6mm

B5141

Cleaning drill for nozzle Φ0.6mm

B1302

Cleaning drill for nozzle Φ0.8mm

B1304

Cleaning drill for nozzle Φ1.3mm

B1305

Cleaning drill for nozzle Φ1.6mm

B5142

Drill holder for nozzle Φ0.6mm

B1307

Drill holder for nozzle Φ1.3/1.6mm

B5143

Drill (nozzle Φ0.6mm, qty 10)

B1308

Drill (nozzle Φ0.8mm, qty 10)

B1310

Drill (nozzle Φ1.3mm, qty 10)

B1311

Drill (nozzle Φ1.6mm, qty 10)

B5126

Air guard assembly with air guard fixing bracket

C5027

Board holder

C5028

Grip fixture M set with hexagon wrench, o-ring and tray

C5029

Grip fixture L set with hexagon wrench and o-ring

B5098

Board clip

B5136

Board support unit

B5138

Positioning unit

B5137

Rubber foot

A1519

Cleaning sponge yellow
* The replacement for A1536.
