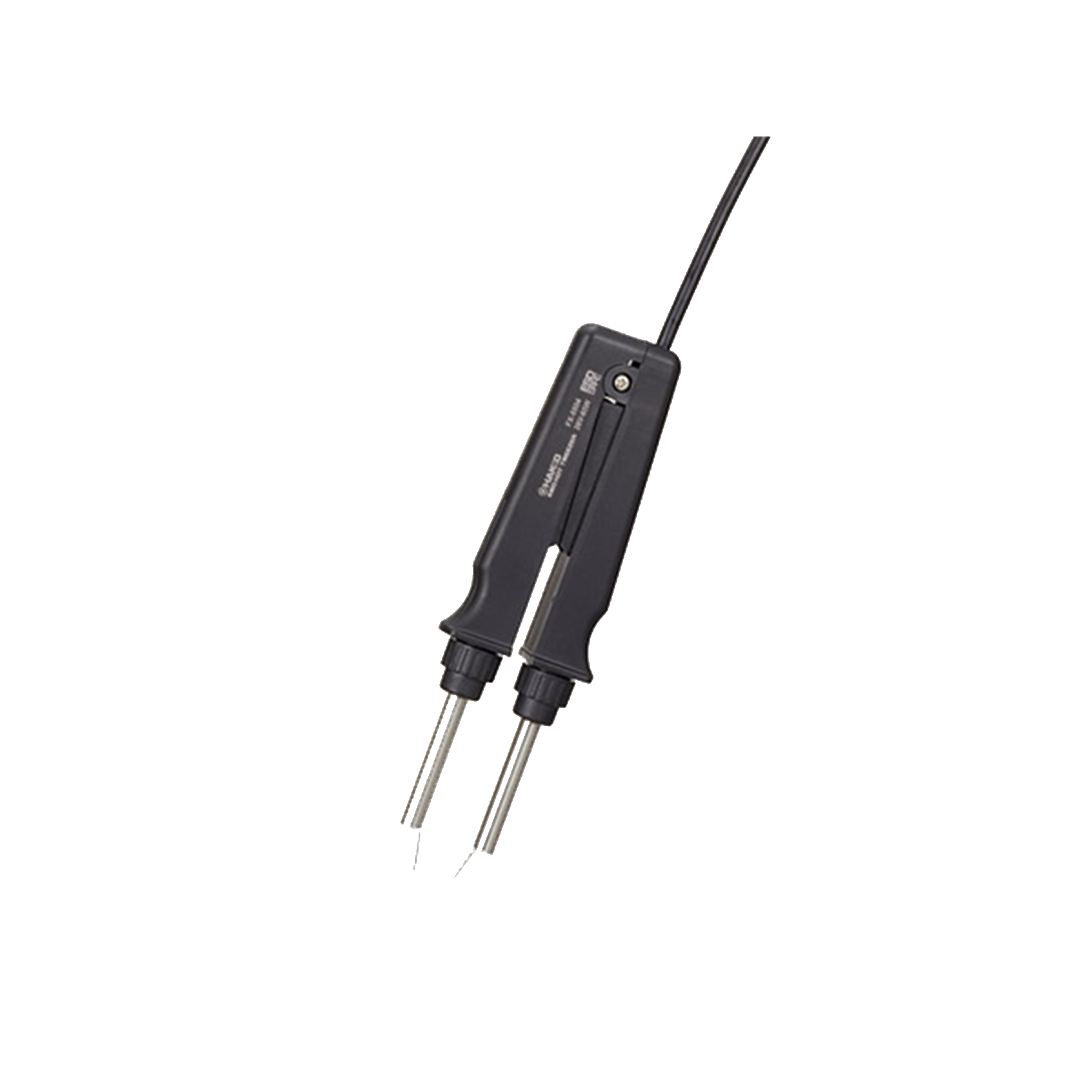

FX-8804 SMD Hot Tweezers 230V
FX-8804 SMD Hot Tweezers 230V
Contents
Hot Tweezer Handpiece with A1378 Tip, Heat Resistant Pad B2300, Warning Label, Instruction Manual
Availability: PRE-ORDER | LEAD TIME: 8-16 WEEKS
Please refer to the User Manual for detailed specifications.
- Hot tweezers designed exclusively for
HAKKO FX-888D, FX-889, FR-701 and FR-702 - FX-8804 enables the easy removal of SMD chips and flat packages of up to 25mm
- The iron holder clip allows accurate positioning of the tip
- Direct heating—less damage upon surrounding components on crowded boards.
- Compatible with Iron Holder FH800-04BY / FH800-04SV
- Compatible with Iron Holder FH800-03BY / FH800-03SV by purchasing additional holder clip B3666
Packing List
- Handpiece
- Standard tip: A1378 (Chip 2L)
- Warning label
- Heat-resistant pad
- Instruction manual
Specification
- Power consumption: 65W (26V)
- Temperature range: 200 to 400ºC
- Tip to ground resistance: <2Ω
- Tip to ground potential: <2mV
- Heating element: Ceramic heater
- Standard tip: Shape-2L (No.A1378)2 pcs/set
- Cord length: 1.2m
- Total length :186mm (with Chip 2L tip), excludes cord
- Weight: 93g (with Chip 2L tip), excludes cord
- * The recommended (process) temperature is from 200ºC to 400ºC while setting temperature range of FX-888D is from 50ºC to 480ºC.
Replacement Parts
Part Number | Product Name |
B2300 |
Heat resistant pad |
A1578 | Heating element (2 pc), (65W, 26V) |
B2289 | Nipple |
Optional Parts
Part Number | Product Name |
FH800-03BY, FH800-03SV | Iron holder with cleaning sponge, requires part B3666 |
FH800-04SV, FH800-04BY | Iron holder with cleaning sponge |
A1559 | Cleaning sponge for FH-800 |
A1561 | Cleaning wire for FH-800 |
B3666 | Attachment holder clip for FH800-03BY, FH800-03SV |
