FR811-18 SMD Rework Station
FR811-18 SMD Rework Station
AVAILABILITY: PRE-ORDER | LEAD TIME: 10-16 WEEKS
- Possible to make full-scale thermal profiles with 6-zone hot air and a bottom heater.
- Possible to measure and record temperature of components and PWB with type K thermocouple.
- The dedicated software to link a station and a computer for easy and quick settings.
- Easy data transfer through an USB cable
Please refer to the User Manual for detailed specifications.

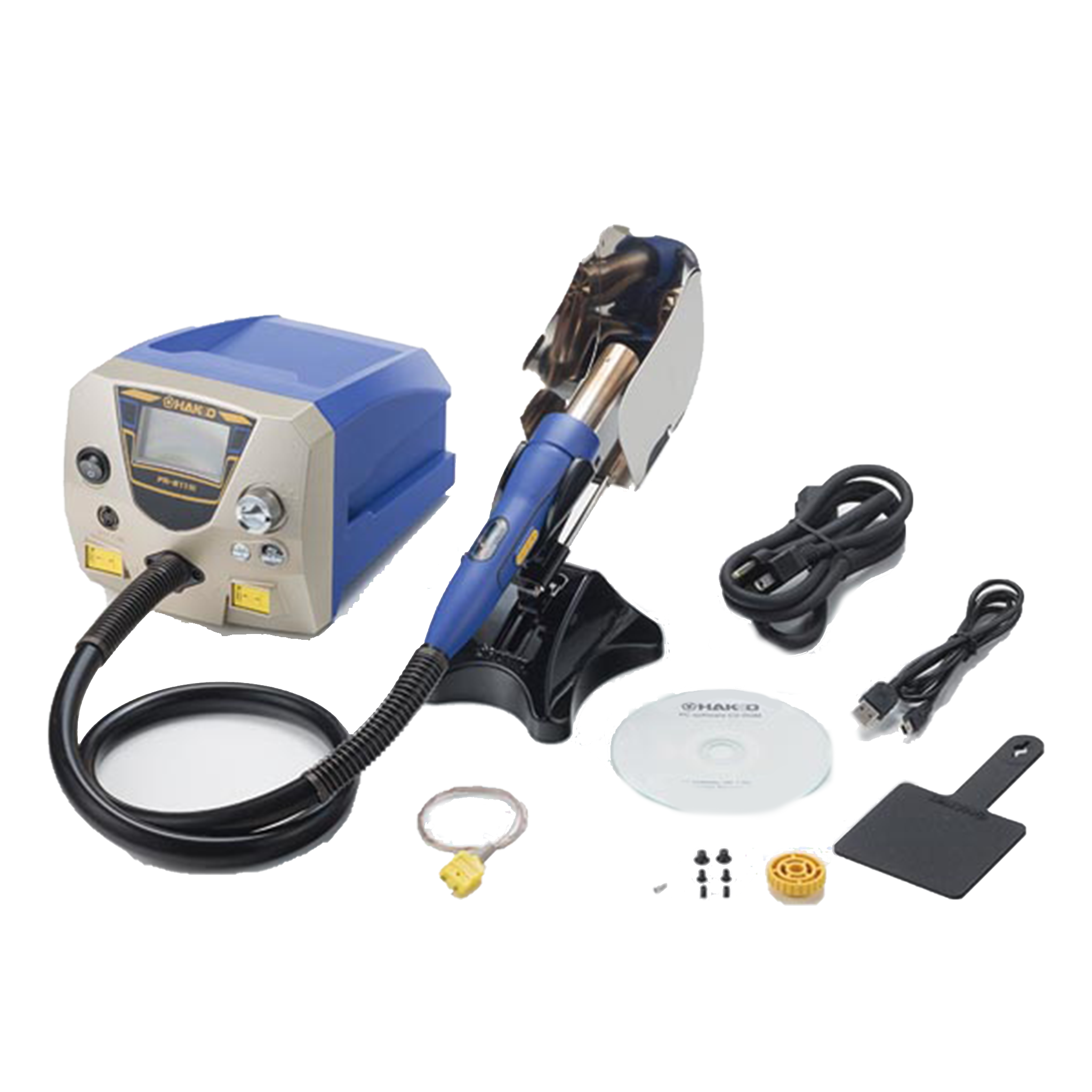

Packing List
| Packing List | Part No. |
| Station with Handpiece | - |
| Grip Stand Assembly | C5033 |
| Vacuum Pipe Control Knob (with Screw) | B3023 |
| Pads (qty 2 each of Ø3 mm, Ø5 mm, Ø7.6 mm) |
A1520 (3.0mm) A1439 (5.0mm) A1438 (7.6mm) |
| Software (CD-ROM) | - |
| USB Cable | - |
| Thermocouple | B5128 |
| Heat Resistant Pad | B2300 |
| Power Cord | - |
| Temperature Distribution Chart | - |
| Instructions Manual | - |
Shop compatible nozzles for FR-811:
*Tip/Nozzle not included. To be purchased separately
| N51 Nozzles | Nozzles |
| BGA | N51-10 to N51-26 |
| Single | N51-01 to N51-04 |
| Bent Single | N51-05 |
| Hot Air Series (Conventional) | |
| QFP | A1125B, A1262B, A1126B, A1128B, A1127B, A1261B, A1129B, A1263B, A1265B, A1203B, A1254B, A1215B, A1108B, A1181B, A1182B |
| SOP | A1131, A1132, A1133, A1134, A1258B, A1260B, A1257B, A1259B |
| TSOL | A1185B, A1186B, A1187B |
| PLCC | A1188B, A1140B, A1141B, A1139B, A1135B, A1136B, A1137B, A1138B, A1189B |
| SOJ | A1214B, A1183, A1184B |
| BGA | A1470, A1471, A1472, A1473, A1474, A1475, A1476, A1477, A1478 |
| Single | A1124B, A1130, A1142B, A1190, A1325 |
| SIP | A1191, A1192 |
Features
Introducing a high-spec hot air rework station with excellent cost performance
Possible to make full-scale thermal profiles with 6-zone hot air and a bottom heater.
FR-811 can provide 6 zones in which temperature, time, and air flow are controlled. This gives a full-scale thermal profile which is close to reflow profiles made by a reflow oven.
Record thermal data
By connecting a thermocouple included with FR-811, the temperature of the component or circuit board can be measured and recorded. In addition, if "TC LINK" is set, the heater output can be automatically controlled so that the temperature of the thermocouple attached to the component or circuit board follows the set profile.
Operation on a PC for various settings
By connecting FR-811 and a computer with a USB cable and using the dedicated software which comes as standard, a set thermal profile and actual temperature change can be shown in a graph in real time. Also, change of thermal profile and fine adjustment in a profile can be made on a computer operation. (After making changes, it is necessary to resend the data to FR-811.) In addition, the set values and graph can be saved in csv format.
Linked operation with bottom heater
FR-811 can control on/off timing and output of the bottom heater, which is available as an optional add-on.
High power and large volume hot air for quick removal of components
New user friendly functions for SMD rework
New type of nozzles for improving temperature characteristics
The new nozzles improve work efficiency with uniform heating by hot air convection inside the nozzle which is created due to vents on the nozzle top. (Only with BGA nozzles)
Vacuum pickup function
The vacuum pickup function is to pick up a component with a suction pad and vacuum.
It will pick a component only after the hot air melts solder joints. This prevents removing a component with excessive force, which may damage the PCB.
Pickup indicator
By pre-setting pickup function, a component can be picked up automatically when solder is melted. There is also an indication to show when the component has been picked up. Even for components and solder joints that are covered by the nozzle, the FR-811 makes it easy and safe for pick up.
Interface designed for intuitive operation
Easy-to-read LCD
A high-visibility LCD display makes it easy to check the various product settings or operation status. Indications are displayed using graphics as well as letters and numbers so information can be checked intuitively.
Easy-to-operate multi-direction control knob
There are several ways of knob movements, dialing, pressing, and tilting up and down and left to right for quick operation and easy changing of settings.
Link to a PC (A USB I/F terminal available)
A USB I/F terminal is available to link to a computer. The dedicated software, which can display and record various settings or temperature data on a computer screen in real time, is included.
A USB device terminal for easy data transfer
Data can be transferred through a USB memory even without a computer.
Use conventional HAKKO nozzles
Align the projection part and attach the conventional nozzle to the heater pipe.
*The heater pipe of HAKKO FR-810 (discontinued) has two projection parts. In order to use the conventional nozzle, put the conversion adaptor on the heater pipe that was included in your purchased HAKKO FR-810 as one of standard accessories.
Simple nozzle removal and easy maintenance
Nozzle can be changed quickly when working with a wide range of components. Conventional HAKKO nozzles can be used by using a special conversion adapter (option).
Heater replacement is also simple.
Timer function
Timer function is to control the time of operation.
This can help to prevent parts from overheating and can improve the overall quality of rework.
Chain presets function for making a simple thermal profile
The chain presets function is to make a simple thermal profile by combining several preset conditions. (Up to 5 steps)
This can improve work efficiency a lot by standardizing work time, avoiding overheating, improving repeatability of operation, and making difficult rework jobs easy.
Auto sleep and auto shutoff features
To ensure safety and conserve power, when the handpiece is placed in the handpiece holder, the auto sleep function will be activated and it will start cooling automatically. If the handpiece has not been removed from the handpiece holder (e.g. Using it in a rework fixture) and it has been idle for 30 minutes, auto shutoff function will be activated. It will be automatically powered off. Access to settings can be restricted by the password function.
Specifications
Station
- Power consumption AC230V：1,200W
- Temperature range 50 to 600℃
- Power consumption 30W
- Air flow 001-100% ( 5 to 115L/min. )
- Dimensions 160(W)×145(H)×220(D)mm
- Weight 1.5kg
Handpiece (Hot air)
- Power consumption AC230V：1,170W
- Total length 250mm
- Weight 180g
- *Total length and weight for handpiece are measured without cord.
- *Airflow capacity is rated as free flowing. Restrictions created by various nozzles may reduce the maximum airflow capacity.
Replacement
| Part No. | Product |
| A1438 | Pad (7.6mm dia, 5pc) |
| A1439 | Pad (5.0mm dia, 5pc) |
| A1520 | Pad (3.0mm dia, 5pc) |
| B3023 | Vacuum pipe control knob (L) with screw |
| B2300 | Heat Resistant Pad |
| B5128 | Thermocouple with 0.2mm dia connector |
| B5129 | USB Cable 1m |
| A5024 | Heating Element (220-240V) |
| B5045 | Pipe |
| B5049 | Mica with heat protection sleeve |
| C5033 | Grip Stand Assembly |
Optional Parts
| Part No. | Product |
| B5048 | Iron Holder |
| B5127 | Thermocouple with 0.1mm dia connecter |
| B5130 | Heat Resistant Tape (100 qty) |
| C5027 | Board Holder |
| B5098 | Board Clip |
| B5136 | Board Support Unit |
| B5137 | Rubber Foot |
| C5028 | Grip Fixture M (with hexagon wrench, o-ring, tray) |
| C5029 | Grip Fixture L (with hexagon wrench, o-ring) |
| A5027 | Slide Gear |
| B5138 | Positioning Unit |
| B5139 | Tray |
| B5140 | Tray Assembly |
| C5025 | Bottom Heater for FR-811 (230V) |
