FR870B-06 IR Preheater 230V

FR870B-06 IR Preheater 230V

Regular price $1,350.00 SGD
Regular price $1,880.00 SGD Sale price $1,350.00 SGD
Sale Make an Enquiry

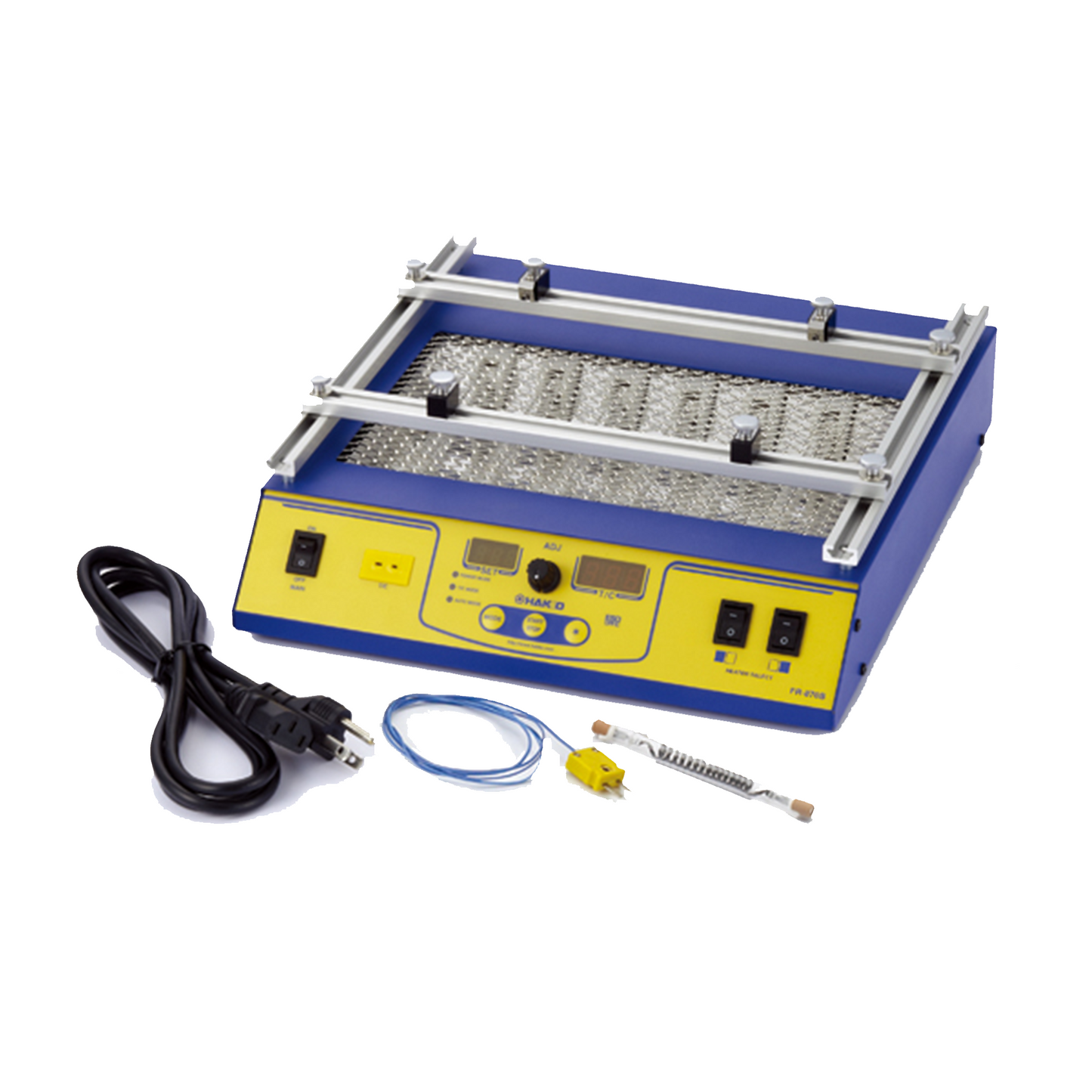

Main Unit, Thermocouple B3516, Power Cord, Heater Lamp, Instruction Manula

Availability: PRE-ORDER | LEAD TIME: 8-16 WEEKS

  • Infrared pre-heater that provides the optimal heating effect over the whole workpiece surface
  • 2 Independent switchable work grid partitions
  • Infrared carbon heater
Features

Carbon heaters lamps provide powerful support for insufficient heat when reworking and mounting post-production add-ons

Entire work surface heats rapidly for instant use and improved efficiency

  • Six carbon heaters let you preheat the whole board in next to no time after turning the power on.
  • Full-board heating and quick temperature ramping let you get the job done quickly when reworking or mounting post-production components to multilayer substrates that require greater thermal capacity.
  • As it does not contaminate the air, the HAKKO FR-870B also offers powerful support for a clean workplace environment in industrial applications.

Non-contact system can be used with double-sided boards

  • Non-contact system allows preheating of double-sided boards, which hot plates cannot handle.

Non-contact system

Set thermal profiles

  • Auto mode step-heating method (maximum of three steps/step 1-3) heats PWBs slowly and evenly, letting you transmit 100% of the heat energy from a rework system and soldering iron.
  • You'll never be forced to work with a higher set temperature due to insufficient heat again.

Board attachment system facilitates continuous work

  • Once a PWB is positioned, boards of the same dimensions can be removed or attached in a single motion. This design greatly facilitates continuous work.
Specifications

Model No. FR-870B

  • Power consumption: AC230V:1,240W
  • Operation mode: Power mode, T/C mode, Auto power mode, auto T/C mode
  • Setting range : Power mode 0 to 100%
  • Setting range : T/C mode 50 to 200ºC
  • Setting range : Set time 0-999seconds
  • Heating element: Carbon heater
  • Effective heated area: 190(W)×80(D)mm
  • Heater area dimensions: 248(W)×140(D)mm
  • Heater zone: 2
  • Temperature sensor: K-type thermocouple
  • Heater lifetime: 2,100hours
  • Heater control: Power mode : Percentage-based system, T/C mode : PID control
  • External connections: Start signal input possible
  • Dimensions: 296(W) × 100(H) × 311(D) mm
  • Weight: 3.2kg
Packing List

Unit, thermocouple (type K), power cord, heater lamp (spare), instruction manual

Accessories

Replacement Parts

Name

Specifications

A5003

Heating element, 100V-120V

A5004

Heating element, 200-240V

B3516

Thermocouple

Optional Parts

Part No.

Name

B3686

Connecting cable, FM-206-to-FR-870/FR-870B/FR-872
