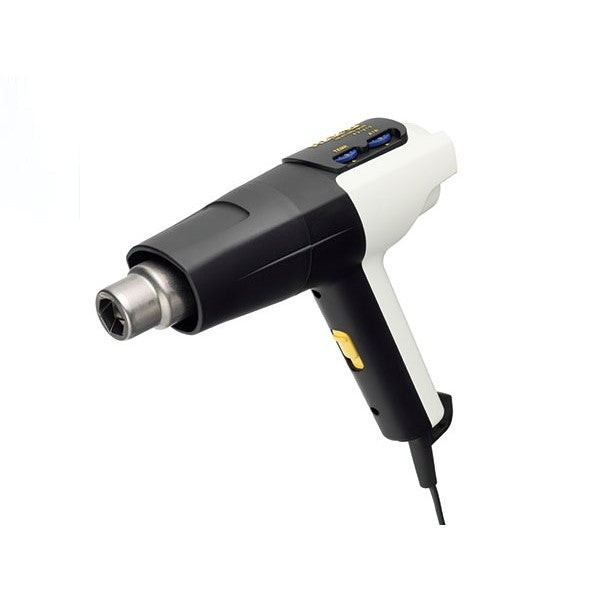

FV-310 Heat Gun 230V
FV-310 Heat Gun 230V
AVAILABILITY: PRE-ORDER | LEAD TIME: 8-16 WEEKS
- Hot air blower with variable temperature and airflow
- Stepless control on temperature and airflow for optimal settings
- High performance and long life heating element
Features
Powerful & Fine
The new heating gun with stepless control for the maximum temperature increased by 80°C and maximum airflow increased by 25% from the conventional models.
Stepless control on temperature and airflow for optimal settings
Fine control of temperature and air flow for a variety of applications contributes to improvement of work efficiency.
High performance and long life heating element
Use of ceramic insulator for greater heat storage and heating performance.
Easy replacement of heating element
It requires only a screwdriver to replace heating element.
Safety design for fall-prevention during hands-free operation
Anti-slip rubbers on the back improve stability and safety during hands-free operation. Slide button (switch), temperature and air flow knobs are positioned at where it is easy to operate even during hands-free operation.
Convenient and Hands-free
A carrying case provided allows the user to store other optional parts together with the heating gun, such as an optional stand which provides stability for hands-free application.
Usage Guide
1. Set the slide button (switch) to OFF and insert the plug of the power cord into an outlet.
* Use a power outlet rated at 5 A or greater for 220 - 240 V.
2. Turn the slide button (switch) to "Ⅱ". Hot air will come out of the pipe.
3. Turn the temperature/air flow control knobs to adjust temperature/air flow.
* The larger the number, the higher the temperature/air flow.
4. After use, turn the slide button (switch) to "Ⅰ" and allow the unit to cool down for at least 90 seconds. Before storing the heating gun, allow it to cool down for at least 5 minutes.
Packing List
FV-310 Unit, Instruction manual
Specifications
- Power consumption: 1000W
- Maximum temperature: 530ºC (80 to 530ºC continuously variable)
- Air velocity: 600m/min.
- Air flow: 0.15 to 0.25m3/min.
- Dimensions: 240(W)×190(H)×70(D)mm
- Weight: 0.6kg
- * Maximum temperature is approximate one which measured at the point 10mm from the pipe.
- * Dimensions and weight (w/o cord)
Accessories
Nozzles
|
Nozzle |
Specification |
| N70-01 | Spatula Type 20mm (Requires N70-05) |
| N70-02 | Spatula Type 62mm |
| N70-03 | Hook Type 20mm |
| N70-04 | Hook Type 40mm |
| N70-05 | Nozzle Holder |
| N70-06 | Single 12mm (Requires N70-05) |
| N70-07 | V Type, for 4mm welding rod (Requires N70-05) |
Replacement Parts
| Part Number | Product Name |
| A5041 | 220V Heating Element |
| A5043 | 230V Heating Element |
| A5042 | 240V Heating Element |
| B5154 | Fan Unit with Motor |
| B5162 | Pipe Cover |
| B5163 | Enclosure Pipe with Mica |
Optional Parts
| Part Number | Product Name |
| A1115 | Roller |
| B5166 | Stand |
