FX-1003 IH Micro Hot Tweezers / Conversion Kit

FX-1003 IH Micro Hot Tweezers / Conversion Kit

Regular price $313.00 SGD
Regular price Sale price $313.00 SGD
Sale Make an Enquiry
FX-1003

Contents

Hot Tweezers FX-1003, Iron holder FH800-83BY with Cleaning brush A5065 and Cleaning sponge A5038, Instruction Manual. *Tips not included

Availability: PRE-ORDER | LEAD TIME: 8-16 WEEKS

Can be used with:

FX-1003, the World's Smallest Class "IH Micro Hot Tweezers" that Makes Rework on 0402 Easy and Comfortable.

  • HAKKO's IH Soldering Station Provides the World Best Class Thermal Performance.
  • 4 Types of Alignment to Secure the Right Contact of Tips and Micro Components
  • Ergonomic Design for Comfortable Operation
  • Micro and Precise Tip Lineup for a Variety of Rework
  • Multifunctional Iron Holder for Convenience and Comfort

Please refer to the User Manual for detailed specifications.

Click here to shop compatible soldering tips for the FX-1003.

Packing List
Handpiece Only Part No.
Hot Tweezers* FX1003-81
*Station and tip not included

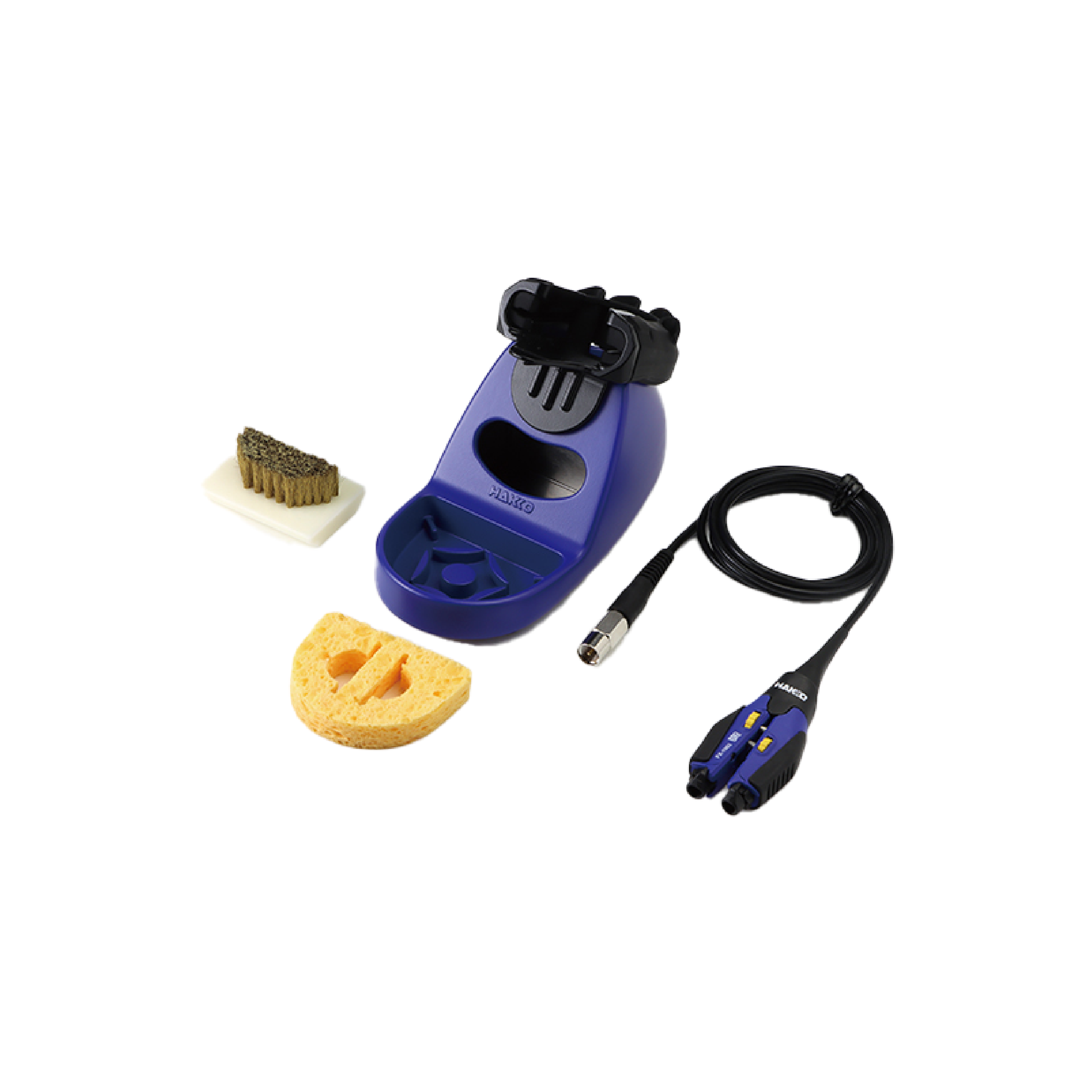

Conversion Kit Part No.
Hot Tweezers* FX1003-82
Iron holder FH800-83BY
Cleaning brush A5065
Cleaning sponge A5038
Instruction Manual -
*Station and tip not included
Features

Unique Features of HAKKO's IH Technology (PATENTED)

"Power Assist Function" makes HAKKO's IH Soldering Station different.

  • By monitoring RF output, the station detects tip temperature drop during the soldering process and then increases the output.
  • This function minimizes tip temperature drop and helps the temperature recover quickly. As a result, it can improve soldering efficiency and quality.
"BOOST Mode" for Extra Power
  • The mode is to boost tip temperature slightly.
  • It can fill out the slight temperature gap among tips and minimize the individual differences in tip temperature. Also it is useful when some extra power is needed.

Excellent thermal performance

  • The excellent thermal performance is achieved by the principle of IH (High-Frequency Induction Heating) that directly heats a soldering tip.
  • The thermal power that does not decline even with a smaller tip is very effective in micro soldering.

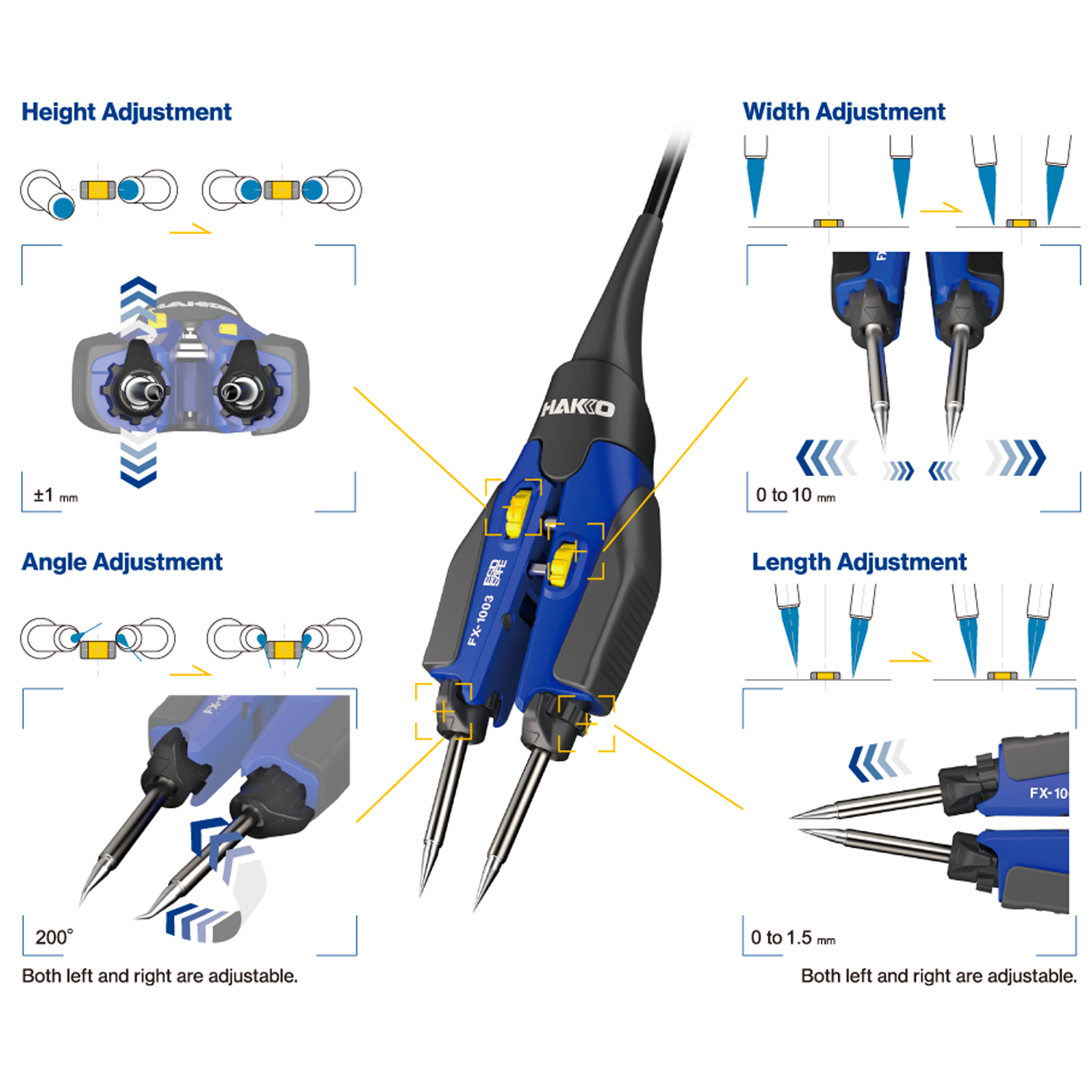

Four Types of Alignment to Secure the Right Contact of Tips and Micro Components

  • The right contact of tips and components increases heat transfer, and it improves work efficiency.

Ergonomic Design for Comfortable Operation

  • The handpiece with the compact and asymmetric design with heat-resistant covers fits the hand, gives better stability, helps reduce the burden of operation, and supports precise and accurate works.

Micro and Precise Tip Lineup for a Variety of Rework

  • The lineup of T38 series tips has a wider range than the tips for conventional tweezers and has tips to rework on 0402 components.

Multifunctional Iron Holder for Convenience and Comfort

  • Iron Holder with the AUTO SLEEP / AUTO SHUTOFF Function

IH Soldering Station with Excellent Thermal Performance

No Temperature Setting Required
Tip temperature is fixed by tip series. No setting temperature is required before use. Because there is no heating element, there is no chance of degradation of a heating element, and no calibration is required.

No Overshoot
Because tip temperature is fixed by a physical phenomenon, there is no chance of overshoot.

Specifications
  • Temperature Range - T38-02 Series: 400℃, T38-03 Series: 350℃
  • Weight: 32g (with T38-02D1)
  • Tip to ground resistance: <2Ω
  • Tip to ground potential: <2mV
  • Heating element: IH (High-Frequency Induction Heating)
  • Standard tip: T38 Series
  • Cord length: 1.3m
  • Total length: 130mm (with T38-02D1)
  • Weight: 32g (with T38-02D1)
  • * Total length and weight (w/o cord)
    Soldering Tips (T38)
    T38 Series

    Shape I

    For 350°C

    • T38-03I
    • T38-03IS

    For 400°C

    • T38-02I
    • T38-02IS

    Shape J

    For 350°C

    • T38-03J
    • T38-03JS

    For 400°C

    • T38-02J
    • T38-02JS

    Shape K

    For 350°C

    • T38-03K

    For 400°C

    • T38-02K

    Shape L

    For 350°C

    • T38-03L1
    • T38-03L2

    For 400°C

    • T38-02L1
    • T38-02L2
    Replacement Parts

    Name

    Specifications

    FX1003-82 HAKKO FX-1003 conversion kit with iron holder
    FX1003-81 Hot tweezers handpiece FX-1003
    FH800-83BY Iron Holder with cleaning sponge and cleaning brush for FX-1003
    A5065 Cleaning Brush for FH-800
    A5038 Yellow Cleaning Sponge
    A5064 Iron Cover for FX-1003

    *The HAKKO FX-100 temperature controller only is not available for separate purchase.
