- Heavy Duty Soldering Station.
- Super power with 300 W heater.
- Best used for soldering P.W.B with high heat capacity and high heat dissipation property.
- Large LED display enables viewing and operation.
- 230V, 3Core plug.
- Please choose the recommended tips for FX-8002 Soldering Iron or FX-8003 Nitrogen Soldering Iron.
- Connectable with N2 soldering iron (FX-8003) and N2 system
Features
FX-801 can provide tremendous heating performance with super power 300 W composite heater.
Light weight handpiece -approx. 50 g
- Light weight handpiece provides good workability and reduces burden in hand soldering.
Large LED display
- An LED display roughly double the size of a previous model is very easy to see.
Preset mode
- Up to 6 settings can be preset and easily called up by Up/Down buttons.
- This is a convenient function to change set temperature quickly.
Password function
- Settings can be locked from unnecessary changes by password function.
- Strict temperature control is possible.
Auto Sleep/Auto Shut-off function
- The function automatically drops tips temperature or turns off heater just by placing a handpiece in the holder.
- This minimizes oxidation and thermal stress to soldering tip.
Handles on unit body
- Handles on unit body make it easy to carry.
A wide variety of tip shapes
- In addition to regular type tips, now slim type tips are added to the tip line-up to cover a wide range of applications. The composite tip, tip integrated with composite heater, makes tip replacement very easy.
Compatible with N2 System (Option)
- Replacing an iron part (FX-8002) with an optional N2 iron part (FX-8003), it enables use of N2 system.
Specifications
Model No.: FX-801
- Power consumption: 300W
- Temperature range: 50 to 500ºC
- Temperature stability: ±5ºC at idle temperature
Station
- Output voltage: AC 29V
- Dimensions: 145(W)×107(H)×211(D)mm
- Weight: 3.9kg
Soldering Iron
- Power consumption: 260W (29V)
- Tip to ground resistance: <2Ω
- Tip to ground potential: <2mV
- Heating element: Composite heater
- Cord length: 1.2m
- Total length: 228mm (with 4BC tip)
- Weight: 50g (with 4BC tip)
- * Total length and weight (w/o cord)

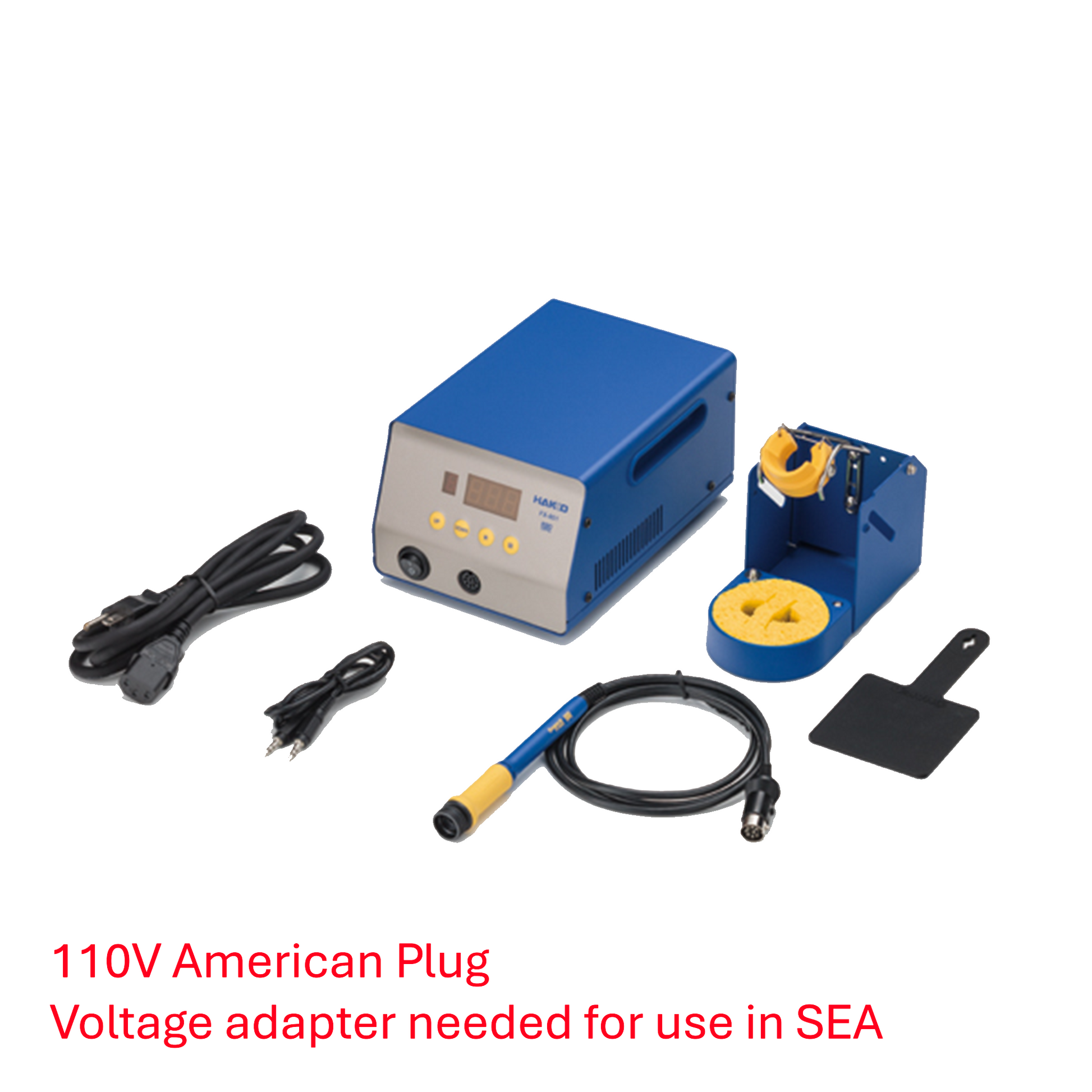

Packing List
- Station
- Handpiece (FX-8002)
- Heat resistant pad
- Power cord
- Connecting cable
- Iron holder (with cleaning wire)
- Instruction manual
Accessories
Soldering Tip
For the HAKKO FX-8002 and FX-8003, soldering iron tips are not supplied as accessories.
Please purchase T33 Series soldering iron tip separately.
T33 Series: Regular Type

T33 Series: Slim Type
T33 Regular |
|
Shape BC/C |
- T33-BC2
- T33-BC3
- T33-BC4
- T33-BC5
- T33-BC6
|
Shape D |
- T33-D24
- T33-D32
- T33-D5
- T33-D6
|
Shape Concave |
|
T33 Slim |
|
Shape BC/C |
- T33-SSBC2
- T33-SSBC3
- T33-SSBC4
- T33-SSBC5
|
Shape D |
- T33-SSD24
- T33-SSD32
- T33-SSD16
- T33-SSD6
|
Shape Concave |
|
Replacement Parts
Name
|
Specifications
|
FX8002-81
|
Soldering iron FX-8002
|
FH200-83
|
Iron holder <w/ cleaning wire>
|
B2300
|
Heat resistant pad
|
B3253
|
Connecting cable
|
599B-02
|
HAKKO 599B tip cleaner
|
Optional Parts
Part No.
|
Name
|
FX8003-81
|
Soldering iron FX-8003
|
FH200-82
|
Iron holder <w/ cleaning sponge>
|
A1519
|
Cleaning sponge * The replacement for A1536.
|
A1536
|
Cleaning sponge * Discontinued. The replacement is "A1519".
|
