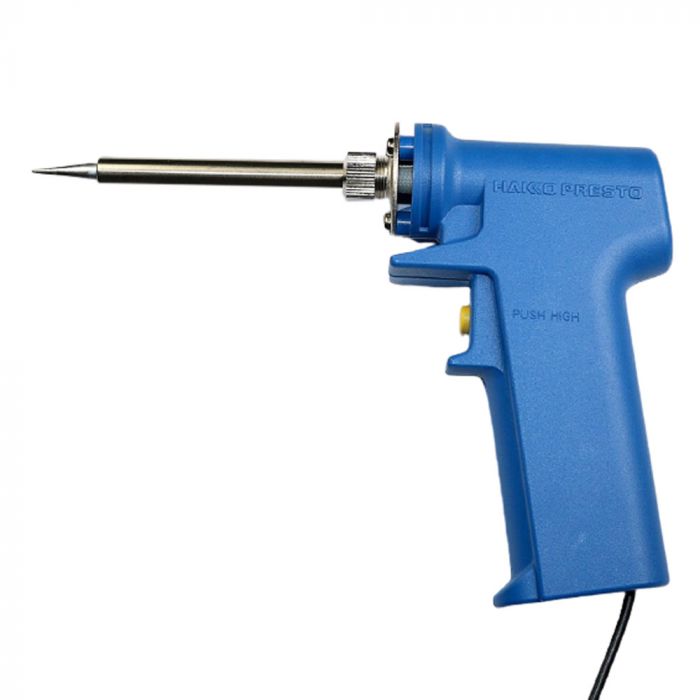

Hakko PRESTO 981I-V23 Soldering Gun 230V
Hakko PRESTO 981I-V23 Soldering Gun 230V
Contents
Presto Soldering Iron, 980-T-B Soldering Tip
Shop compatible soldering tips for 981I-V23. The PRESTO comes with a 980-T-B Tip.
The
View the User Manual to find out more!
Features
130W high-speed heatup with a boost switch
Boost switch can immediately raise power from 20W in normal operation mode to 130W, enabling high-speed heatup
Simply press the boost switch when a large amount of heat is temporarily required; for example, when quick heatup is needed (the unit becomes ready to solder within around 20 sec.) or when soldering relays and connectors.
Note: The boost switch can be used for up to 30 continuous seconds.
Specifications
- Power consumption: 20/130W (While the switch is pushed)
- Heating element: Ceramic heater
- Total Length: 160mm (excludes cord)
- Weight: 92g (excludes cord)
Accessories

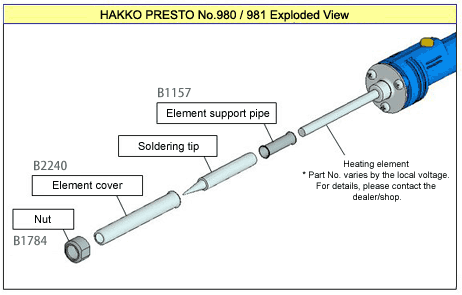

Replacement Parts
| Part Number | Product Name |
| A1370 | Heating Element for 981/985 (220V) |
| A1371 | Heating Element for 981/985 (230V) |
| B1157 | Element Support Pipe |
| B2240 | Enclosure Pipe (980/981) |
| B2564 | Enclosure Pipe (984/985) |
| B1784 | Nut |
| B2236 | Flange (2 Core) |
| B2562 | Cap |
| B2563 | Adapter |
Optional Parts
| Part Number | Product Name |
| FH300-81 | Iron Holder with Cleaning Sponge |
| 633-01 | Iron Holder with 599B |
| 633-02 | Iron Holder with Cleaning Sponge |
Soldering Tips:
