FX-805 Soldering Station (230V-240V)

• Heavy-duty soldering station with Ultra Power 400W
• A combination of high power & operability
• Newly designed iron holder for safe tip replacement
• Human error-free temperature management
• Compatible with N2 system by purchasing FX-8005 N2 iron (optional)

Instruction Manual / Parameter Settings Manual

Features

Ultra Power FX-805 That Melts even a Solder Bar Quickly

The FX-805 comes with a 400W composite heater, the highest wattage in HAKKO composite tips, to achieve rapid heating. It is best suited for soldering transformers or coils on power-supply boards or shield cases on communication devices.

The New Composite Tip

The newly developed composite tip achieves 400W Ultra Power. Its high thermal capacity improves soldering productivity to 120%* of the conventional model (*compared to FX-801 300W soldering station)

1. Improved Sensor Sensitivity
The improved sensor is set close to the tip end and measures a more accurate temperature at the soldering point.
2. The New Tip Design for Smoother Heat Transfer
The volume of the heater body is 113%* of the conventional model without a change in diameter and improves thermal conductivity (*compared to FX-801 300W soldering station)

Compact Design

Despite its 400W power, the handpiece is the lightest (approx 50g) in the industry of heavy duty soldering stations for comfortable operation. The 10%* thinner cord makes operation and handling smoother (*compared to FX-801 300W soldering station).

Newly Designed Iron Holder For Safe Tip Replacement

Removing a tip with the right groove of the attachment

Inserting a tip by using the tip insertion holder

Wireless Auto Sleep & Wireless Auto Shutoff Function

The sensor inside the handpiece detects if it is set on the holder and the station will activate auto sleep function / auto shutoff function. No connecting cable is required between the station and the iron holder, which allows for free layout. Sleep function is activated when the specified time passes after the handpiece is set on the holder

Human Error-Free Operation & Traceability in Manual Soldering

The dedicated software automatically records set temperature, calibration/off-set, and tip sensor temperature in soldering. It prevents human error in such recording.

Download the software here / User registration and Product Registration Required

New Additional Tip Shapes

T37 series has a 10 mm wide tip in the lineup, which maximizes the performance of 400W power. It is best suited for soldering large components with high thermal mass and thick wire harnesses.

Soldering Tip with V-groove to Improve Through-Hole Fill

The V-groove on the tip increases the contact area with land and component lead. As a result, it effectively transfers heat and improves through-hole fill, soldering quality and productivity

Compatible with N2 System (Optional)

Replacing an iron part (FX-8004) with an optional N2 iron part (FX-8005) allows for use of N2 system. N2 gas heated inside soldering iron is discharged from the tip end and it reduces the oxidation of tips. It also improves solderability with its preheating effects.

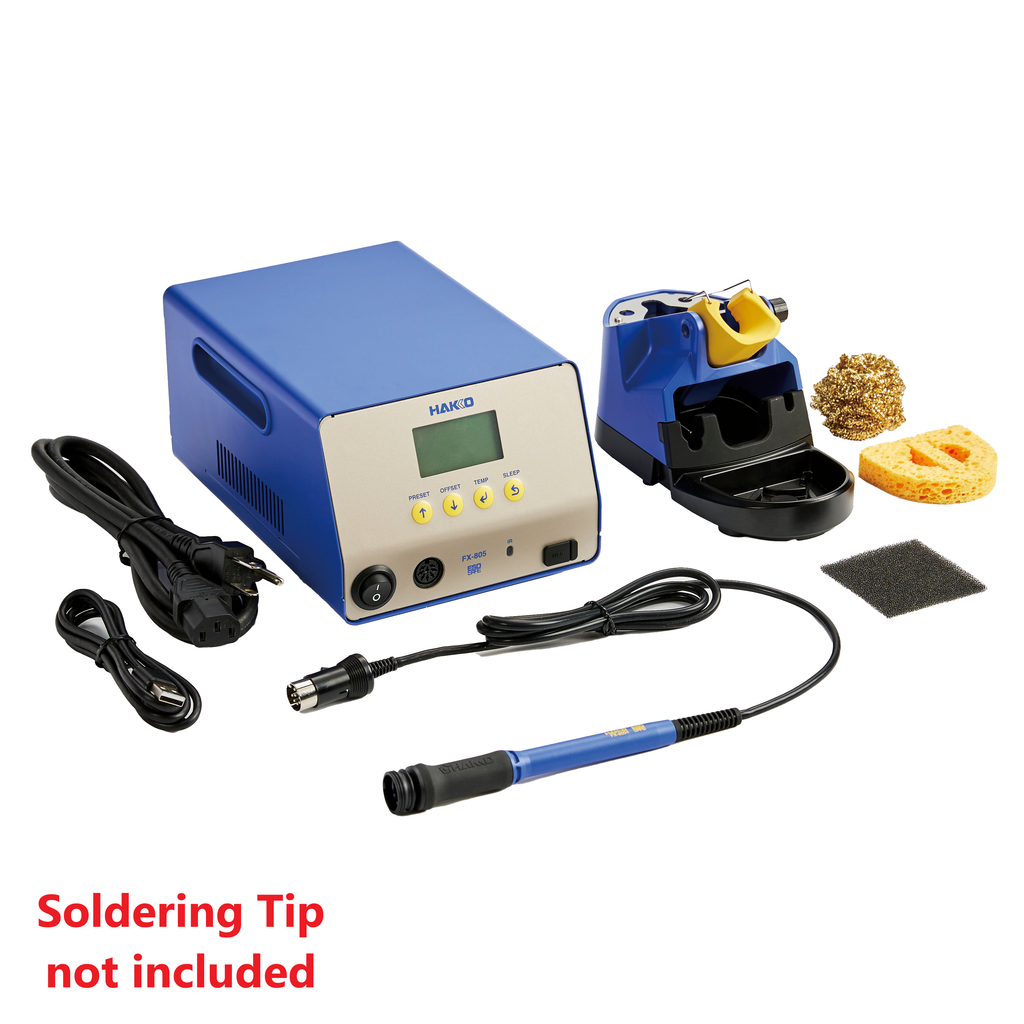

Packing List

Specifications

• Model No.: FX-805
• Power consumption: 460 W
• Temperature range: 50 to 500℃
• Temperature stability: ±5℃ at idle temperature

Station

• Output voltage: AC 30 V
• Dimensions: 143 (W) × 107 (H) × 218 (D) mm
• Weight: 3.9 kg

Soldering Iron

• Power consumption: 390 W (30 V)
• Tip to ground resistance: ＜2 Ω
• Tip to ground potential: ＜2 mV
• Heating element: Composite heater
• Cord length: 1.2 m
• Total length: 244 mm (with T37-D24 tip)
• Weight: 54 g (with T37-D24 tip)

*Total length and weight are measured without cord.

Soldering Tips (T37)

Soldering Tips are not included. Kindly purchase them separately.

• T37 Series (400W)
• T33 Series (300W) are also compatible with FX-805.

Replacement/Optional Parts

Optional N2 System
