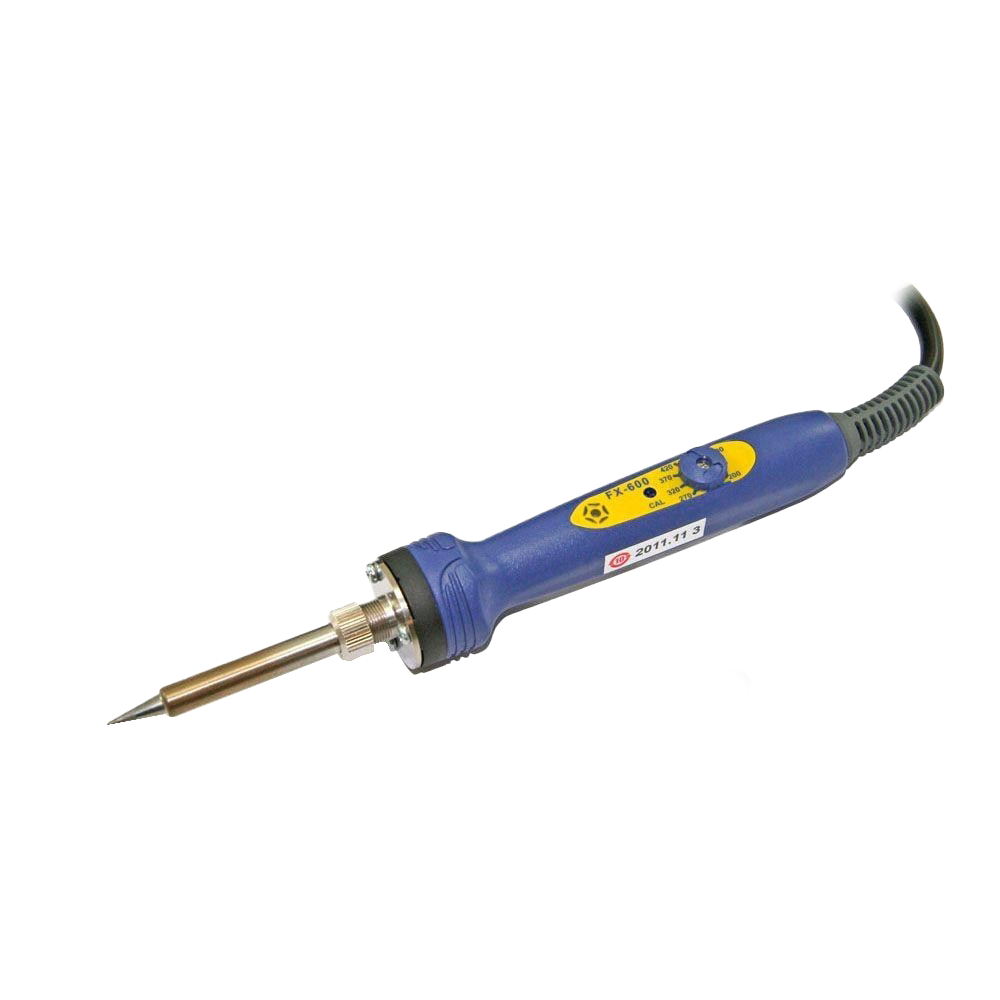

Hakko FX-600 Temperature Adjustable Soldering Iron (230V-240V)

Hakko FX-600 Temperature Adjustable Soldering Iron (230V-240V)

$84.80 SGD
$84.80 SGD
Sale Sold out

Shop compatible tips for FX-600

  • Adjustable temperature range 200-500ºC
  • Replacement tips selectable from more than 30 types
  • Best suited for soldering of electronic components, IC/LED and PWB
    Packing List
     Packing List Part No.
    Unit -
    Lock Key B3707
    Standard Tip T18-B
    Features

    Superior heat conductivity
    T18 series soldering tips feature an redesigned appearance and internal structure that deliver improved heat conductivity. Use these soldering tips to achieve great heat recovery without increasing power consumption.

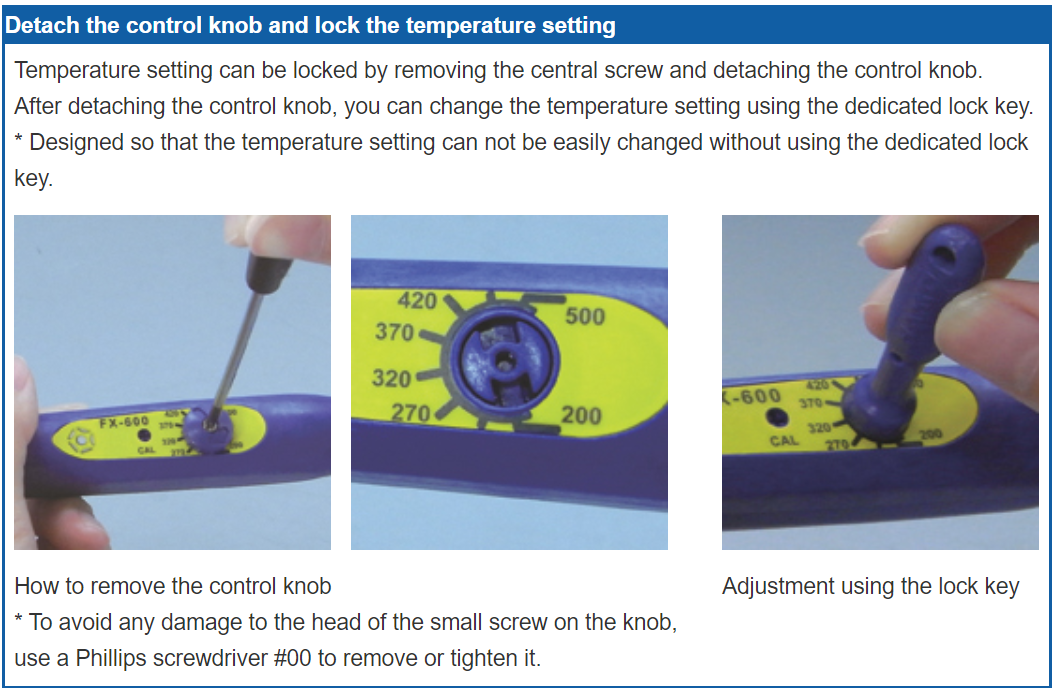

    Adjust the temperature easily with the control knob
    Features a temperature controller built into the grip. Easily adjust the temperature with a simple turn of the knob. Turn CAL to have more accurate temperature

    Easy Conversion
    Convert FX-600 to a high heat capacity FX-601 using interchangeable parts! Reduce costs by converting to either model using interchangeable parts (Tip enclosure with Nut/Soldering Tip).

    FX600 temperature control

    Specification
    • Power consumption: 50W
    • Temperature range: 200 to 500ºC
    • Temperature stability: ±1ºC at idle temperature
    • Tip to ground resistance: <2Ω
    • Tip to ground potential: <2mV
    • Heating element: Ceramic heater
    • Total length: 233mm (with B tip), excludes cord
    • Weight: 61g (with B tip), excludes cord
    Soldering Tips
    T18 Series
    Shape BC/C T18-C05 Shape-0.5C, T18-C08 Shape-0.8C, T18-C1 Shape-1C, T18-C2 Shape-2C, T18-C3 Shape-3C, T18-C4 Shape-4C, T18-C5 Shape-5C, T18-S6 Shape-S6
    Shape BC/C Tinned cut surface only. T18-CF1 Shape-1C, T18-CF15 Shape-1.5C, T18-CF2 Shape-2C, T18-CF3 Shape-3C, T18-CF4 Shape-4C, T18-CSF25 Shape-2.5CS
    Shape B T18-B Shape-B, T18-BL Shape-BL
    Shape B Narrow pitch soldering type (Shape S): T18-S4 Shape-S4, T18-SB Shape-SB
    Shape D T18-D08 Shape-0.8D, T18-D12 Shape-1.2D, T18-D16 Shape-1.6D, T18-D24 Shape-2.4D, T18-D32 Shape-3.2D, T18-DL12 Shape-1.2DL, T18-DL2 Shape-2DL, T18-DL32 Shape-3.2DL, T18-S3 Shape-S3, T18-S9 Shape-S9
    Shape I T18-I Shape-I
    Shape J T18-BR02 Shape-0.2BR
    Shape K T18-K Shape-K

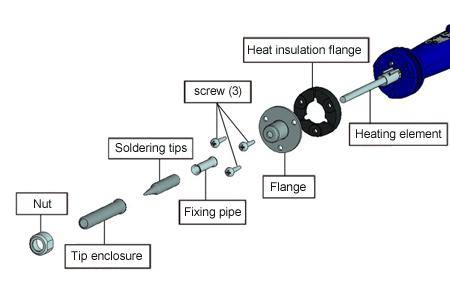

    Replacement Parts
    Part Number Product Name
    A1601 Heating Element, 220-240V
    B3707 Lock Key
    B3694 Knob with Screw
    B1785 Nut
    B3469 Enclosure Pipe
    B3706 Fixing Pipe

    Optional Parts

    Part Number Product Name
    B3720 Nut and Enclosure Pipe* to convert FX-600 to FX-601
    FH300-81 Iron Holder with Cleaning Sponge
    633-01 Iron Holder with 599B
    633-02 Iron Holder with Cleaning Sponge
    605M Hakko 605 Iron Cover (m). Heat and Fire Resistant.
