FR701-67 Repair System 230V

• Powerful Rework Station
• Safer and more secure rework operation
• with upgraded soldering and desoldering tools
• 2-in-1 unit for space saving
• Compatible with N₂ system by purchasing N2 iron (FX-8802) as an optional accessory

Click to shop compatible tips and nozzles:

Features

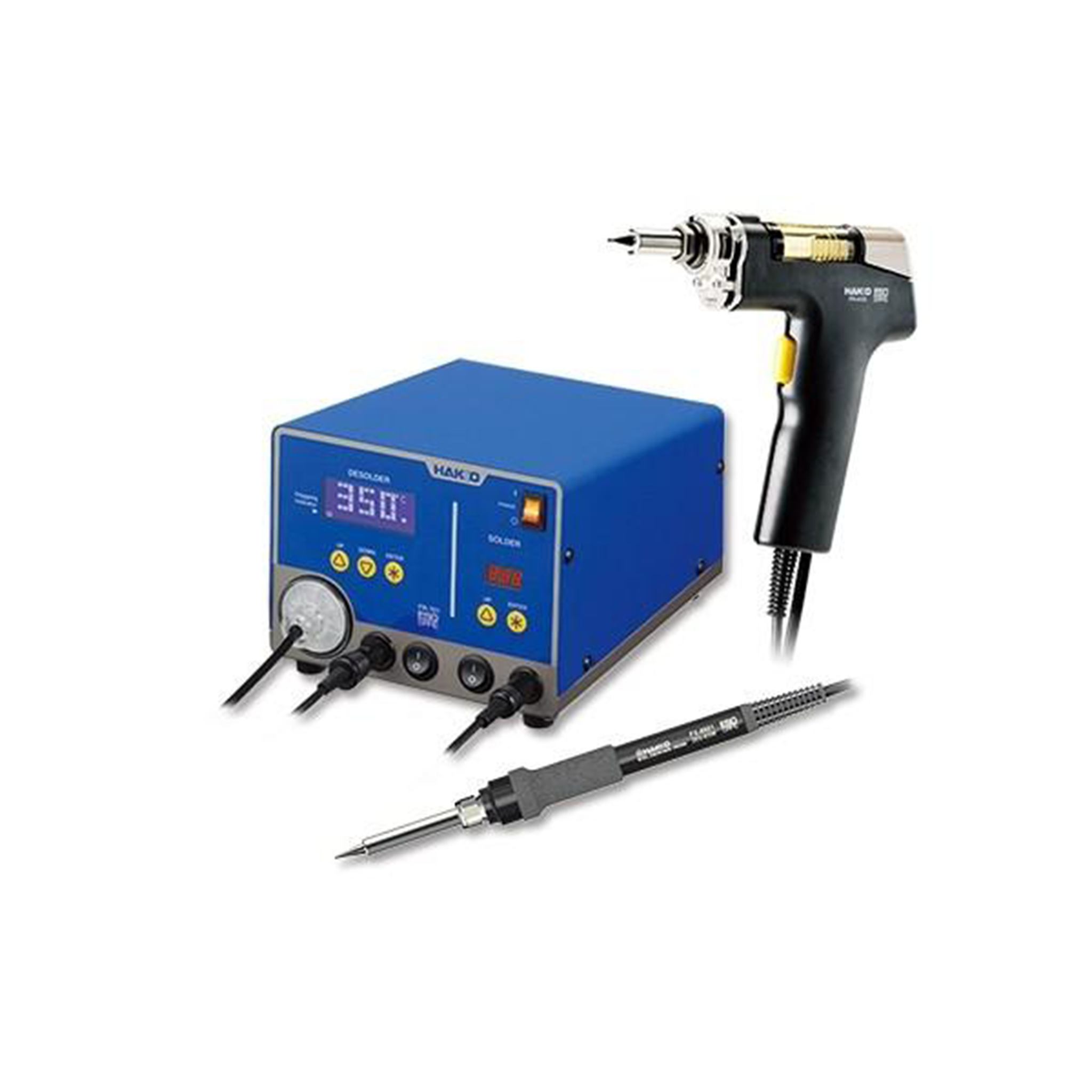

Dual function rework station with FR-4103, 140W high power desoldering gun, and FX-8801, soldering iron, 2-in-1 unit for space saving.

6 applications for a variety of soldering and desoldering works

• Besides FR-4103, 140W desoldering gun, and FX-8801, soldering iron, 4 more applications are compatible with FR-701.
• Tips (T18 and T19 series) and nozzles (N61 series) deliver excellent cost efficiency.

High-power Desoldering gun HAKKO FR-4103

• Increasing the power to 140 W from 50 W of our previous models (HAKKO 474・475), it can make it easy to desolder on multi-layer PWB which was never an easy job, and it can also shorten the process time.
• A wide selection of nozzle, with the addition of new types, is available for a variety of desoldering works.
• Long type nozzles for narrow space
• Oval shape nozzles for flat terminals
• SS type nozzles for micro land-patterns

Soldering iron HAKKO FX-8801/FX-8805

• Thermal conductivity has been increased by reviewing external configuration and internal structure of 900 tip series.

N2 soldering iron HAKKO FX-8802

• The N2 gas runs into the nozzle assembly and covers over the soldering tip.
• It prevents the soldering tip and the heater from being readily oxidized and performs great role as a preheating.
• Two effects of N2 system, preventing oxidation or preheating effect, can improve soldering defects such as bridging, protrusion icicle, insufficient solder filling in PTH, etc.

One-hand Manual-solder-feed iron HAKKO FX-8803

• Solder and feed with one hand
• Feed a set amount of solder with one hand
• Manual feed system is perfect for cellular manufacturing.
• Soldering work can be conducted at the pace of the operator.
• T18 tips series are compatible with this application.

SMD Hot Tweezer HAKKO FX-8804

• Direct heating—less influence upon surrounding components on crowded boards.
• Easily removes SMD chips and flat packages up to 25mm.
• The collet allows easy replacement and alignment of the tips.

Specifications

Model No. FR-701(Desoldering tool: FR-4103)

Power consumption: 260W

Station

• Dimensions: 190(W)×140(H)×220(D)mm
• Weight: 6.2kg

 Station (Soldering)

• Output voltage: AC 26V
• Temperature range: 50 to 480ºC
• Temperature stability: ±1ºC at idle temperature (When set to 200 to 480ºC)

Station (Desoldering)

• Output voltage: AC 24V
• Vacuum generator: Vacuum pump, double cylinder type
• Vacuum pressure: 80kPa (600mmHg)
• Suction flow: 15L/min.
• Temperature range: 330 to 450ºC
• Temperature stability: ±5ºC at idle temperature

 Soldering iron

• Power consumption: 65W (26V)
• Tip to ground resistance: <2Ω
• Tip to ground potential: <2mV
• Heating element: Ceramic heater
• Standard tip: Shape-B (No.T18-B)
• Cord length: 1.2m
• Total length: 222mm (with B tip)
• Weight: 52g (with B tip)

Desoldering Gun

• Power consumption: 140W (24V)
• Nozzle to ground resistance: <2Ω
• Nozzle to ground potential: <2mV
• Heating element: Composite heater
• Standard nozzle: Φ1.0mm S type (No.N61-05)
• Cord length: 1.2m
• Total length: 168mm (with Φ1.0mm S type nozzle)
• Weight: 190g (with Φ1.0mm S type nozzle)

* The suction flow is measured at the filter case suction port of station.
* Total length and weight (w/o cord, hose)

Accessories

Soldering Tip
