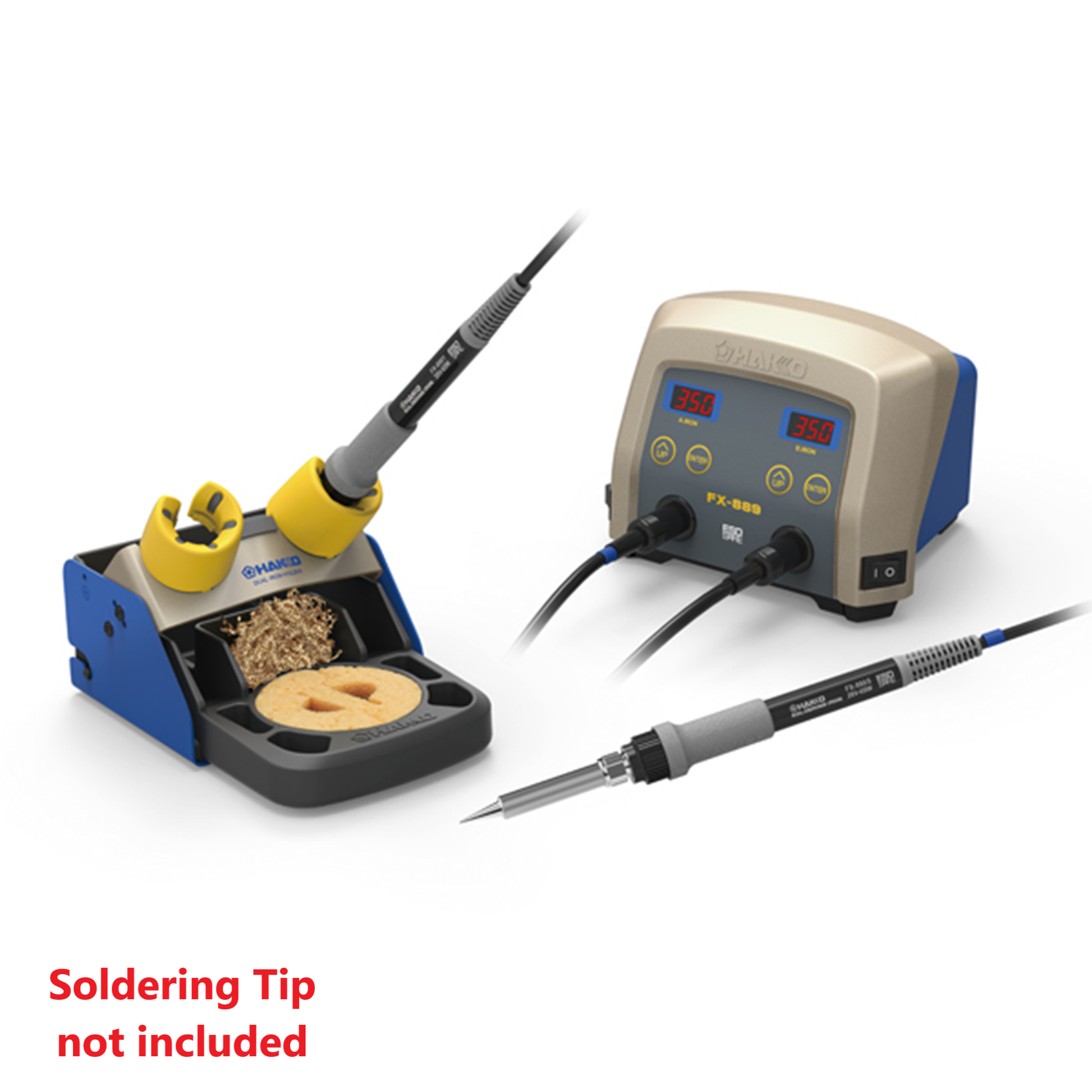

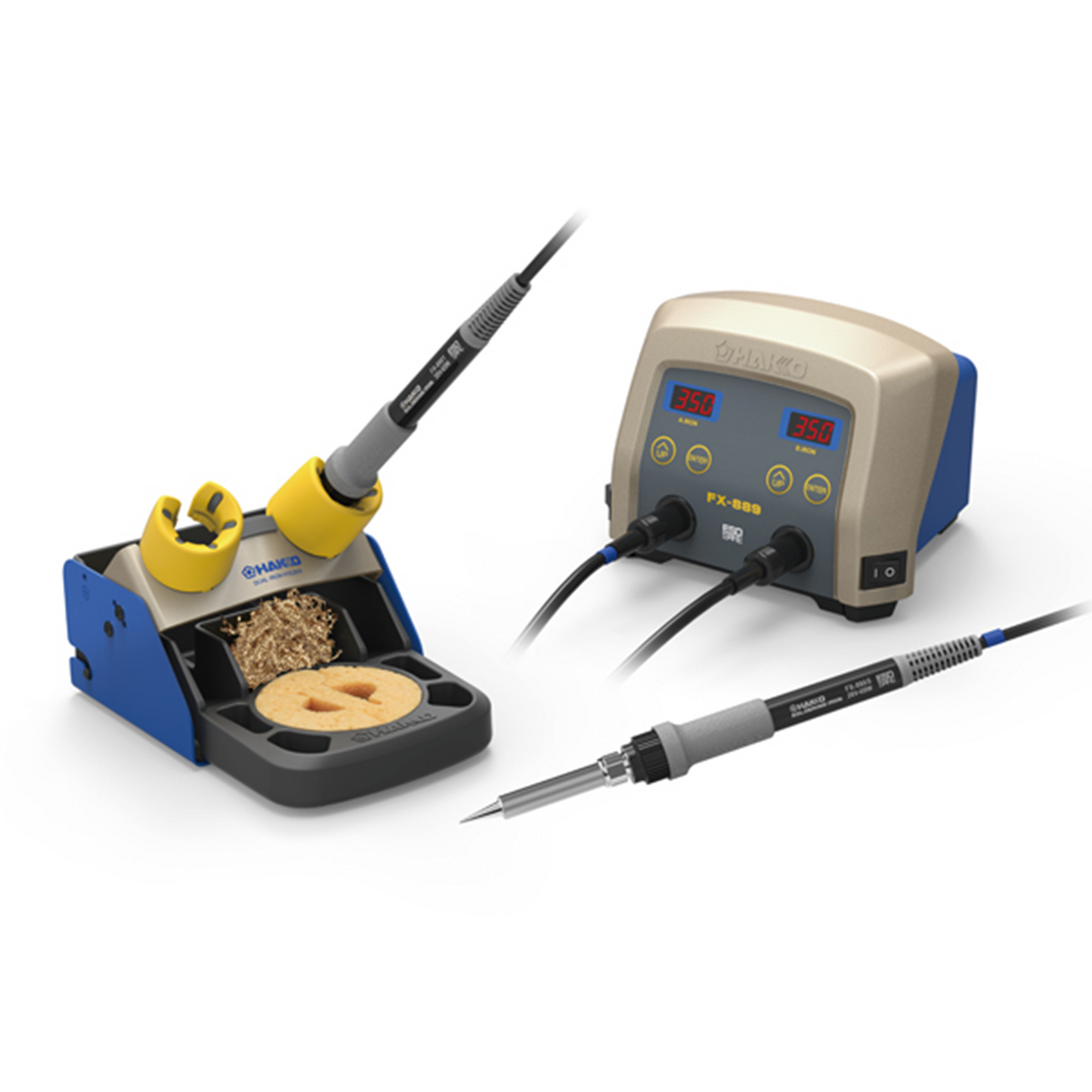

- Dual port station allows 2 handpieces to work simultaneously
- Many functions - Adjust mode, Preset Mode, Password function
- N2 iron (FX-8802) as an optional accessary
Please refer to the User Manual for detailed specifications.
Packing List
| Station |
FX-889 |
| Handpiece |
FX8801-01 |
| Iron Holder (with cleaning sponge, cleaning wire and rubber plate) |
FH801-81 |
| Color Band (2 pieces) |
B5125 |
| Power Cord |
- |
| Instruction Manual |
- |
Features
FX-889 can make a wide variety of handpiece combinations.
The HAKKO FX-889 has 2 ports to support a variety of handpieces such as soldering irons of different power profile, gun type iron, tools for SMD rework.
Great cost performance
Excellent thermal conductivity
T18 and T19 tip series are designed to have improved thermal conductivity from their previous models by reviewing both external and internal structures.
Digital display
Digital display shows setting temperature at a glance.
Password function
Settings can be locked using a password to prevent them from being changed unexpectedly.
Preset mode
This feature is very convenient when you want to change the set temperature to suit a particular workpiece, component, or tip shape. Simply select the desired temperature from a selection of preset temperatures registered in advance. (Up to 5 preset temperatures can be registered.)
Preset mode can save your trouble and improve workability.
Adjustment mode
Temperature adjustment* is an essential part of any strict quality control system. With adjustment mode, what used to be a troublesome procedure is now as simple as entering the measured tip temperature to FX-889.
User-Friendly Design
1. Space-saving design
The reduced foot print is smaller than 2 of FX-888D and its iron holder.
Efficient setup is available even on smaller workbench.
2. Power-saving design
Independent switches cut the power for each iron when not in use.
Power-saving design minimizes standby electricity.
3. Superior operability
Four buttons were symmetrically placed at the both sides on the front panel. The two buttons on each side allow simple and intuitive operation.
A color band can be attached to the handle, and this makes it possible to see at a glance which side it is connected to.
4. Rich functions of iron holder
Convenient pockets to stock soldering tips
Three different ways for tip cleaning with provided cleaning tools
Simple and easy cleaning of iron holder inside by removing holder base
Specifications
Model No. FX-889
- Power consumption: 135W
- Temperature range: 50 to 480ºC
- Temperature stability: ±1ºC at idle temperature (When set to 200 to 480ºC)
Station
- Output voltage: AC 26V
- Dimensions: 157 (W) × 121 (H) × 149 (D) mm
- Weight: 2.1kg
Soldering Iron
- Power consumption: 65W (26V)
- Tip to ground resistance: <2Ω
- Tip to ground potential: <2mV
- Heating element: Ceramic heater
- Standard tip: Shape-B (No.T18-B)
- Cord length: 1.2m
- Total length: 217mm (with B tip)
- Weight: 46g (with B tip)
- * Total length and weight (w/o cord)
Replacement Parts
|
Name
|
Specifications
|
|
FX8801-01
|
Soldering iron FX-8801 65W(26V) with B tip
|
|
A1560
|
Heating element 65W (26V)
|
|
B1785
|
Nut
|
|
B3469
|
Enclosure pipe
|
|
B2022
|
Nipple
|
|
B5125
|
Color band (qty 2)
|
|
FH801-81
|
Iron holder <w/ cleaning sponge, cleaning wire>
|
|
A1519
|
Yellow cleaning sponge
* The replacement for A1536.
|
|
A1561
|
Cleaning wire for FH-800
|
Optional Parts
|
Part No.
|
Name
|
|
FX8802-01
|
Soldering iron FX-8802 65W(26V) with B tip for N2 Soldering
|
|
FX8803-02
|
Soldering gun FX-8803 65W (26V) with 3CF tip
|
|
FX8803-03
|
Soldering gun FX-8803
|
|
FX8803-04
|
Soldering gun FX-8803
|
|
FX8804-02
|
SMD hot tweezer FX-8804 65W (26V) with 2L tip
|
|
FX8804-03
|
SMD hot tweezer FX-8804
|
|
FX8804-04
|
SMD hot tweezer FX-8804
|
|
FX8805-01
|
Soldering iron FX-8805 65W (26V) with B tip for L type soldering
|
|
C1437
|
Iron holder with cleaning sponge for 951, 952, 958, 959 (Discontinued) and FX-8803
|
|
FH800-04BY
|
Iron holder with cleaning sponge for FX-8804
|
FX-8803 needs to sit on a dedicated iron holder No.C1437.
FX-8804 needs to sit on a dedicated iron holder No.FH800-04BY.
