FX-888D Soldering Station (110V, US Plug)
FX-888D Soldering Station (110V, US Plug)
Regular price
$192.60 SGD
Regular price
$266.00 SGD
Sale price
$192.60 SGD
Unit price
per
Contents

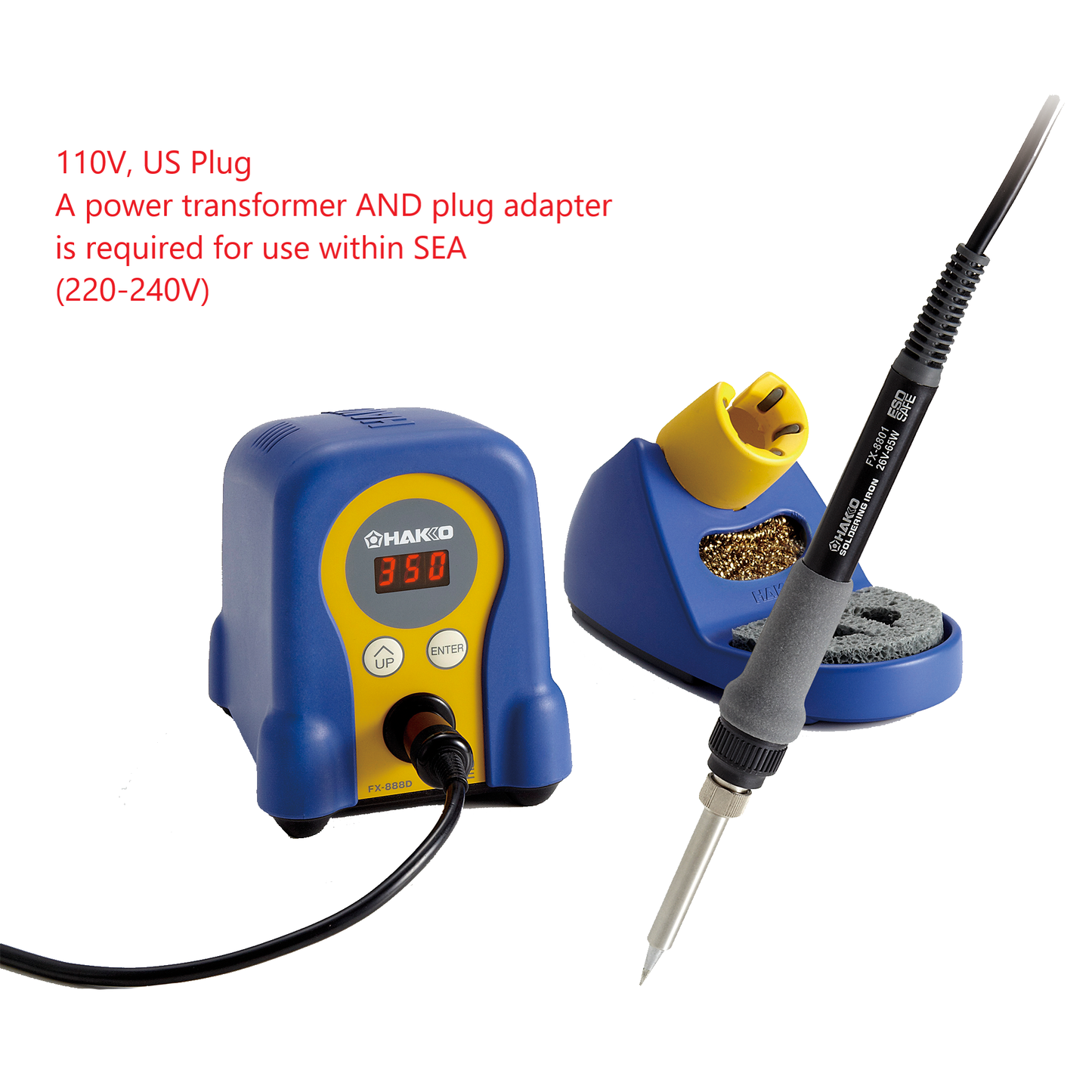

Main unit (FX-888D), FX-8801 Soldering Iron, T18-B Soldering Tip, FH800-03BY Iron Holder, and Instruction Manual
Can be used with
This item is 110V and cannot be used in Singapore/SEA without a necessary transformer.
Please refer to the User Manual for detailed specifications.
Features
- The
Hakko FX-888D is a digital model in an analog-model price bracket - Features: Adjustment mode, Preset mode, and Password function.
- Separable tip/heater design provides superior cost performance.
- 230V, 3Core Plug
- Deliver excellent thermal recovery by using T18 series tips to ensure high heat conductivity.
- Comes with a T18-B Soldering Tip.
1. Excellent thermal recovery
- Heater output has been increased by 30% compared to that of the conventional models
HAKKO 936/937. TheHakko FX-888D delivers excellent thermal recovery by using T18 series tips for their terrific heat conductivity.
This allows soldering at a lower set temperature and reducing the thermal impact on components as well as tip oxidation that can shorten tip life. -
Thermal recovery graph
Rise time to 350°C is 20 seconds faster and tip temperature drop is reduced during continuous work. -
HAKKO FX-888D performance comparison graph with conventional stations
Able to shorten the time required for the same work and improve work efficiency significantly.
2. Designed to be User-Friendly
-
Small footprint
Compact station body requires a space of only 100 (W) x 120 (D) mm. What's more, points that come into contact with the floor are positioned as close to the outer edge of the body as possible to improve stability and make the station difficult to fall over. -
Simple and easy operation
With only two operation buttons of UP and ENTER in the center, operation is simple and easy. Even if you're not familiar with operation of machines, you can operate it without difficulty. -
Iron holder with full of functions
An iron holder of the same color of a soldering station comes as a set. The highly functional iron holder not only improves ease of use, but also brings a sense of visual consistency to the work environment.
3. Strict temperature management
-
Digital display
The FX-888D's digital display makes it easy to check the set temperature at a glance.
-
Password function
Settings can be locked using a password to prevent them from being changed unexpectedly. Of course, it is possible to restrict all setting changes or prevent users from switching to particular modes. It allows you to choose a style of usage best suited for your worksite. -
Preset mode
This feature is very convenient when you want to change the set temperature to suit a particular workpiece, component, or tip shape. Simply select the desired temperature from a selection of preset temperatures registered in advance. (Up to 5 preset temperatures can be registered.) Preset mode can save your trouble and improve workability.
-
Adjustment mode
Temperature adjustment* is an essential part of any strict quality control system. With adjustment mode, what used to be a troublesome procedure is now as simple as entering the measured tip temperature to FX-888D.
*Adjust the tip temperature to match the set temperature in case that there is a difference between those temperatures due to tip shape, heater replacement, or other factors.
Specifications
|
Model No. |
FX-888D |
|
Power Consumption |
70W |
|
Temperature range |
50 to 480ºC |
|
Temperature stability |
±1ºC at idle temperature (When set to 200 to 480ºC) |
Solder Station
| Output voltage | AC 26V |
| Dimensions | 100(W)×120(H)×120(D)mm |
| Weight | 1.2kg |
Soldering Iron
| Power Consumption | 65W (26V) |
| Tip to ground resistance | <2Ω |
| Tip to ground potential | <2mV |
| Heating element | Ceramic heater |
| Standard tip | Shape-B (No.T18-B) |
| Cord length | 1.2m |
| Total length | 217mm (with B tip) |
| Weight | 46g(with B tip) |
* Total length and weight (w/o cord)
Replacement Parts
| Part No. | Name |
| FH800-03SV | Iron holder with cleaning sponge, cleaning wire (Silver) |
| FH800-03BY | Iron holder with cleaning sponge, cleaning wire (Blue and Yellow) |
| FX8801-01 | Soldering iron FX-8801 |
| A1560 | Heating Element |
| B1785 | Nut |
| B2022 | Nipple |
| B3469 | Enclosure pipe |
| A1559 | Cleaning sponge for FH-800 |
| A1561 | Cleaning wire for FH-800 |
Optional Parts
|
Part No. |
Name |
|
Soldering iron FX-8802 |
|
|
Soldering gun FX-8803 |
|
|
FX8803-03 |
Soldering gun FX-8803 |
|
FX8803-04 |
Soldering gun FX-8803 |
|
SMD hot tweezer FX-8804 |
|
|
FX8804-03 |
SMD hot tweezer FX-8804 |
|
FX8804-04 |
SMD hot tweezer FX-8804 |
|
Soldering iron FX-8805 |
|
|
Rubber cleaner |
|
|
Iron holder with cleaning sponge for 951, 952, 958, 959 (Discontinued) and FX-8803 |
|
|
Iron holder with cleaning sponge for FX-8804 |
Soldering Tips:
T18 Series
